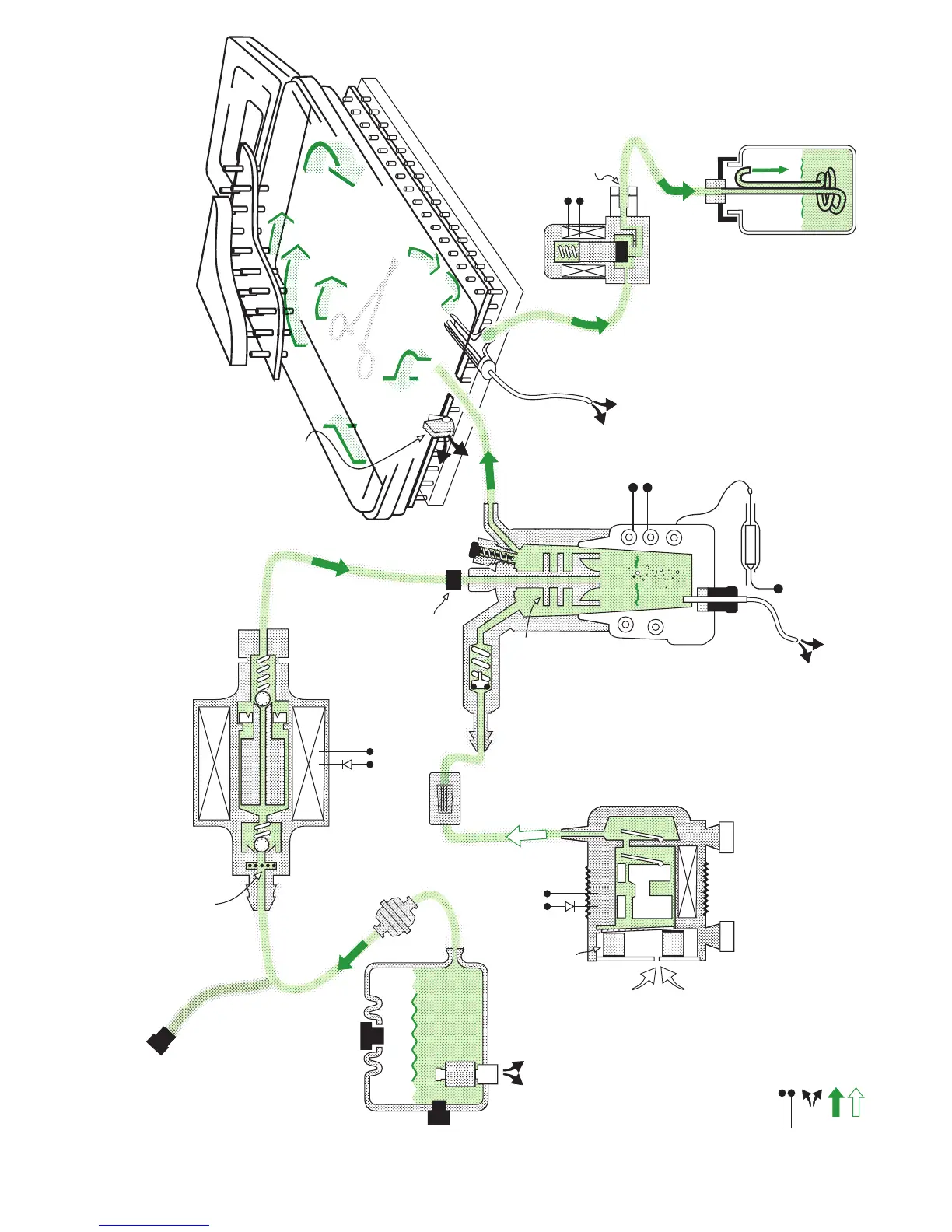

14. STATim Operational Diagram
WATER RESERVOIR
WATER PUMP
COMPRESSOR
BOILER
WASTE BOTTLE
EXHAUST SOLENOID VALV E
CASSETTE
FILTER
ORIFICE
MICROSWITCH
ARMATURE
PUSH FITTING
CHECK VALV E
DIFFUSER
FILTER
WATER QUALITY SENSOR
IN LINE FILTER
DRAIN TUBE
FLOAT SWITCH
TEFLON TUBING
CASSETTE THERMOCOUPLE
BOILER THERMOCOUPLE
SAFETY
PRV
THERMAL
FUSE
AIR & CONDENSATE OUT
LEGEND
FLUID FLOW
AIR FLOW
110 VAC / 60Hz OR 220 VAC 50Hz
INPUT TO MICROPROCESSOR
STEAM IN
