SciCan Statim 5000 - Removing the isoplate from the armature-isoplate

Page 210
STAT IM 2000/2000S Service Guide
96-106775 Rev 5.0
10. Armature, Isoplate, and Probe Bracket and Chamber Thermocouple
Removing the isoplate from the armature-isoplate
The Isoplate is a plastic box secured inside the armature. It is designed to hold and insulate the

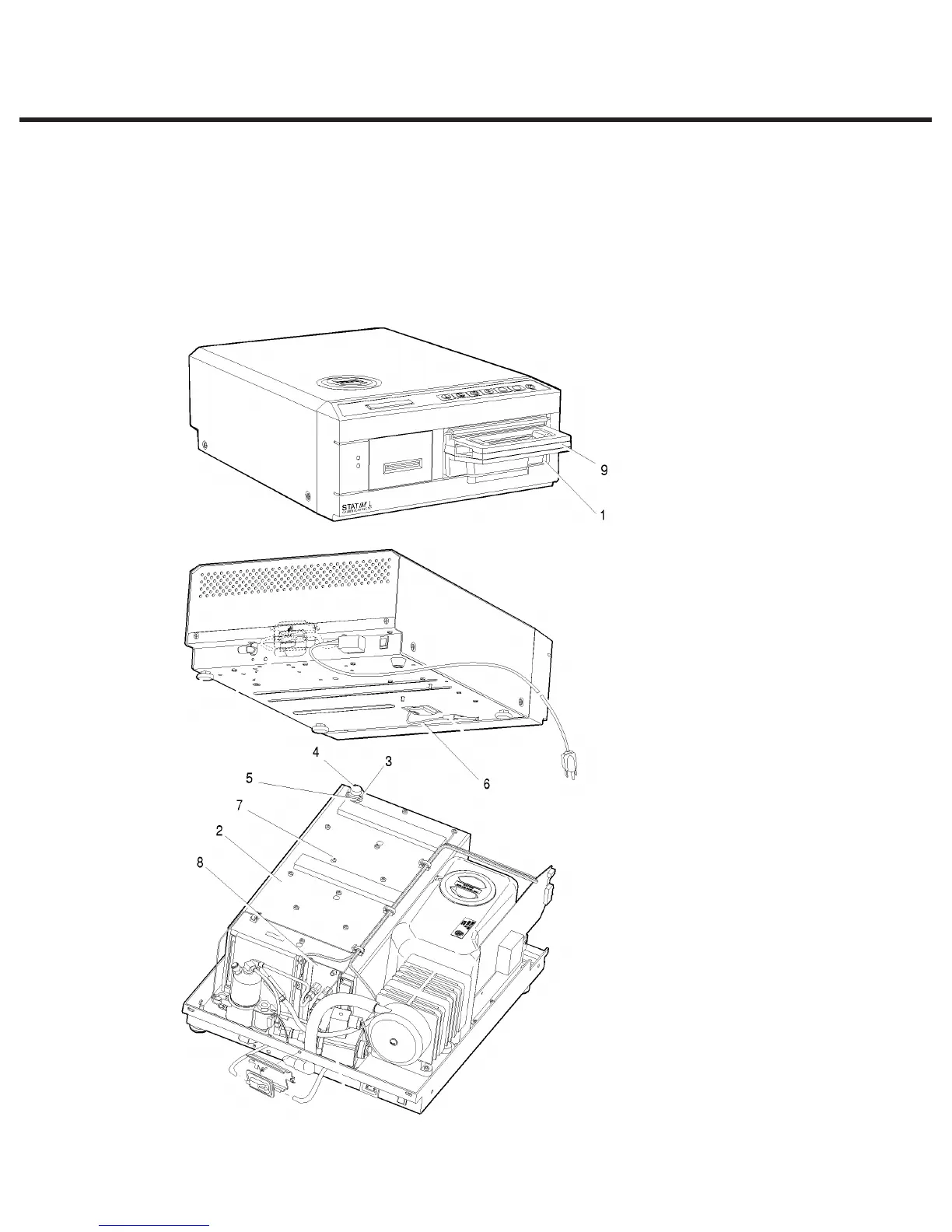

1. Isoplate
2. Armature
3. Three screws for
bubble level
4. Bubble level
5. Bubble level base
6. Drain tube
7. Screws with washers
8. Probe bracket gasket
9. Cassette
Figure 2
STATIM 5000/5000S/5000 G4 Service Guide
