8. Water Pumps, Reservoir, and Compressor
STATIM 5000/5000S/5000 G4 Service Guide
1. Rubber Tube (cylindrical air
filter only) (Figure 26)
2. Compressor
3. Steam Generator Check Valve
4. Plastic Compression Nut
(Figure 26)
5. Rubber Tube (with bacteria-
retentive air filter)
6. Bacteria-retentive Filter Input
7. Transparent Rubber Tube
(Figure 26)
8. Air Filter Fitting
9. Cable Tie
10. Mounting Screws
11. Compressor Bracket
12. Chassis
13. Controller Board
14. Cable Ties (not shown)
15. Compressor Leads
16. Transducer Connector
17. Transducer
18. Ground Wire

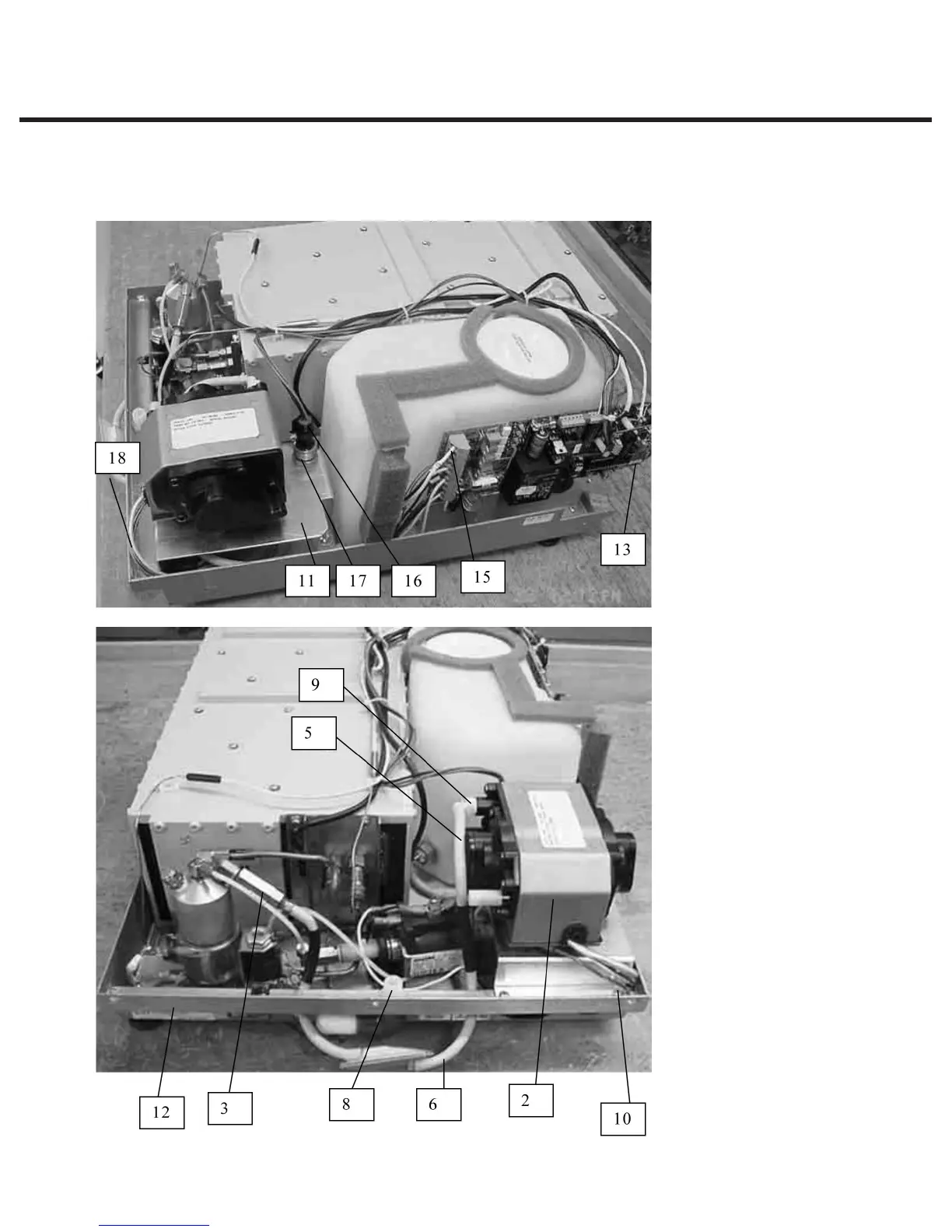

Figure 27
To Next Page
