1. Identifying STAT IM 5000 Units
STATIM 5000/5000S/5000 G4 Service Guide

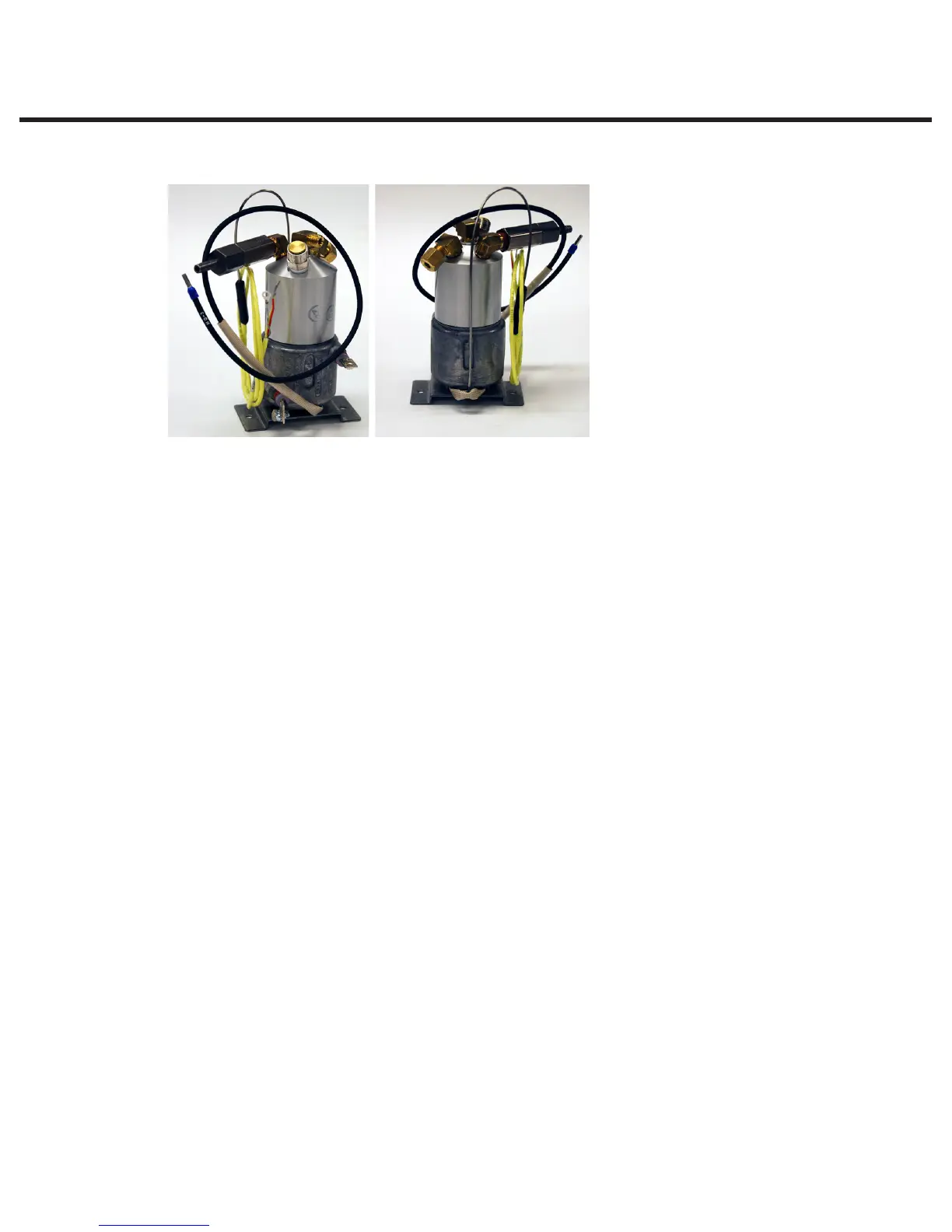

Aluminum steam generator with external thermocouple, a.k.a. ‘ALEX’ boiler (2005 – present):
Typical features:
• 43.5 p.s.i. pressure relief valve (PRV)
(ring pull on S models, no ring pull on
non S models)
• Thermocouple clamped to underside
of steam generator
• Blanking plug in the side of steam
generator in original thermocouple
position
• Software required to drive this steam
generator is R5xx for revision 6 PCB
and R6xx for revision 7 PCB
