STAT IM 2000/2000S Service Guide
96-106775 Rev 5.0

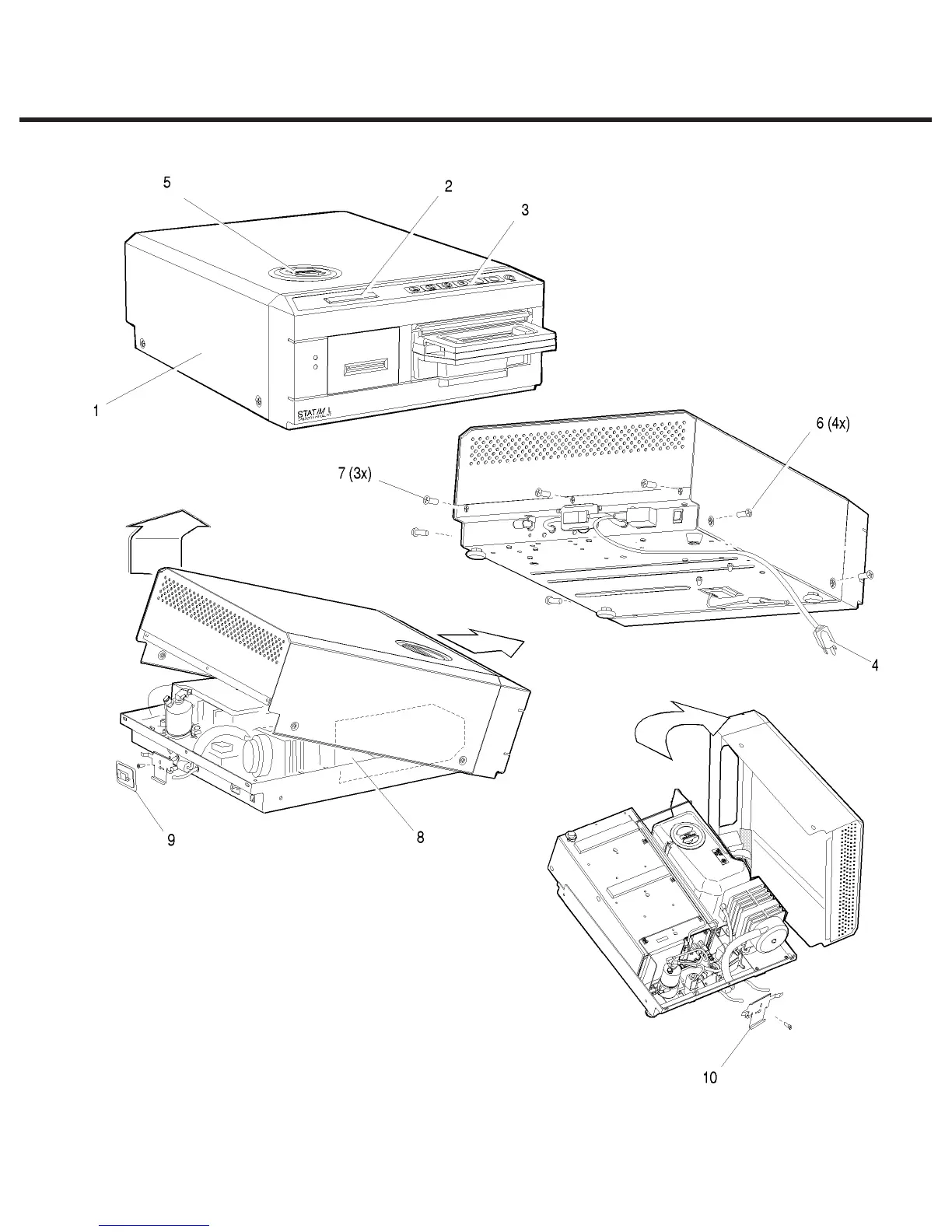

6. Cover Assembly
Figure 1
STATIM 5000/5000S/5000 G4 Service Guide
1. cover
2. LCD
3. keypad
4. power cord (not shown)
5. reservoir cap
6. screws for side of unit (both sides)
7. screws with lockwashers
8. Controller Board
9. bacteria-retentive air filter (if present)
10. filter bracket (if present)
