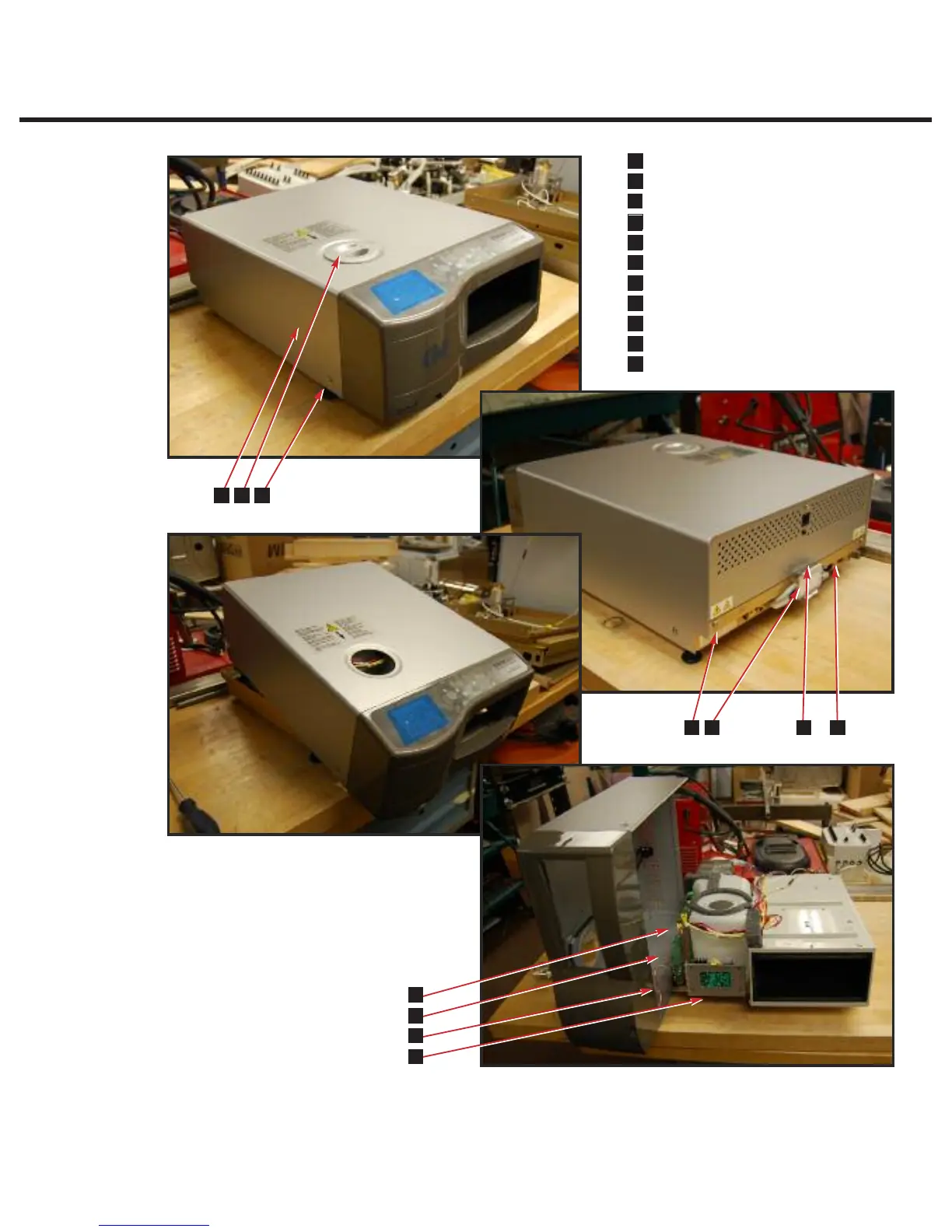

6. Cover Assembly
STATIM 5000/5000S/5000 G4 Service Guide
Page 21
STATIM G4 2000 Service Guide
Cover Assembly
n
1
Cover
n
3
Line filter
Reservoir cap
n
4
Side screws (both sides)
n
5
Screws with lockwashers
n
6
Bacteria-retentive air filter
n
7
Filter bracket
n
9
Controller board
n
9
LCD connector
n
9
DC power source cable
n
9
DC power source
1
2
3
4
5
6
7
8
9
10
11
Figure 1
5 6 7
8
9
10
11
1 3 4
2
Figure 5
