STAT IM 2000/2000S Service Guide
96-106775 Rev 5.0
7. Electrical and Electronic Components
c. For all boards Rev. 7.x onwards —
• Unplug the thermocouple connectors (6). There are three from non S (‘boiler’,
‘chamber’ and ‘validation’) and two for S class (‘boiler’ and ‘chamber’).
• Unplug the float connector (7) on units where the water quality and float reservoirs
are fitted.

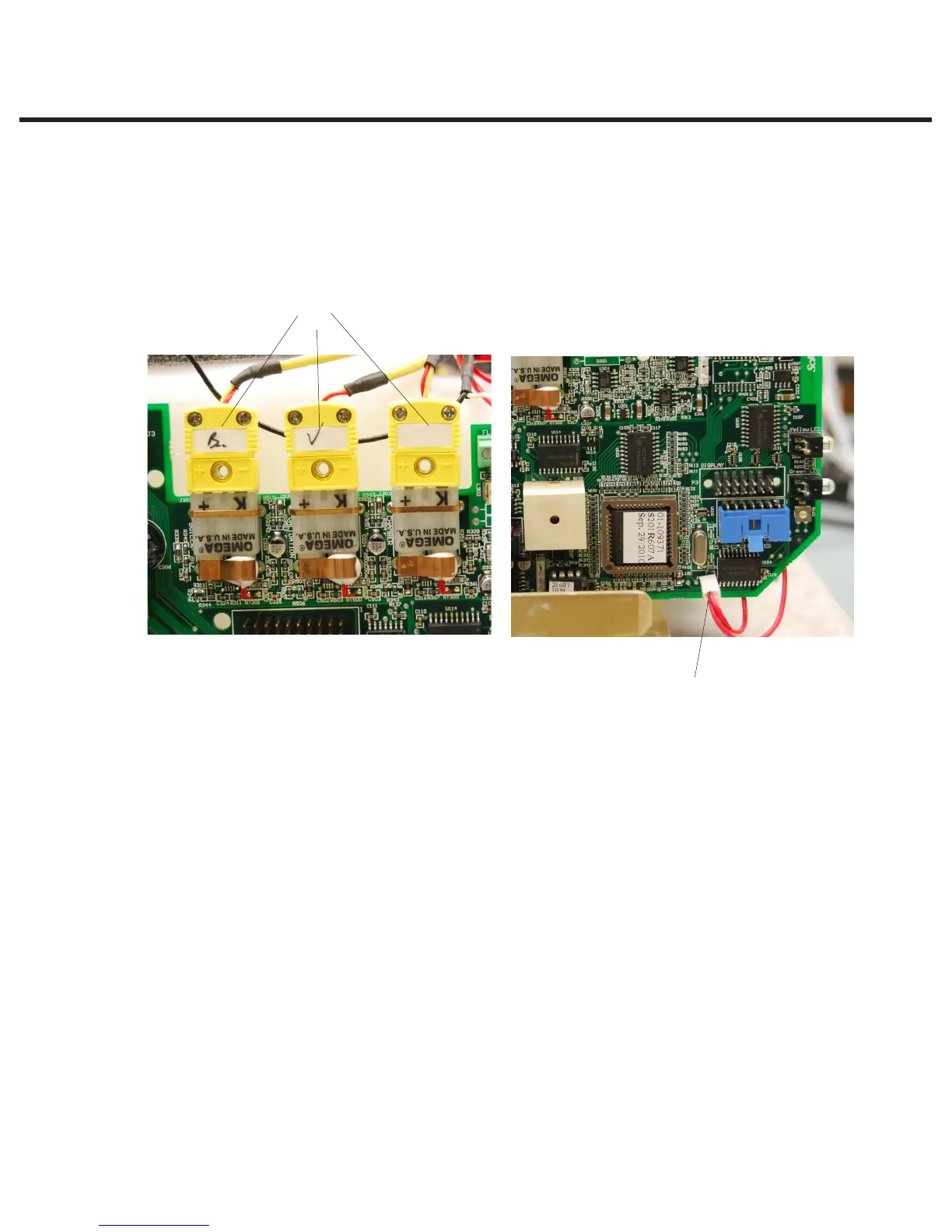

Figure 5 Figure 6
7
6
6. Thermocouple connectors
7. Float connector
STATIM 5000/5000S/5000 G4 Service Guide
