STAT IM 2000/2000S Service Guide
96-106775 Rev 5.0
8. Water Pumps, Reservoir, and Compressor
STATIM 5000/5000S/5000 G4 Service Guide

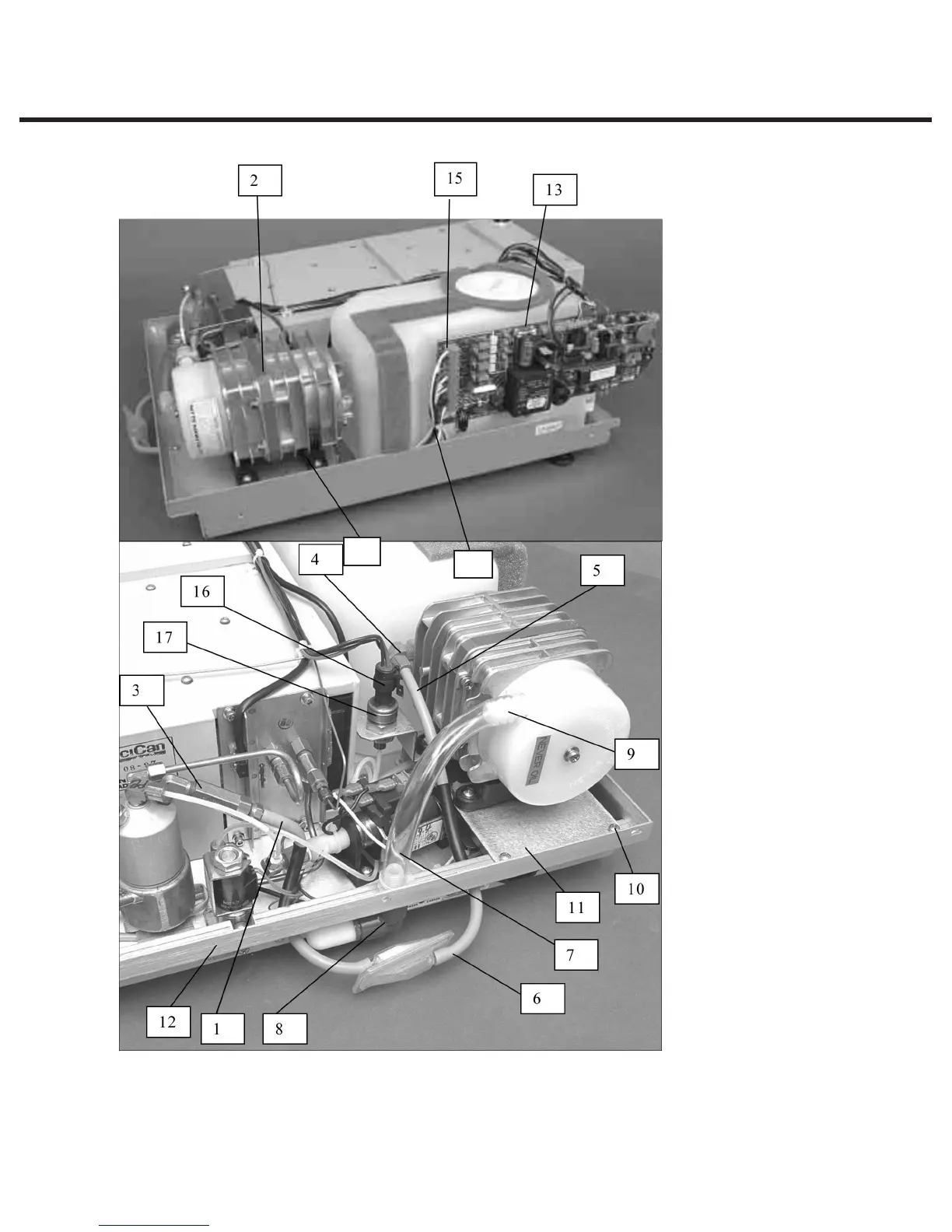

1. Rubber Tube
(cylindrical air filter only)
2. Compressor
3. Steam Generator Check Valve
4. Plastic Compression Nut
5. Rubber Tube (with bacteria-
retentive air filter)
6. Bacteria-retentive Filter Input
7. Transparent Rubber Tube
8. Air Filter and Fitting
9. Cable Tie
10. Mounting Screws
11. Compressor Bracket
12. Chassis
13. Controller Board
14. Cable Ties
15. Compressor Leads
16. Transducer Connector
17. Transducer
18. Ground Wire
Figure 26
18
14
