STAT IM 2000/2000S Service Guide
96-106775 Rev 5.0
2. Tools, Maintenance Schedules, Procedures and Testing
STATIM 5000/5000S/5000 G4 Service Guide

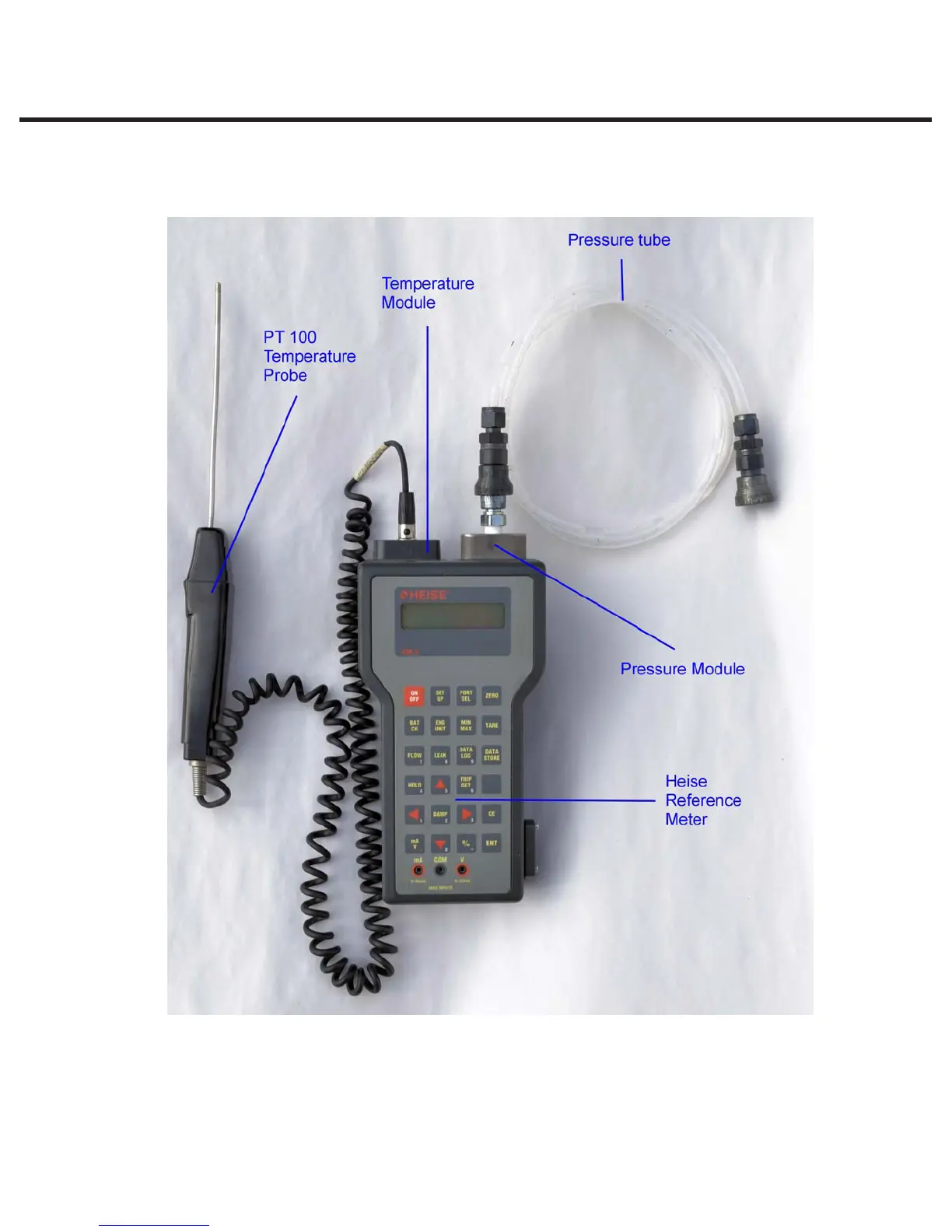

Figure 18, below, shows the meter with temperature probe and pressure tube ready to attach to a
calibration cassette.
Figure 18. Heise hand held calibrator with temperature module, pressure module, PT 100
temperature probe and pressure tube.
