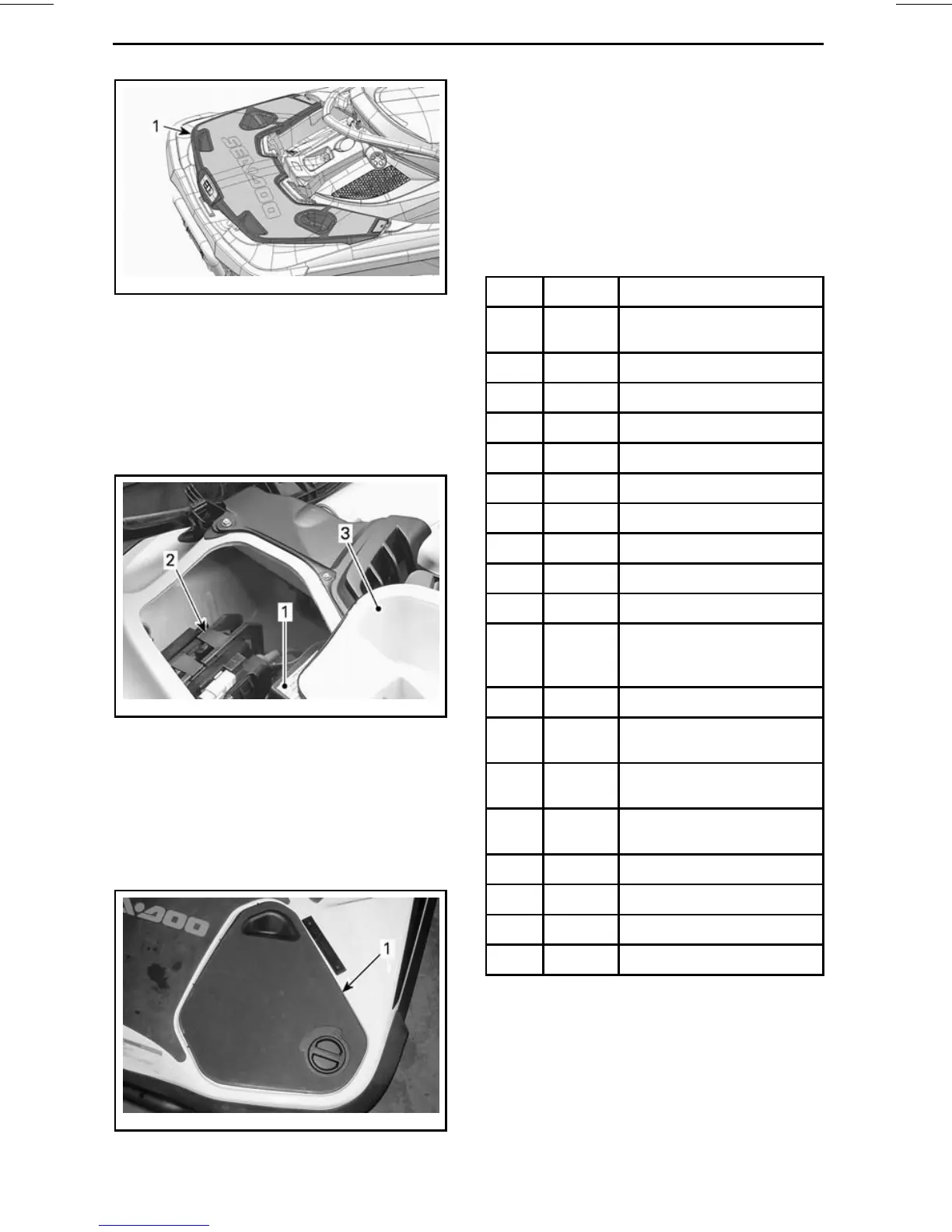

MAINTENANCE PROCEDURES
ssi2009-002-002_a
1. Boarding platform
Remove the two plastic rivets secur-
ing the RH aft storage bin and remove
the storage bin from the fixed deck.
The fuse box is located just under the
storage bin, attached to the front of the
battery holder.
smo2011-002-007_a
TYPICAL
1. Fuse box
2. Battery holder
3. Storage bin
Models Without iS
Open the starboard access panel on
the rear deck.
smr2011-029-009_a
1. Starboard access panel
All Models
To remove a fuse box cover, squeeze
locking tabs together, hold and pull
fuse box cover to open.
NOTE: Fuse ratings and positions are
illustrated on the fuse box cover.
Fuse Description
FUSE RATING DESCRIPTION
1
5A
iS Control (intelligent
Suspension)
2 15 A Diagnostic connector
33A
START/STOP button
4
3A
GPS
5
30 A iBR
630A
Charge
7
30 A
iS
830ABattery
9
—
Not used
10
—
Not used
11
3A
Depth sounder (if so
equipped)
12 3 A
Gauge, OTAS and CAPS
13 10 A
Cylinder 1 (ignition coil
and injection)
14
10 A
Cylinder 2 (ignition coil
and injection)
15
10 A
Cylinder 3 (ignition coil
and injection)
16 5 A
Starter solenoid
17
5 A iBR control
18 10 A Fuel pump
19 15 A
ECM
138
