Section 09 ELECTRICAL SYSTEM
Subsection 04 (STARTING SYSTEM)
09-04-4 SMR2000-062_09_04A.FM

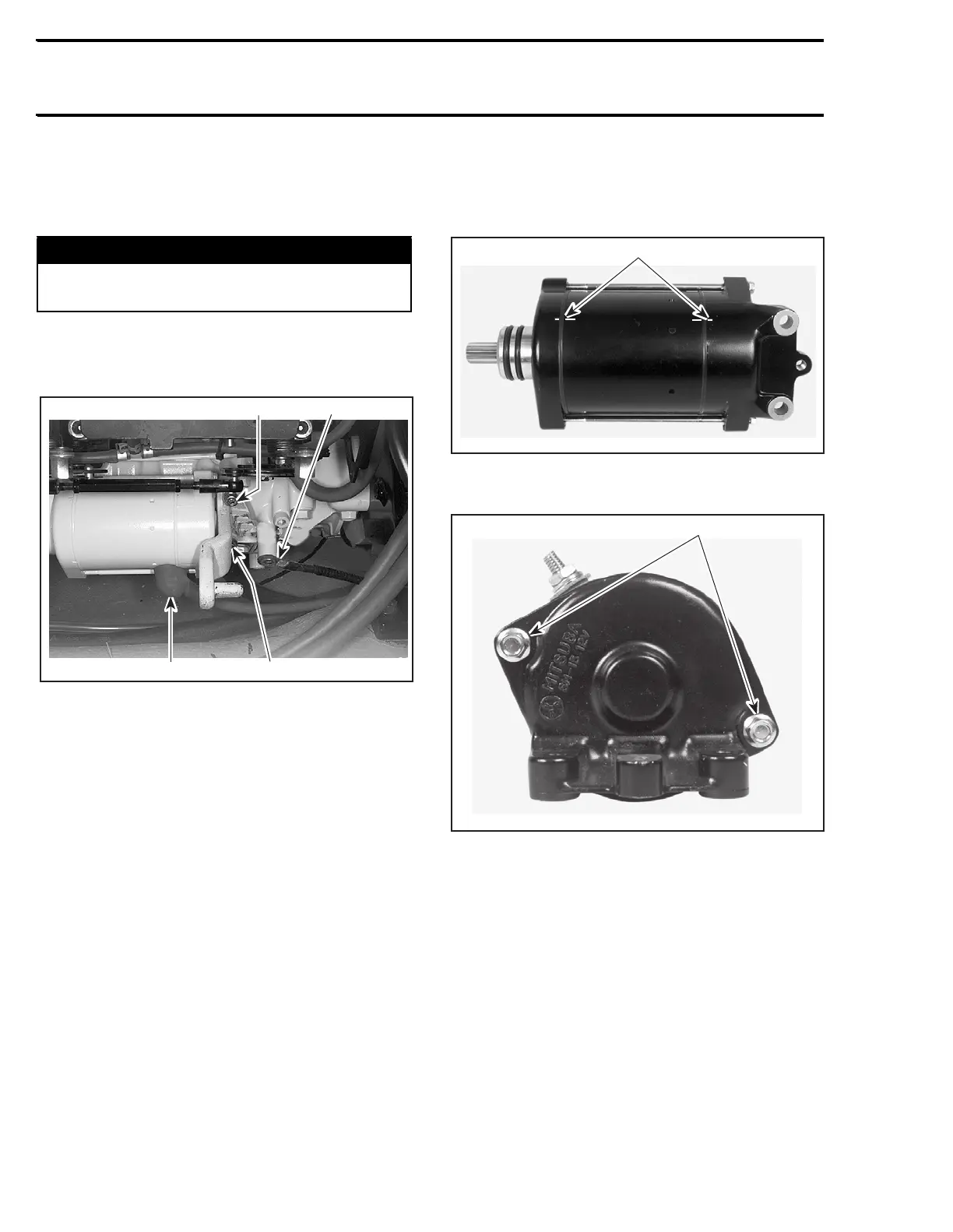

STARTER REMOVAL
Disconnect BLACK cable ground connection from
battery.
Disconnect RED cable connection from battery.
Disconnect starter cables and loosen Allen screws
no. 16 retaining starter bracket to engine.
1. Positive starter cable
2. Negative starter cable
3. Allen screw
Remove bracket and starter.
NOTE: To remove the starter drive assembly, mag-
neto flywheel has to be removed. Refer to MAG-
NETO SYSTEM and BOTTOM END.
To check and replace the starter end bearing, refer
to BOTTOM END of ENGINE section.
STARTER DISASSEMBLY
Locate index marks on yoke no. 1 and end covers
no. 3 and no. 10.
1. Index marks
Loosen through bolts no. 5.
1. Through bolts
WARNING
Always disconnect BLACK ground cable first
and reconnect last.
F06H1FA
1
F06H1GA
1
