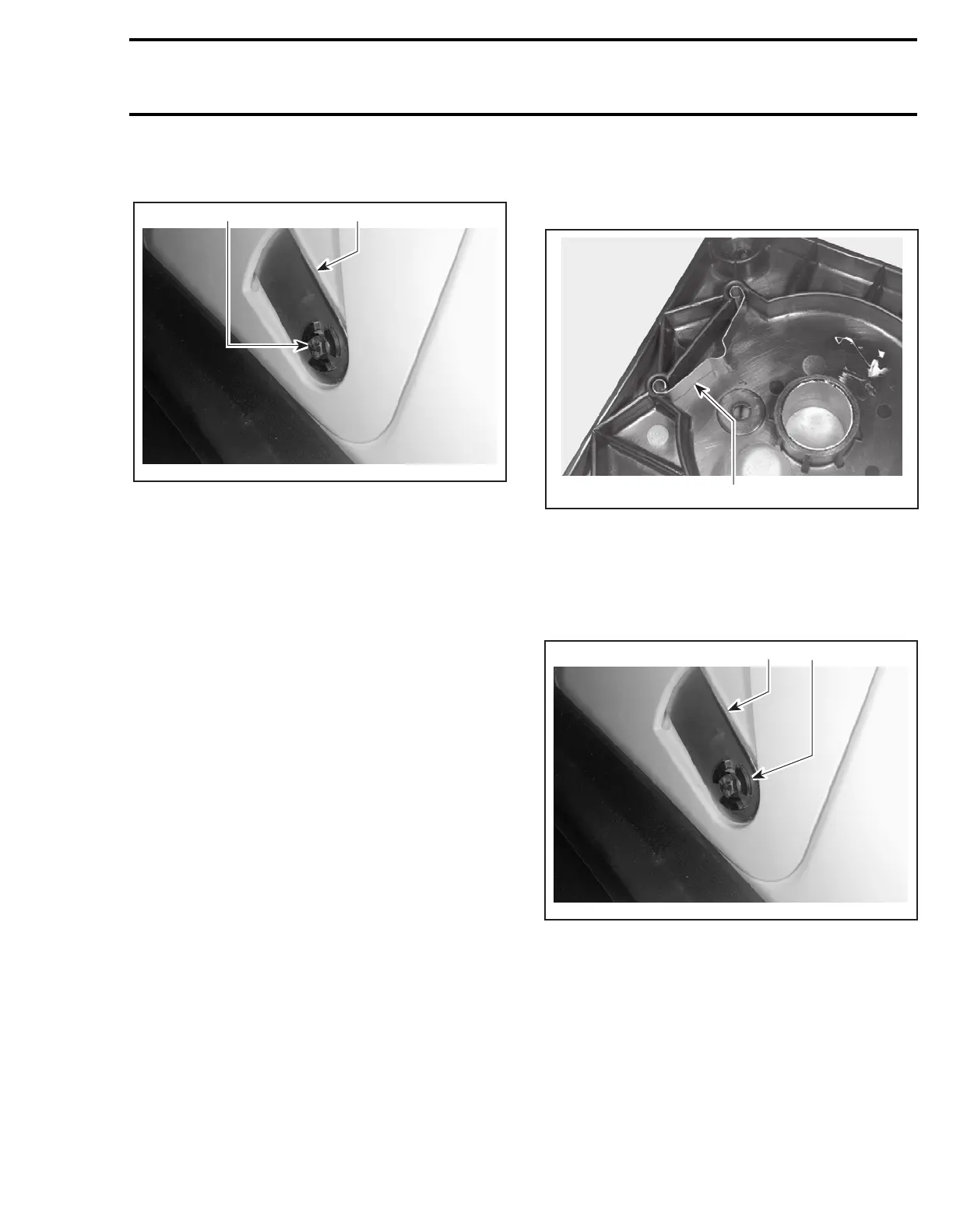

From outside of body, unscrew bolt no. 14 retain-
ing the interior lever.
1. Bolt
2. Shift lever
Remove the interior lever no. 11 and spring no. 15.
Reverse Cable Support
Unscrew bolts no. 18 and remove retaining block
no. 17. Detach adjustment nut no. 23 from re-
verse cable support no. 16.
Remove 3 bolts no. 19 retaining reverse cable
support no. 16 to body.
Remove reverse cable support.
INSPECTION
Visually inspect parts for wear or cracks. Replace
parts as required.
ASSEMBLY
Assembly is essentially the reverse of disassem-
bly procedures. However, pay particular attention
to the following.
CAUTION: Apply all specified torques and ser-
vice products as per main illustration.
Spring
Make sure to properly install spring no. 15 into in-
terior lever no. 11 as per following illustration.
1. Spring
Inner Lever and Shift Lever
Install the inner lever no. 11 in a rotating move-
ment. Engage properly the inner lever tabs in the
shift lever slots.
1. Shift lever
2. Interior lever tabs
Make sure the shift lever action is smooth and pre-
cise. Forward, neutral and reverse positions
should be easy to select with a detent position be-
tween each.
