Section 10 PROPULSION SYSTEM
Subsection 04 (REVERSE SYSTEM)
10-04-4 SMR2000-067_10_04A.FM
DISASSEMBLY
Reverse Gate
To remove reverse gate, refer to JET PUMP sec-
tion.
Cable Lever
Remove Allen screw no. 6 and detach cable lever
from reverse gate.
Pawl Lock and Spring
To remove pawl lock no. 7 and spring no. 8 re-
move roll pin no. 9.

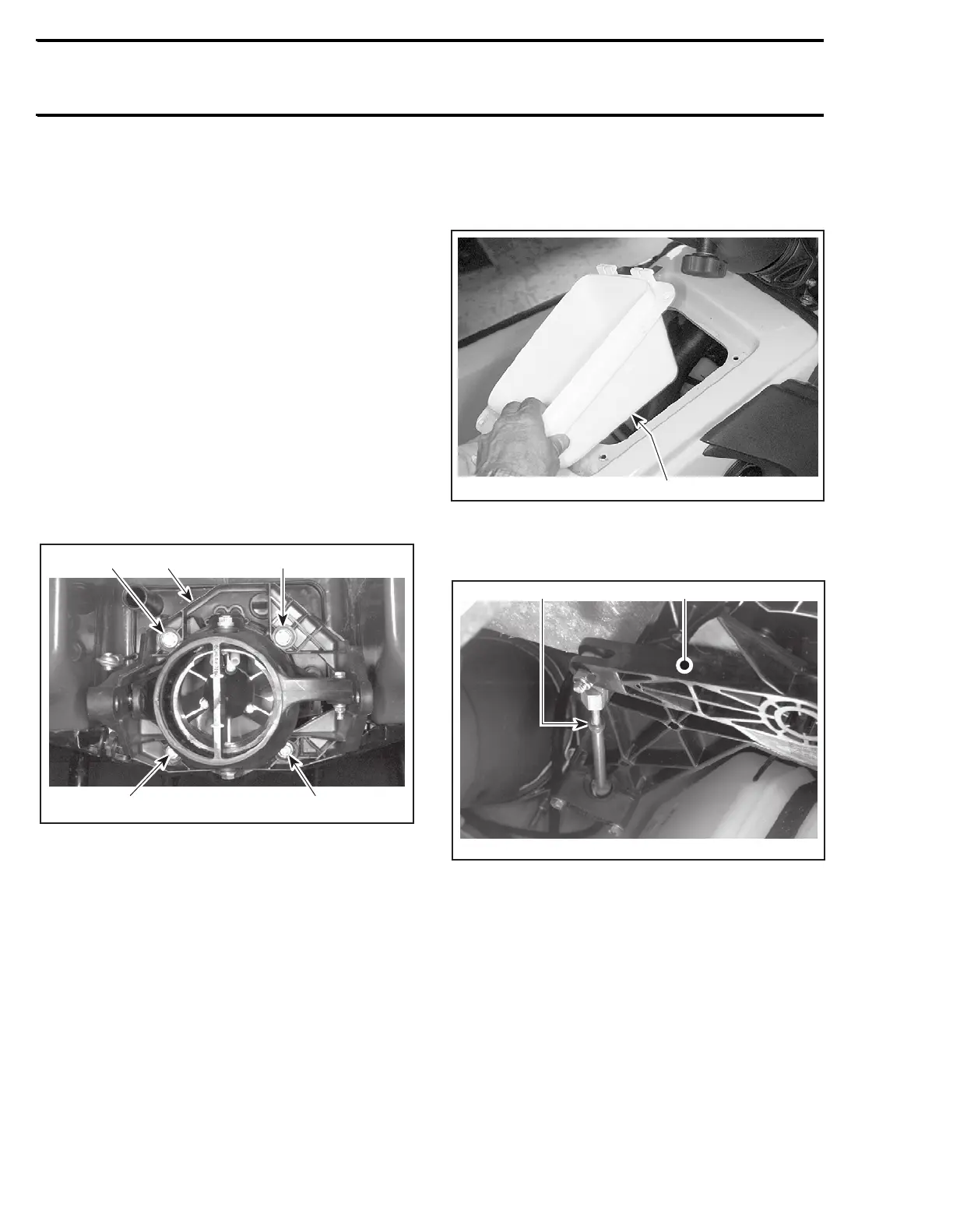

Reverse Gate Support
Unscrew 4 bolts which retain reverse gate support
no. 10 to venturi.
Remove reverse gate support from venturi.
1. Reverse gate support
2. Remove bolts
Inside Lever
Remove glove box to have access to the shifting
lever mechanism.
1. Remove glove box
Remove bolt no. 12 and lock nut no. 13 retaining
reverse cable end to interior lever no. 11.
1. Reverse cable
2. Inner lever
1
F07L1FA
F07J03A
1 2
