Section 09 ELECTRICAL SYSTEM
Subsection 04 (STARTING SYSTEM)
09-04-8 SMR2000-062_09_04A.FM
Nut
Connect the RED positive cable to the starter and
torque nut no. 17 to 6 N•m (53 lbf•in). Apply di-
electric grease on terminal and nut.

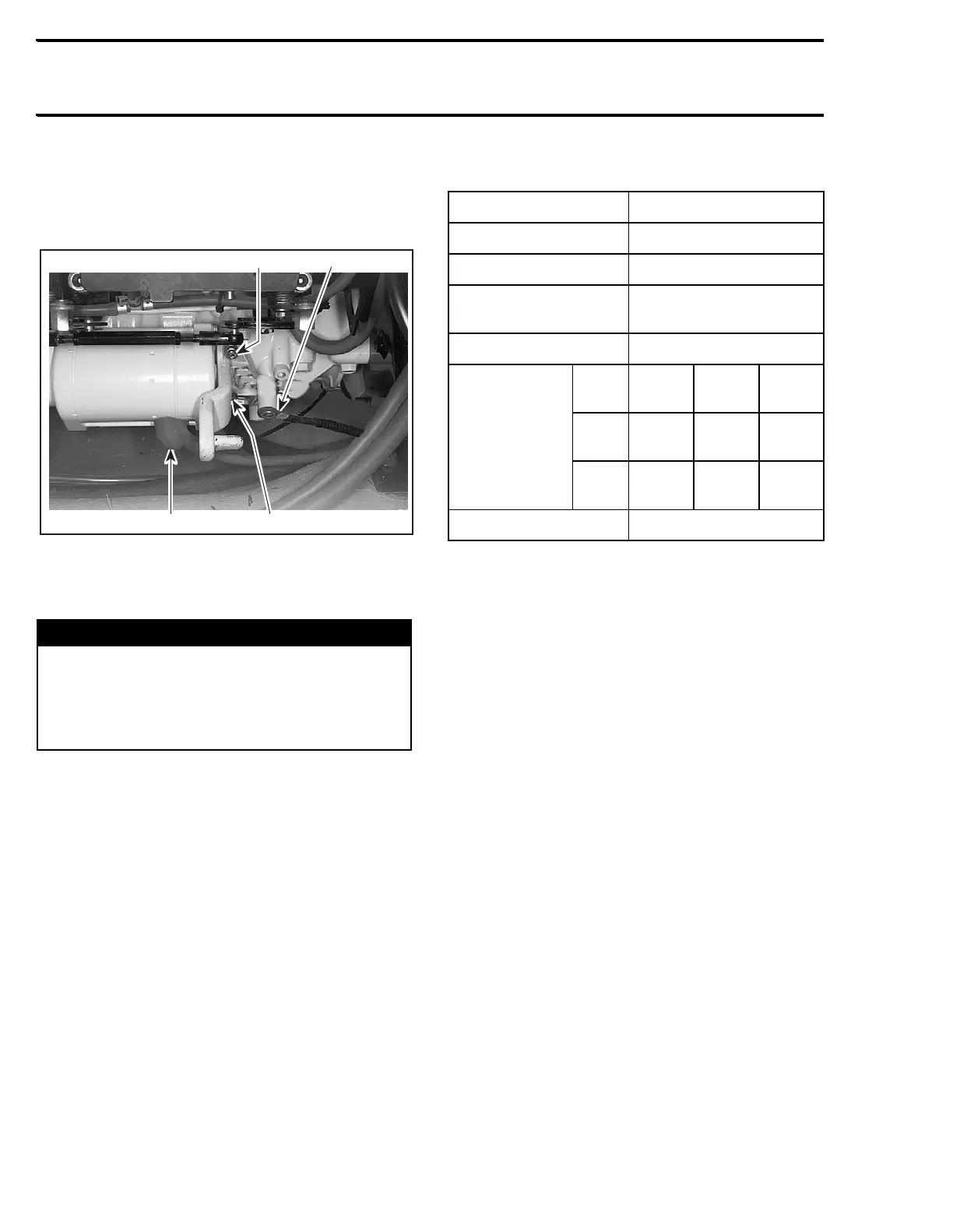

1. Torque nut to 6 N•m (53 lbf•in), apply dielectric grease and install
protection cover
2. Negative BLACK cable
3. Apply Loctite 243 to threads and torque screw to 10 N•m
(89 lbf•in)
STARTER SPECIFICATION
WARNING
Always connect RED positive cable first then
BLACK negative cable last. Whenever con-
necting the RED positive cable to the starter
motor make sure the battery cables are dis-
connected to prevent electric shock.
Nominal output 0.8 kW
Voltage 12 V
Rated time 30 seconds
Rotation
Counterclockwise
(viewed from pinion side)
Weight 1.7 kg (3.7 lb)
Performance
specification at
20°C (68°F)
No
load
10.9 V
45 A
max.
8600
RPM
Load 9 V
120 A
max.
5350
RPM
Stall 2.25 V
390 A
max.
0 RPM
Battery 12 V, 19 Ah
