Section 12 HULL/BODY
Subsection 02 (ADJUSTMENT AND REPAIR)
12-02-14 SMR2000-071_12_02A.FM
DEFLECTOR
GTX DI Models
Removal
Using a heat gun, heat deflector and pry it using a
piece of wood.
Installation

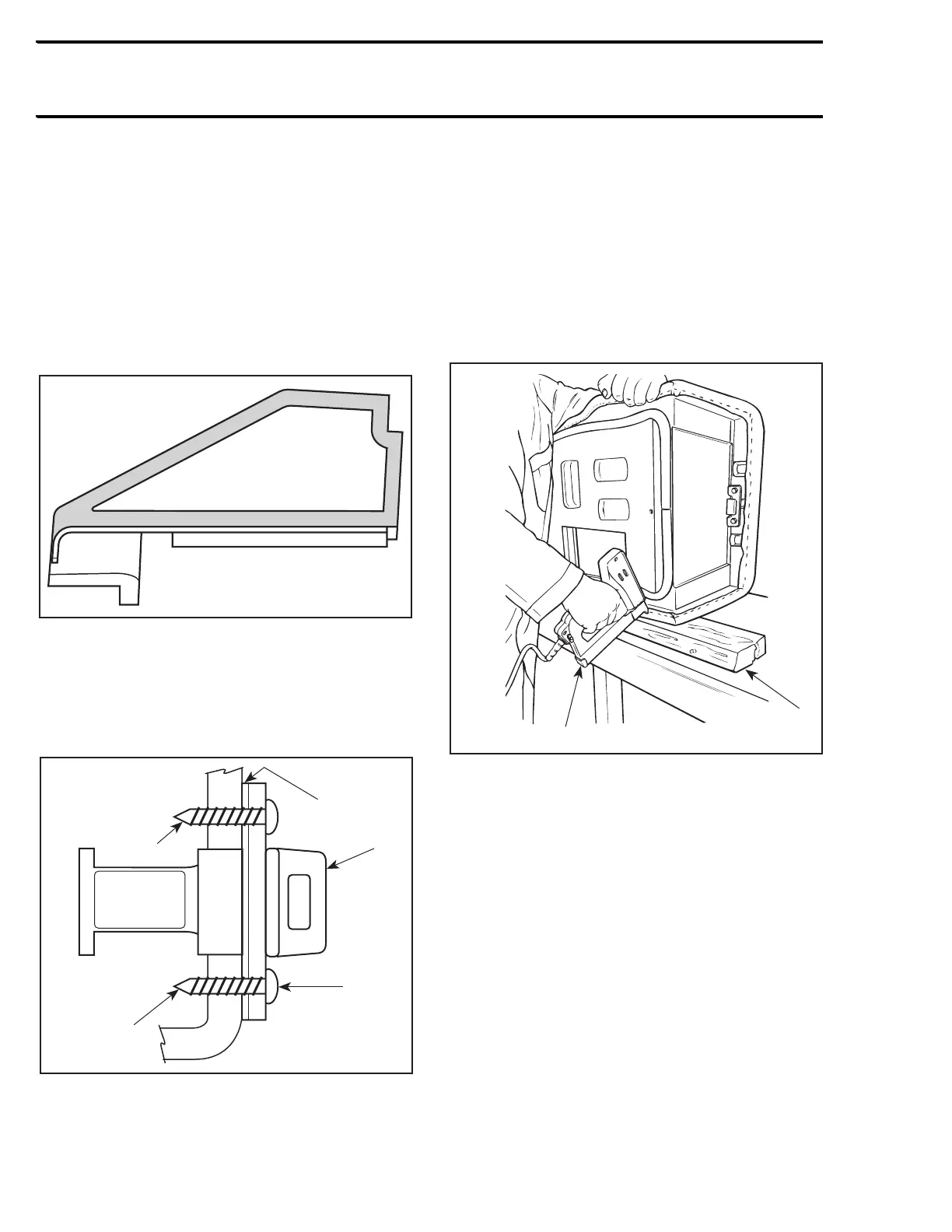

Apply Loctite The Right Stuff Gasket as indicated
by the shaded area in the following illustration.
All Models
DRAIN PLUG INSTALLATION
Refer to the following illustration to install drain plug
no. 15.
1. Drain plug
2. Gasket and 732 sealant
3. Torque screws to 1.5 N•m (13 lbf•in)
4. From inside bilge, apply 732 sealant on screws
SEAT COVER REPLACEMENT
Install staples with an electric tacker such as Ar-
row tacker no. ETN-50 or with a manual tacker
such as Arrow tacker no. T-50.
NOTE: For an easier installation, it’s highly recom-
mended to use an electric tacker.
Ensure that the seat rest firmly against a hard sur-
face such as a piece of wood. This is done to get
the staples completely pushed in place.
TYPICAL
1. Piece of wood
2. ETN-50 (electric) or T-50 (manual)
After cover installation cut all around the excess
of material.
F01L3YA
2
1
