Sea-doo RX - Removal

Section 04 ENGINE
Subsection 07 (EXHAUST SYSTEM)
04-07-2 SMR2000-049_04_07A.FM
REMOVAL
RX Models

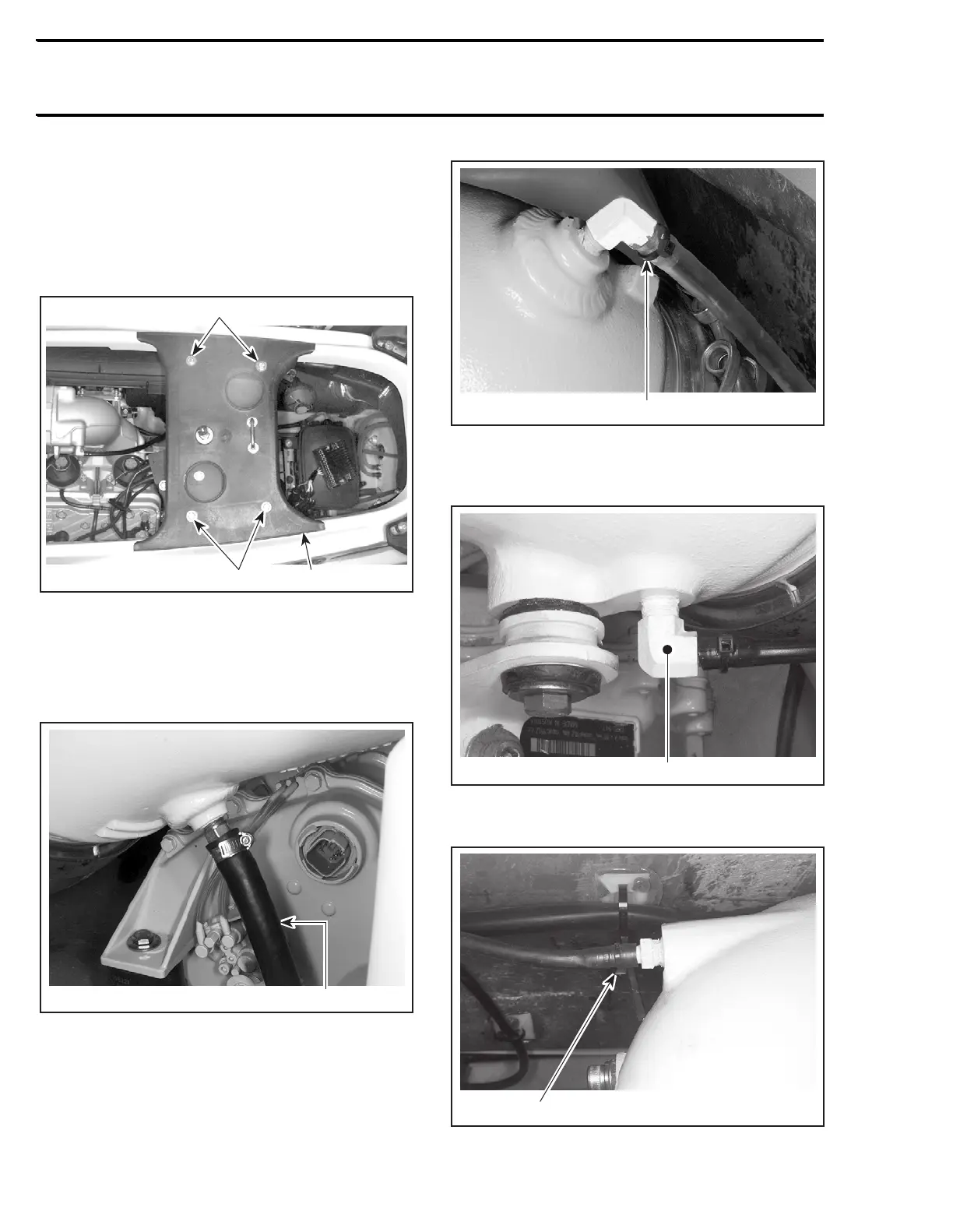

Remove seat.
GTX DI Models
Remove seat support.
1. Seat support
2. Remove screws
Tuned Pipe
Disconnect water return hose at tuned pipe head
no. 10.
1. Water return hose
Disconnect small hose from water outlet fitting at
the tuned pipe head no. 10.
1. Disconnect hose from outlet fitting
Disconnect the water injection hose at tuned pipe
head no. 10.
1. Water injection hose
Disconnect the water bleed hose.
1. Water bleed hose
