Sea-doo RX - Inlet Grate; Mirror; Riding Plate

Section 12 HULL/BODY
Subsection 02 (ADJUSTMENT AND REPAIR)
12-02-12 SMR2000-071_12_02A.FM
MIRROR
RX Models
Place the mirror frame in hot water to “soften” the
material to allow mirror installation in its frame.
INLET GRATE
All Models
Removal and Installation
Loosen screws and remove inlet grate.
NOTE: An impact screwdriver should be used to
loosen tight screws.
When reinstalling inlet grate, apply Loctite 271 on
threads and torque screws to 11 N•m (8 lbf•ft).
RX/RX DI models

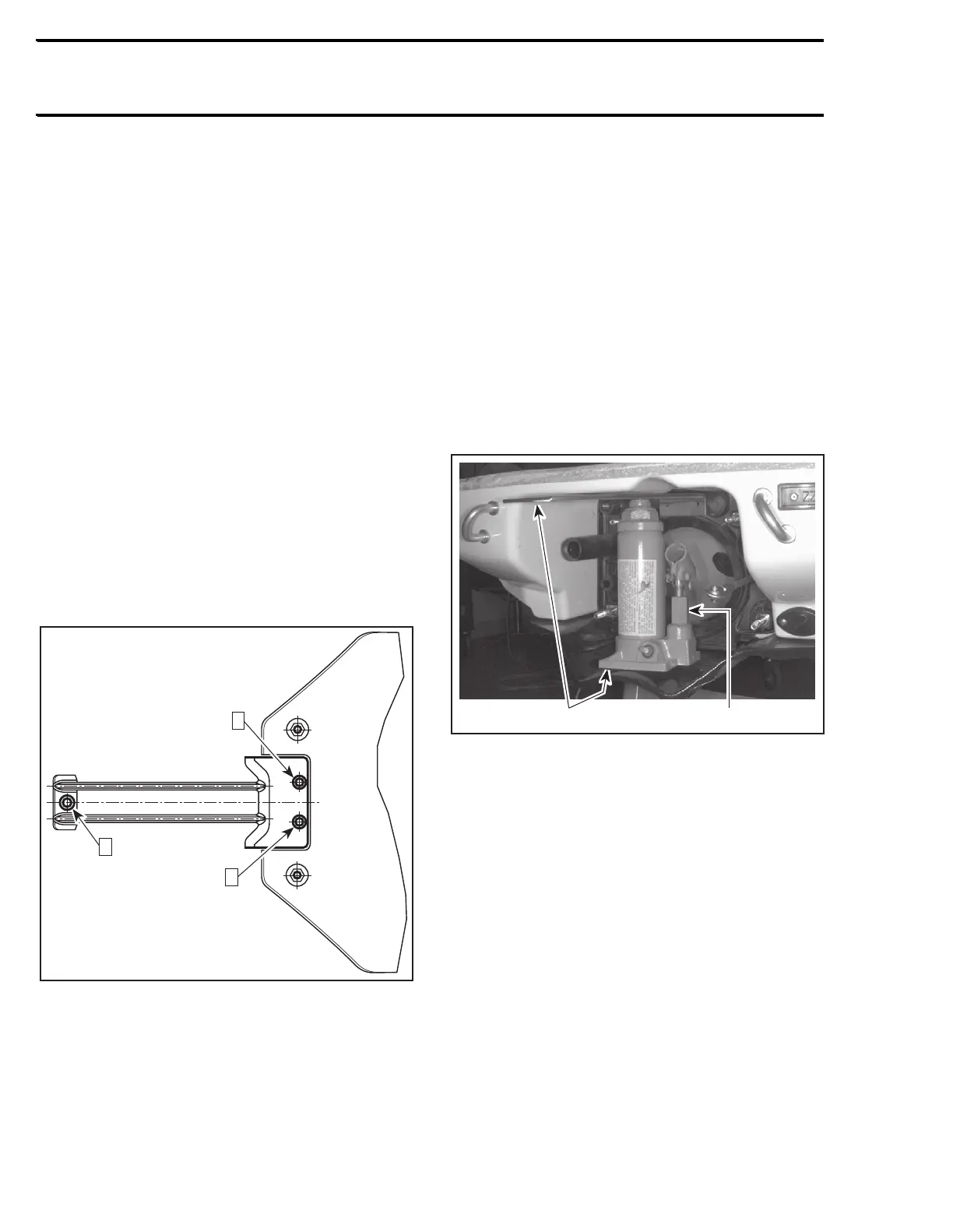

Follow this sequence referring to the illustration:
Hand tighten screw numbers ➀, ➁ then ➂.
Torque screw numbers ➀ and ➁ to 11 N•m (97
lbf•in).
Torque screw number ➂ to 26 N•m (19 lbf•ft).
All Models
RIDING PLATE
Removal
Remove inlet grate.
Remove jet pump. Refer to JET PUMP.
Remove the speed sensor from the riding plate (if
applicable).
Loosen riding plate screws.
NOTE: An impact screwdriver should be used to
loosen tight screws.
Using a low height hydraulic bottle jack and 2 steel
plates, pry out riding plate.
TYPICAL
1. Hydraulic bottle jack
2. Steel plates
Cleaning
Scrape off all excess of sealant from riding plate
and hull.
Clean hull surface with acetone based solvent to
eliminate grease, dust and any residue of sealant.
F16L06A
3
2
1
F05J03A
2 1
