Section 10 PROPULSION SYSTEM
Subsection 02 (JET PUMP)
SMR2000_065_10_02A.FM 10-02-13

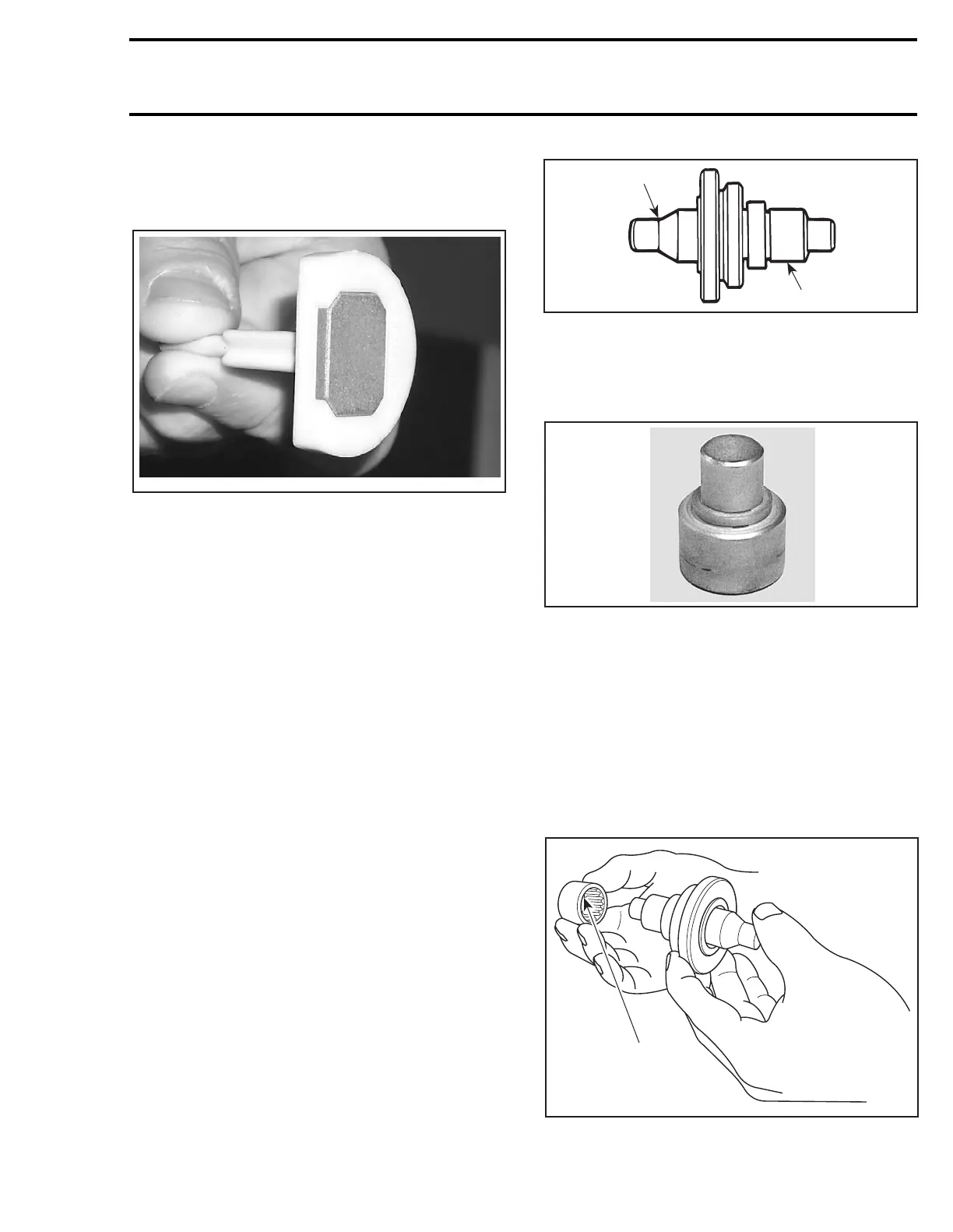

Anti-Rattle Pusher
Check for melted plastic around metal pad. If so,
replace it.
Check for excessive wear of pad.
Seal
Carefully inspect seal lips. Make sure that lips are
not worn, distorted, cracked or show signs of any
other damage. Replace after 150 hours event if it
seems good.
ASSEMBLY
Wear Ring
Apply Loctite 648 (P/N 420 899 788) on outer side
of wear ring before reassembly.
To install ring in housing, use a square steel plate of
approximately 180 × 180 mm × 6 mm thick (7 × 7 in
× 1/4 in) and a press.
Manually engage ring in housing making sure it is
equally inserted all around. Press ring until it seats
into bottom of housing.
If a press is not readily available, a piece of wood
such as a 2 × 4 in × 12 in long, can be used.
Manually engage ring in housing making sure it is
equally inserted all around. Place wood piece over
ring. Using a hammer, strike on wood to push ring.
Strike one side then rotate wood piece about 90° and
strike again. Frequently rotate wood piece so that
ring slides in evenly until it seats into bottom of
housing.
Seal and Needle Bearing
Bearings no. 20 and seal no. 19 will be properly
installed in housing using bearing/seal installer
tool (P/N 295 000 107).
BEARING/SEAL INSTALLER TOOL
1. Seal side
2. Bearing side
For outlet end of housing use inner bearing installer
tool P/N 529 035 609.
CAUTION: Failure to use this tool will cause ma-
jor damage to the pump.
NOTE: Install seal with the spring toward the
outside.
Stamped end of bearings (showing identifica-
tion markings) must be located toward outside
of housing.
Properly insert bearing on tool. Using an arbor
press only, push tool until tool flange contacts
housing. Proceed the same way for both bearings.
1. Stamped end this side
F08J05A
F01J4KA
2
1
F08B01A
F01J1HA
1
