Section 04 ENGINE
Subsection 03 (REMOVAL AND INSTALLATION)
SMR2000-044_04_03A.FM 04-03-3

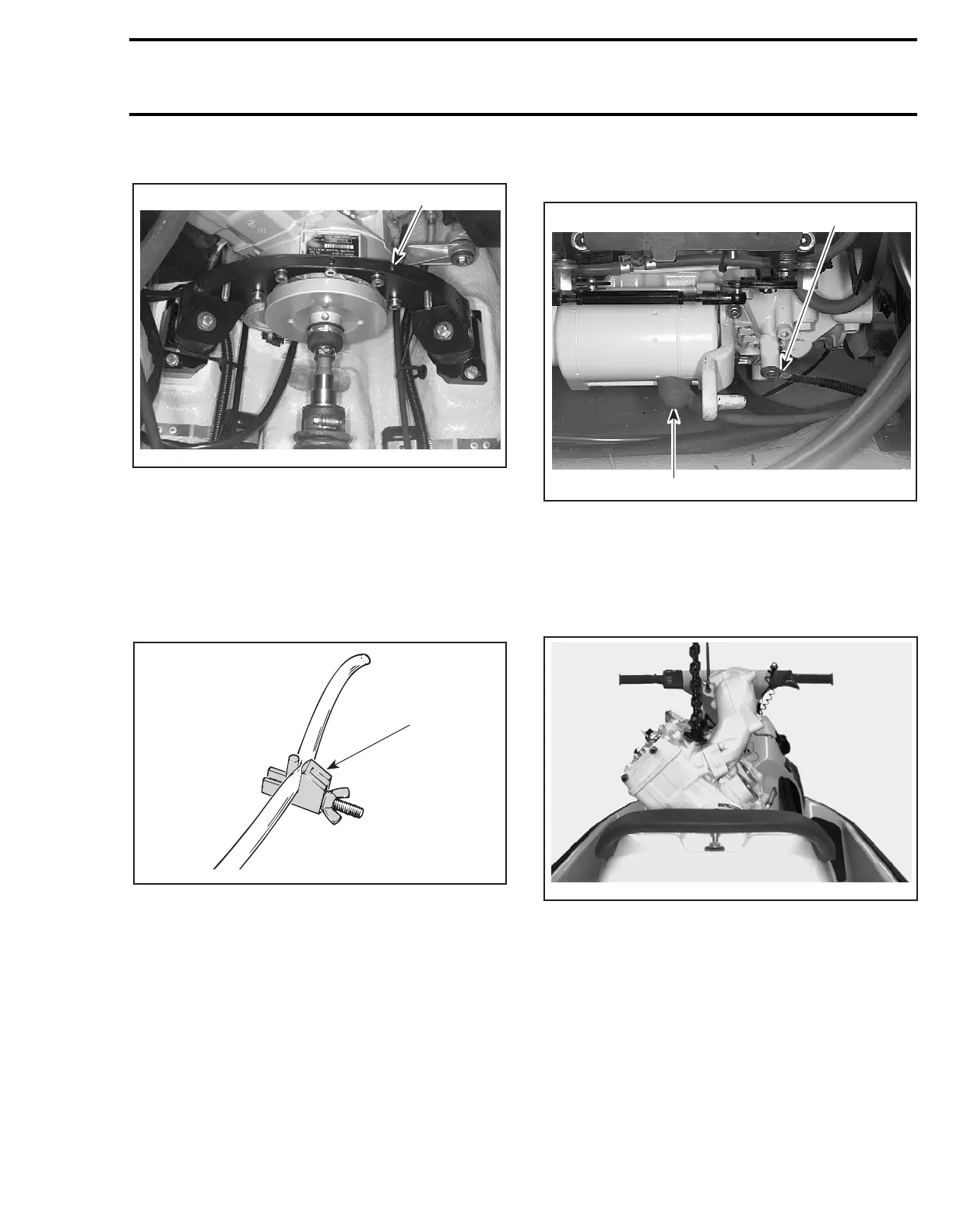

Remove rear engine support.
TYPICAL
1. Rear support
Removal of Remaining Components
Lift up engine slowly until oil injection hoses can
be reached.
Install a hose pincher to oil supply hoses of oil in-
jection pump then, disconnect hose.
TYPICAL
1. Hose pincher (P/N 295 000 076)
Disconnect RED positive cable from starter post.
Disconnect BLACK negative cable from engine
crankcase.
1. Positive starter cable
2. Ground cable
Carry on engine lifting then tilt engine so that it can
be removed from the body opening.
CAUTION: Be careful not to scratch body or to hit
any component.
TYPICAL
CLEANING
Wipe off any spillage in bilge. Clean with a bilge
cleaner.
Clean external parts of engine.
1
F07F12A
A01B2JB
1
F06H35A
2
1
F01D7RA
