Sea-doo RX - Service Tools; Mandatory Service Tools; Engine

Section 01 SERVICE TOOLS AND PRODUCTS
Subsection 02 (MANDATORY SERVICE TOOLS)
SMR2000-038_01_02A.FM 01-02-1

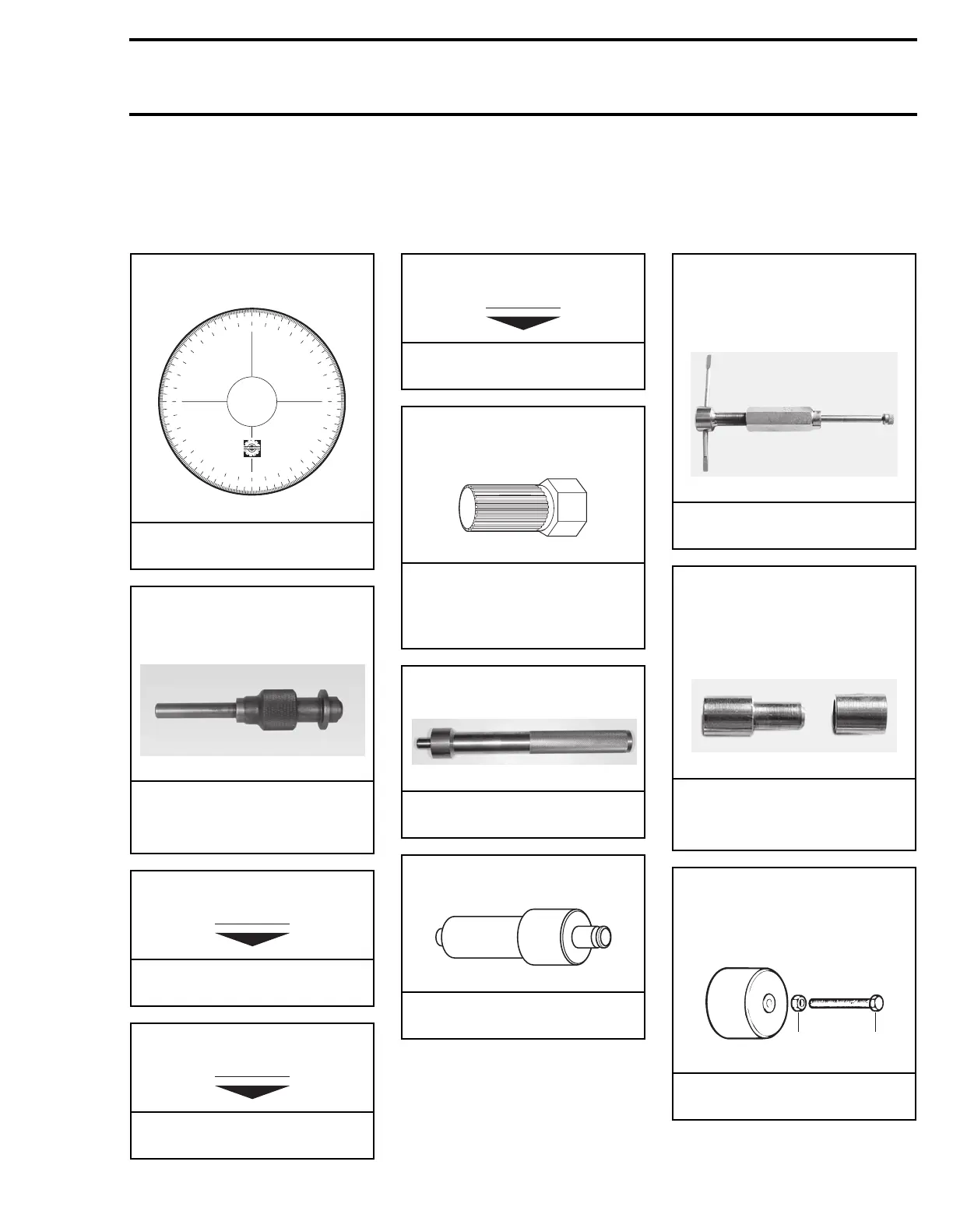

MANDATORY SERVICE TOOLS 0
ENGINE
Degree wheel
P/N 529 035 607
A00B334
APPLICATION
717 and 787 engines.
Piston circlip installer
A) P/N 529 035 562
B) P/N 529 035 563
F06B014
APPLICATION
A) 717 and 787 engines.
B) 947 engine.
Air compressor ring compressor
P/N 529 035 713
APPLICATION
947 DI engine.
Carbon dam guide
P/N 529 035 715
APPLICATION
947 DI engine.
3
6
0
3
5
0
3
4
0
3
3
0
3
2
0
3
1
0
3
0
0
2
9
0
2
8
0
2
7
0
2
6
0
2
5
0
2
4
0
2
3
0
2
2
0
2
1
0
2
0
0
1
9
0
1
8
0
1
7
0
1
6
0
1
5
0
1
4
0
1
3
0
1
2
0
1
1
0
1
0
0
9
0
8
0
7
0
6
0
5
0
4
0
3
0
2
0
1
0
1
0
2
0
3
0
4
0
5
0
6
0
7
0
8
0
9
0
1
0
0
1
1
0
1
2
0
1
3
0
1
4
0
1
5
0
1
6
0
1
7
0
1
8
0
1
9
0
2
0
0
2
1
0
2
2
0
2
3
0
2
4
0
2
5
0
2
6
0
2
7
0
2
8
0
2
9
0
3
0
0
3
1
0
3
2
0
3
3
0
3
4
0
3
5
0
3
6
0
NEW
NEW
Carbon dam compressor
P/N 529 035 716
APPLICATION
947 DI engine.
PTO flywheel
remover/installer
P/N 295 000 001
F01J0T4
APPLICATION
717 engine.
NOTE: This tool is also used for
the impeller.
Bearing pusher
P/N 420 876 501
F00B074
APPLICATION
717 and 787 engines.
Starter drive bearing pusher
P/N 290 876 502
F06B054
APPLICATION
947 engine.
NEW
Piston pin puller
P/N 529 035 503
Expansion sleeve
P/N 295 000 117 (787 engine)
F00B0T4
APPLICATION
All engines.
Sleeve set
A) P/N 529 035 542
(20 mm sleeve)
B) P/N 529 035 543
(21 mm sleeve)
F00B0U4
APPLICATION
A) 717 and 787 engines.
B) 947 engine.
Puller ass’y
P/N 290 876 488
1) Screw P/N 290 240 860
2) Hexagonal nut P/N 290 242 210
F01B0I4
APPLICATION
717 and 787 engines.
21
