Sea-doo RX - Variable Trim System

Section 10 PROPULSION SYSTEM
Subsection 05 (VARIABLE TRIM SYSTEM)
SMR2000-068_10_05A.FM 10-05-1
VARIABLE TRIM SYSTEM 0
RX and RX DI Models
F16J01S
1
2
4
3
5
6
7
8
9
10
11
12
14
2
13 Nm
(115 lbfin)
Loctite
243
5 Nm
(44 lbfin)
13
Loctite
243
3 Nm
(27 lbfin)
13 Nm
(115 lbfin)
Loctite
243
Synthetic
grease
7 Nm
(62 lbfin)
www.SeaDooManuals.net

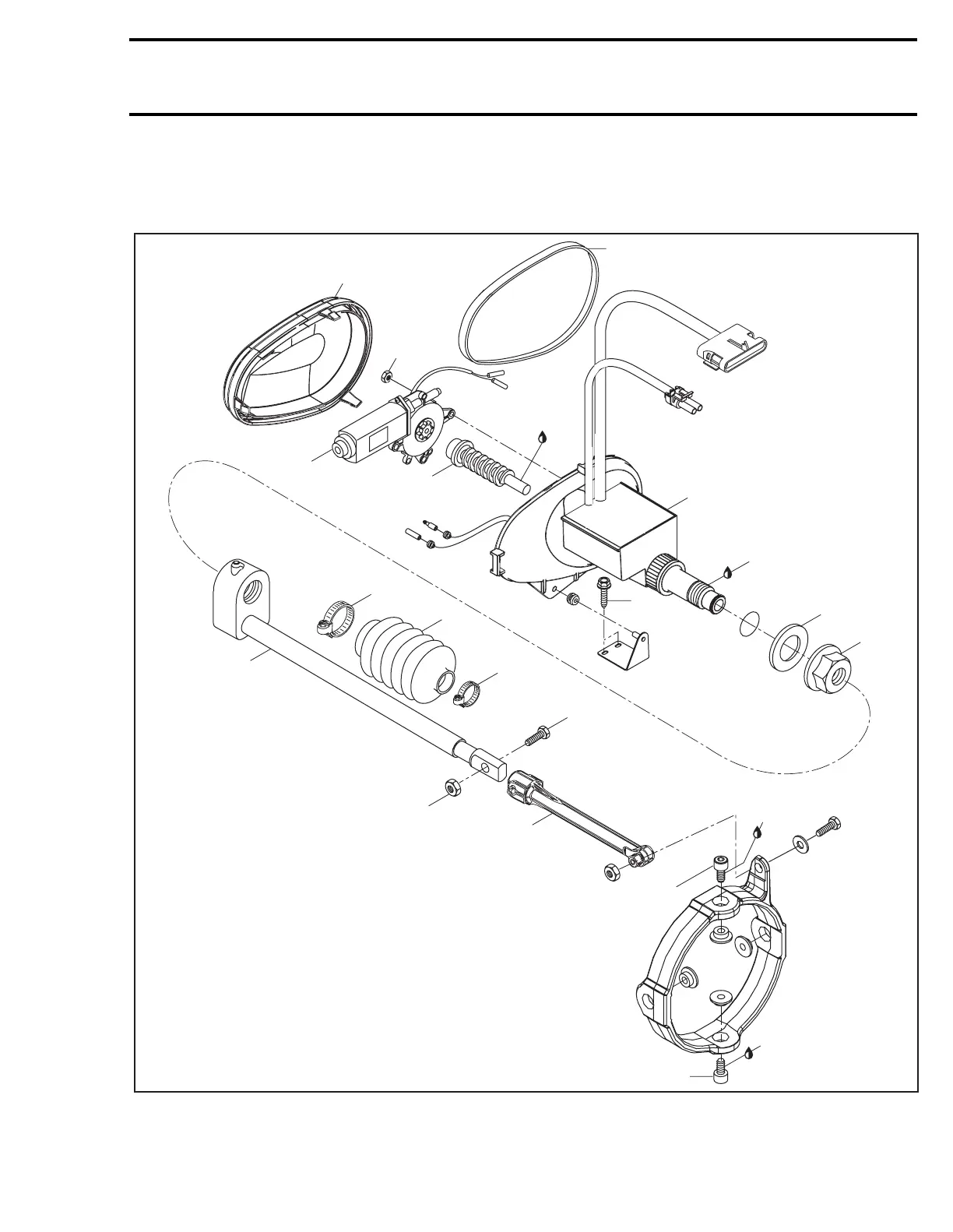

PARTS
