Section 04 ENGINE
Subsection 04 (MAGNETO SYSTEM)
SMR2000-045_04_04A.FM 04-04-3
DISASSEMBLY

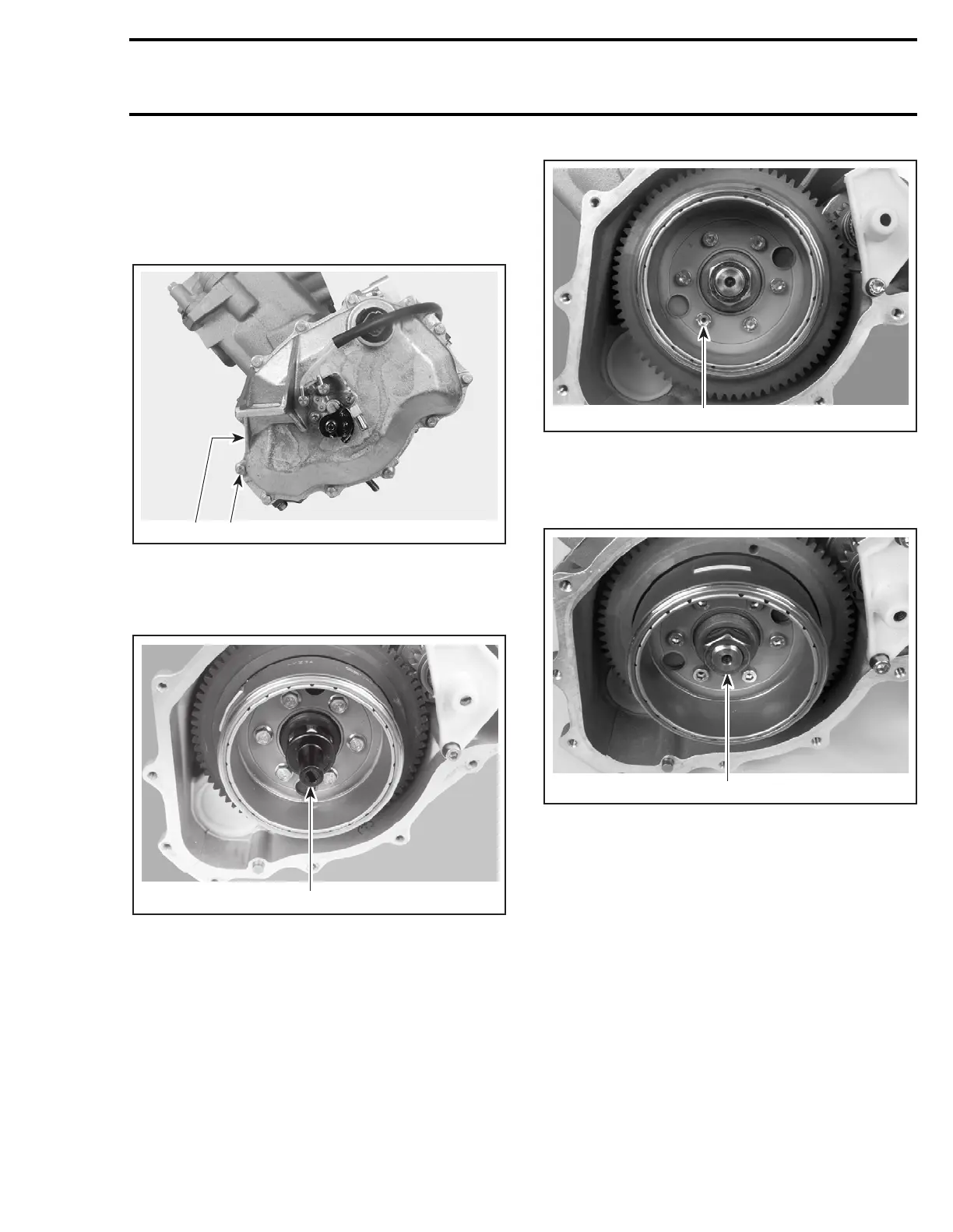

Cover
Loosen screws no. 11. Remove engine magneto
cover no. 1.
TYPICAL
1. Cover
2. Screw
Remove oil pump shaft from flywheel nut.
TYPICAL
1. Remove oil pump shaft
Rotor and Flywheel
To remove the rotor no. 8 or the flywheel no. 3, the
crankshaft must be locked. For procedure, refer to
BOTTOM END.
If necessary, the magneto rotor can be removed
without removing the engine flywheel. Remove the
six screws no. 17.
TYPICAL
1. Screw
To remove the flywheel/rotor assembly, unscrew
nut no. 13 counterclockwise when facing it.
TYPICAL
1. Nut
The flywheel is easily freed from crankshaft with
puller (P/N 420 976 235).
Install protective cap (P/N 290 877 414) to crank-
shaft.
Fully thread puller in engine flywheel.
CAUTION: Ensure to completely screw the
puller until it bottoms. Otherwise, not enough
threads would be engaged and damage may
occur.
F06D1RA
1
2
F06D23A
1
F06D0LA
1
F06D0MA
1
