Section 09 ELECTRICAL SYSTEM
Subsection 03 (CHARGING SYSTEM)
09-03-8 SMR2000-061_09_03A.FM
Charging Two or More Batteries at a
Time
Connect all positive battery posts together and
use a charger with a capacity (rated) equal to: num-
ber of battery to be charged multiply by 2 A.
For example: Charging 5 batteries at a time re-
quires a 10 A rated charger (5 x 2 A = 10 A).

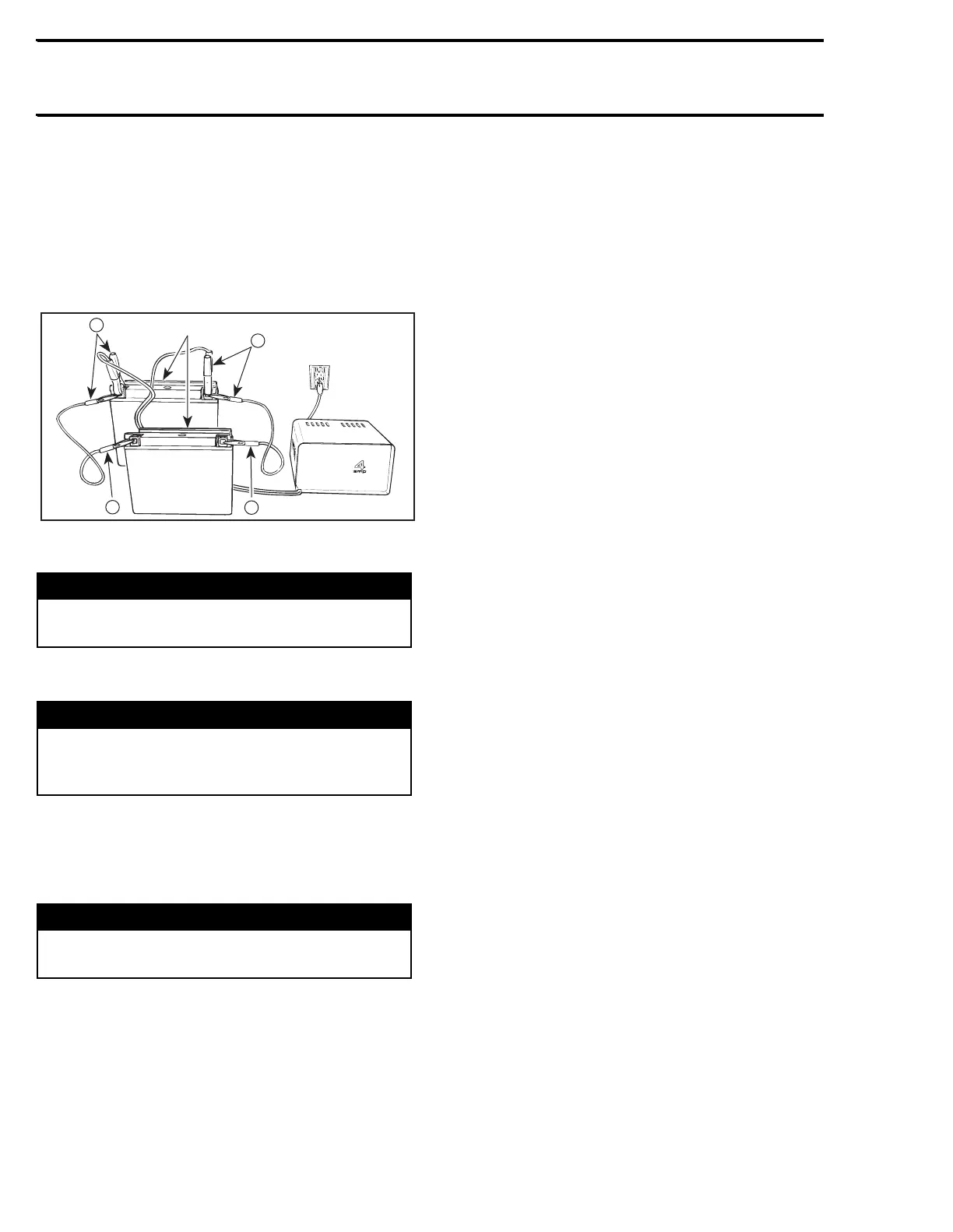

TYPICAL
1. Two batteries = 4 A
Battery Installation
Proceed as follows:
1. Install battery in its emplacement.
2. Secure vent line to the battery and support. En-
sure vent line is not kinked or obstructed.
3. First connect RED positive cable.
4. Connect BLACK negative cable last.
5. Apply dielectric grease on battery posts.
6. Verify cable routing and attachment.
RX Models
Reinstall bilge vent tube.
WARNING
Always charge battery(ies) in a well ventilated
area.
WARNING
Always connect battery cables exactly in the
specified order, RED positive cable first BLACK
negative cable last.
WARNING
Vent line must be free and open. Avoid skin
contact with electrolyte.
