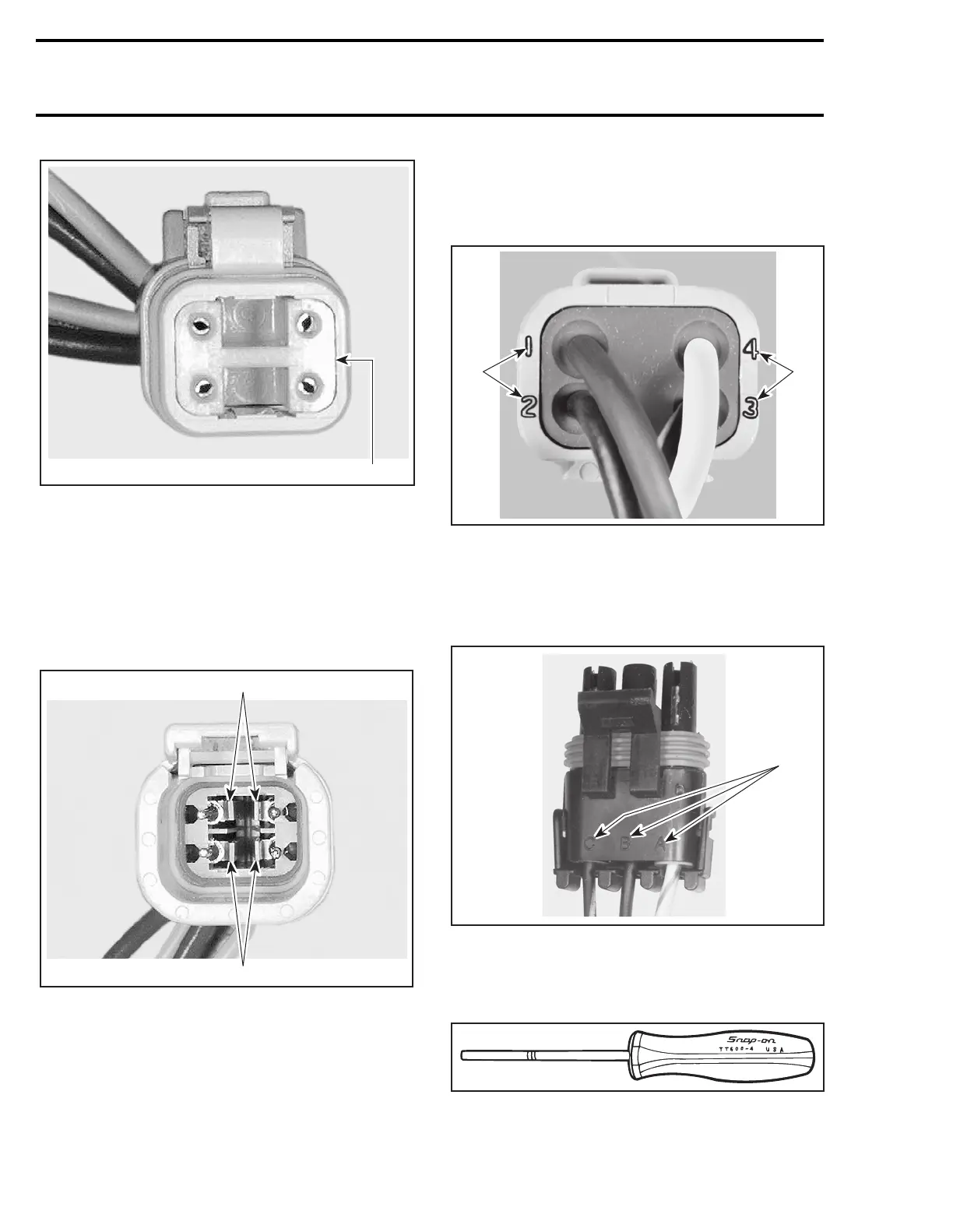

MALE HOUSING
1. Male lock
NOTE: Before extraction, push wire forward to
relieve pressure on retaining tab.
– Insert a 4.8 mm (0.189 in) wide screwdriver
blade inside the front of the contact cavity.
– Pry back the retaining tab while gently pulling
wire back until contact is removed.
FEMALE CONNECTOR HOUSING
1. Retaining tab
To install:
– For insertion of signal contact, make sure the
lock is removed.
– Insert contact into appropriate circuit cavity and
push as far as it will go.
– Pull back on the contact wire to be sure the re-
tention fingers are holding the contact.
– After all required contacts have been inserted,
the lock must be installed.
1. Wire identification numbers
PACKARD CONNECTOR
Packard connectors are used to connect electrical
harnesses and gauges.
VIEW OF A 3-POSITION PACKARD CONNECTOR
1. Identification letters
To remove terminal from Packard connector hous-
ing, use Snap-on TT600-4 tool.
F04H6LA
1 1
F04H45A
1
A
BC
F01B1JA
