SeaSTAR OPTIMUM EPS - Page 58

© 2014 SeaStar Solutions Optimus Installation Manual, Rev. E
5-16
ION
CAUTION
T
T
T
T
Use plastic spacer
to ensure there is no
metal to metal contact
TORQUE
to 22ft.lb.
TORQUE
to 22ft.lb.
TORQUE
to 45ft.lb.
TORQUE
to 33ft.lb.
TORQUE
to 45ft.lb.
TORQUE
to 33ft.lb.
YAMAHA/HONDA SUZUKI
* Twin engine applications only.
Consult SeaStar for triple and
quad applications with tiebars.
T
= TORQUE
POINT
T
T
MOUNT UNDER TILLER ARM
AND IN REAR HOLE
MOUNT OVER TILLER ARM
AND IN REAR HOLE
2*
1
ENGINE
MANUFACTURER
YEAR MODEL CYLINDER* NOTE
YAMAHA
2007 TO DATE F300-350 HP 5.3 V8 EC5310 or EC6810 (SEE BELOW)
2007 TO DATE 350 Hp (see note below) EC5310 or EC6810 (SEE BELOW)
HONDA
2001 TO 2009 150-225 HP 4 STROKE EC5310 or EC6810 (SEE BELOW)
2010 TO DATE 115 HP EC5310 or EC6810 (SEE BELOW)
SUZUKI
1986 TO DATE 150-300 HP EC5340 or EC6840 (SEE BELOW)

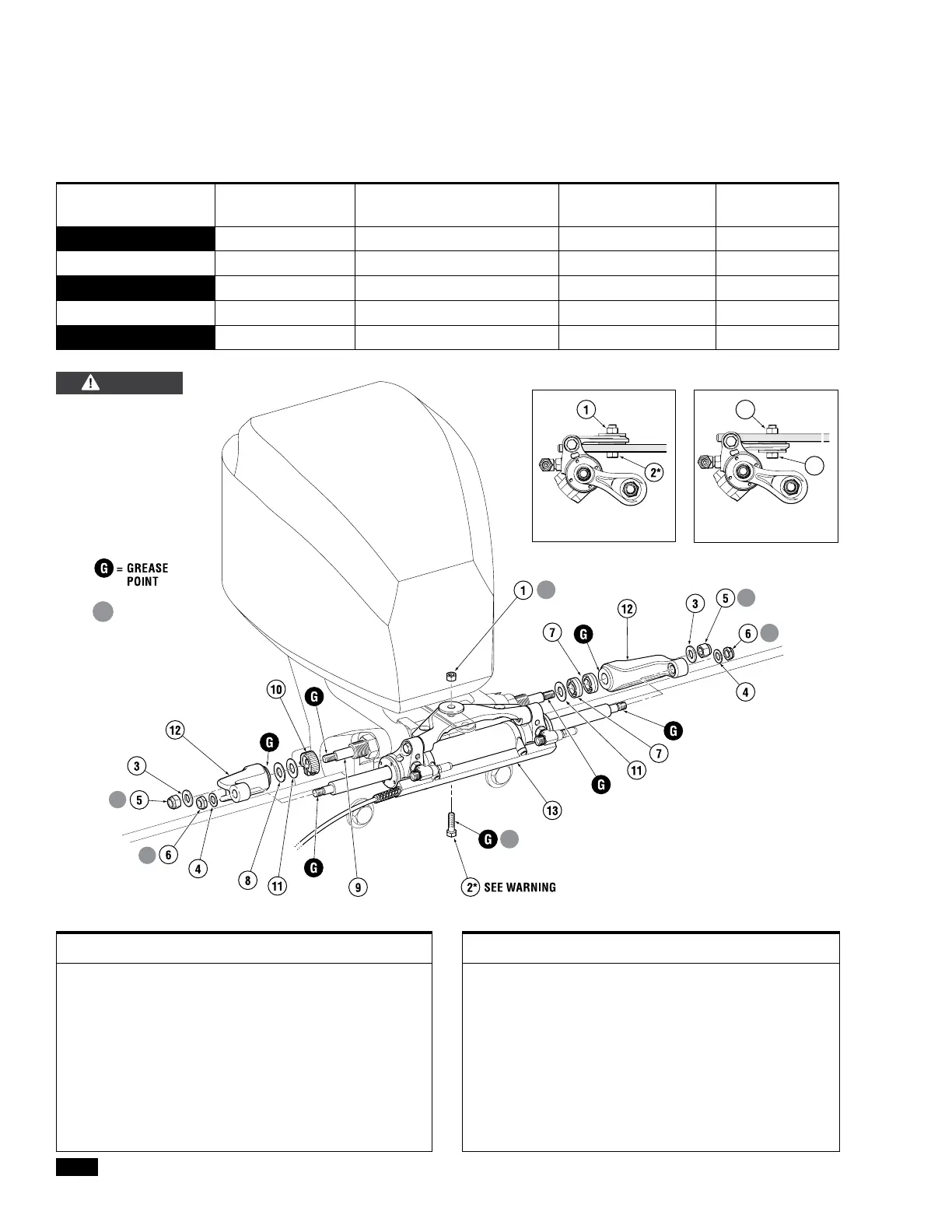

Fi gure 5 -17.
ITEM PART # QTY DESCRIPTION
*1 113529 1 Nut, 3/8” NF Nylok
®
SS
*2 113225 1 HHCS 38” UNJFX 1.35 HSS
3 731625 2 Washer, Flat, 7/16” SS
*4 731720 2 Nut, 7/16” NF Nylok
®
SS
5 202027 2 Washer, Flat, 1/2” SS
*6 192126 2 Nut, 1/2” NF Nylok
®
NI Plate Br
7 995876 2 Spacer, Thick
8 996689 1 Spacer, Thin
ITEM PART # QTY DESCRIPTION
9 730229 1 Support Rod
10 828085 1 Adjusting Nut & Screw, SS,
Teflon Coated
11 202300 2 Washer, Flat, 5/8” SS
12 839120 2 Support Brackets
13 907099 1 SmartCylinder (EC5310) or
907033 1 SmartCylinder (EC5340)
14 728994 1
Spacer, Medium (some 1996 to 1998)
15 113350 1 HHCS 3/8” NF x 1-1/2” SS
