SeaSTAR OPTIMUM EPS - Page 57

© 2014 SeaStar Solutions Optimus Installation Manual, Rev. E
5-15
CAUTION
* Twin engine applications only.
Consult SeaStar for triple and
quad applications with tiebars.
EC5340EC6810
9
12
4
6
5
3
13
5
6
3
4
7
12
11
G
G
G
G
G
G
G
10
11
7
2*
2*
SEE WARNING
MOUNT UNDER TILLER ARM
AND IN REAR HOLE
MOUNT UNDER TILLER ARM
AND IN REAR HOLE
1
1
1
G
= GREASE
POINT
T
T
T
T
T
T
T
= TORQUE
POINT
Use plastic spacer
to ensure there is no
metal to metal contact
TORQUE
to 22ft.lb.
TORQUE
to 22ft.lb.
TORQUE
to 45ft.lb.
TORQUE
to 33ft.lb.
TORQUE
to 45ft.lb.
TORQUE
to 33ft.lb.
ENGINE
MANUFACTURER
YEAR MODEL CYLINDER* NOTE
JOHNSON/EVINRUDE
2007 TO DATE 3.3L V6 200-250 HP
3.4L V6 250H.O-300 HP
EC5340 or EC6810
EC5340 or EC6810

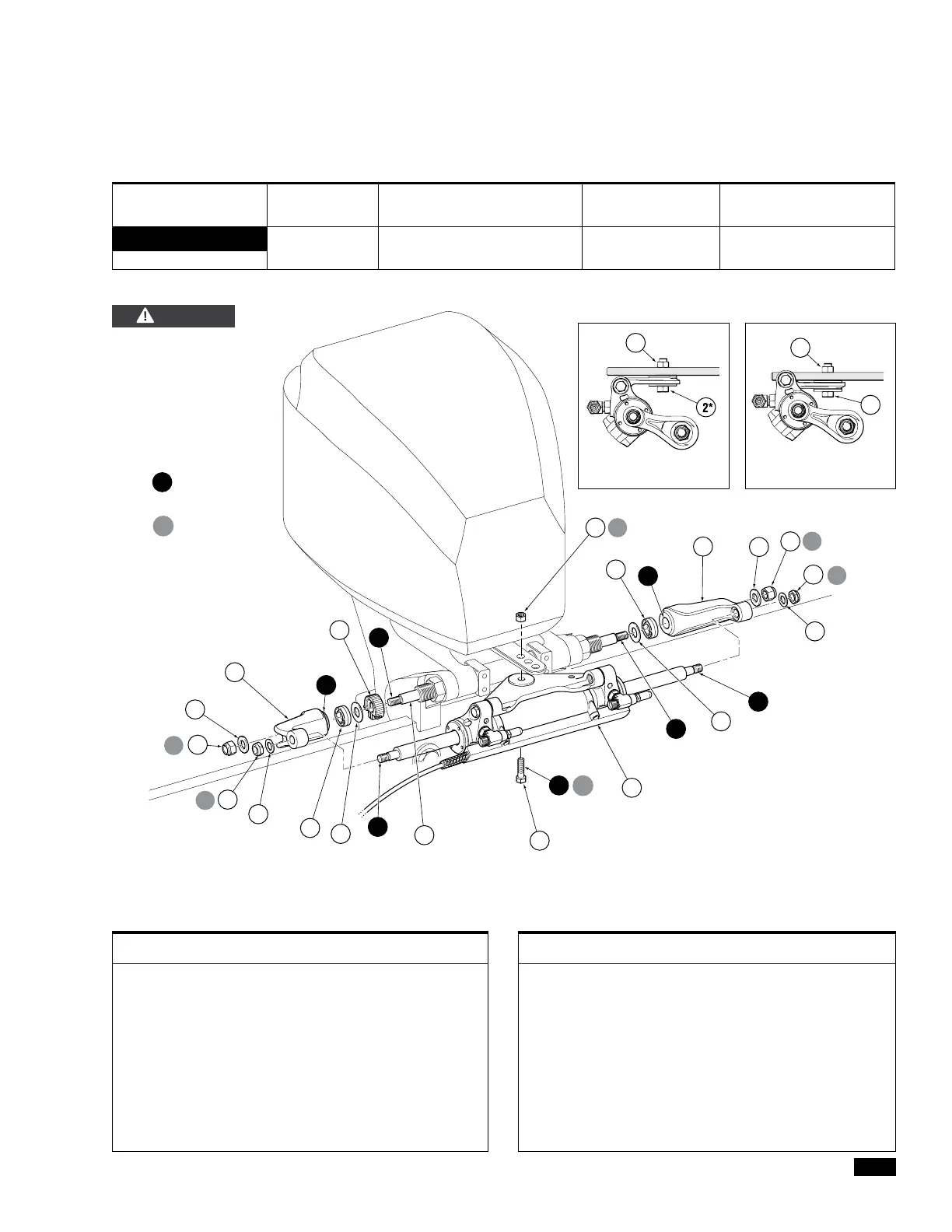

Figure 5-16.
ITEM PART # QTY DESCRIPTION
*1 113529 1 Nut, 3/8” NF Nylok
®
SS
*2 113225 1 HHCS 3/8” UNJF x 1.35” HSS
3 731625 2 Washer Flat, 7/16” SS
*4 731720 2 7/16” NF Nylok
®
SS
5 202027 2 Washer, Flat 1/2” SS
*6 192126 2 Nut 1/2” NF Nylok
®
NI Plate Br
7 995876 2 Spacer, Thick, Plastic
8 996689 1 Spacer, Thin, Plastic
ITEM PART # QTY DESCRIPTION
9 730229 1 Support Rod
10 828085 1 Adjusting Nut & Screw SS,
Teflon Coated
11 202300 2 Washer, Flat 5/8” SS
12 839120 2 Support Brackets
13 907099 1 Pivot Mount Cylinder
14 728994 1 Spacer, Medium (Not Used)
15 113330 1 HHCS, 3/8” NF x 1-3/8” SS
