SeaSTAR OPTIMUM EPS - Page 56

© 2014 SeaStar Solutions Optimus Installation Manual, Rev. E
5-14
.
T
= TORQUE
POINT
= GREASE
POINT
* Twin engine applications only.
Consult SeaStar for triple and
quad applications with tiebars.
T
TORQUE
to 22ft.lb.
T
TORQUE
to 22ft.lb.
T
TORQUE
to 45ft.lb.
T
TORQUE
to 33ft.lb.
T
TORQUE
to 45ft.lb.
T
TORQUE
to 33ft.lb.
CAUTION
Use plastic spacer
to ensure there is no
metal to metal contact
ENGINE
MANUFACTURER
YEAR MODEL CYLINDER* NOTE
MERCURY
1990 TO DATE
2002 TO DATE
2002 TO DATE
2002 TO DATE
75–250 HP
250SX & 300XS
90–225 HP Optimax
90–200 HP Verado
EC5310 or EC6810
EC5310 or EC6810
EC5310 or EC6810
EC5310 or EC6810

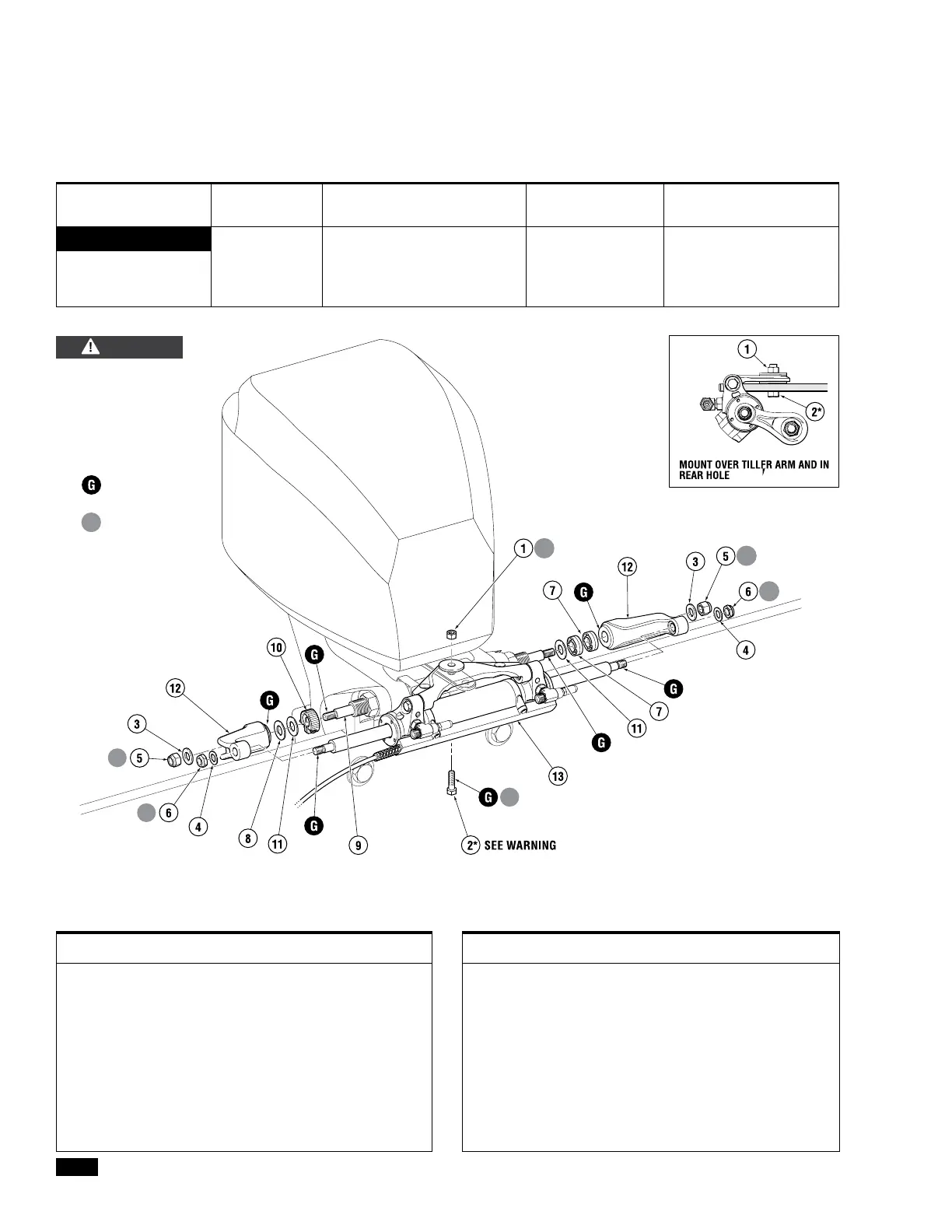

Figure 5-15.
ITEM PART # QTY DESCRIPTION
*1 113529 1 Nut, 3/8” NF Nylok
®
SS
*2 113225 1 HHCS 3/8” UNJF x 1.35” HSS
3 731625 2 Washer Flat, 7/16” SS
*4 731720 2 Nut, 7/16” NF Nylok
®
SS
5 202027 2 Washer, Flat 1/2” SS
*6 192126 2 Nut 1/2” NF Nylok
®
NI Plate Br
7 995876 2 Spacer, Thick
8 996689 1 Spacer, Thin
ITEM PART # QTY DESCRIPTION
9 730229 1 Support Rod
10 828085 1 Adjusting Nut & Screw SS,
Teflon Coated
11 202300 2 Washer, Flat 5/8” SS
12 839120 2 Support Brackets
13 907099 1 Pivot Mount Cylinder
14 728994 1 Space, Medium (Not Used)
15 113350 1 HHCS 3/8” NF x 1-1/2” SS
