© 2014 SeaStar Solutions Optimus Installation Manual, Rev. E
5-26
SmartCylinder Harness Bulkhead Installation
If a bulkhead connector is used for a cylinder harness, run the
SmartCylinder harness close to the hoses and secure to hoses with
cable ties.
The SmartCylinder Harness is supplied with a bulkhead plate pre-
installed. The cable end requires a one inch through hole. Position
the bulkhead plate close to the hydraulic hose bulkhead plate(s) so
that the SmartCylinder harness can be secured to the hoses.

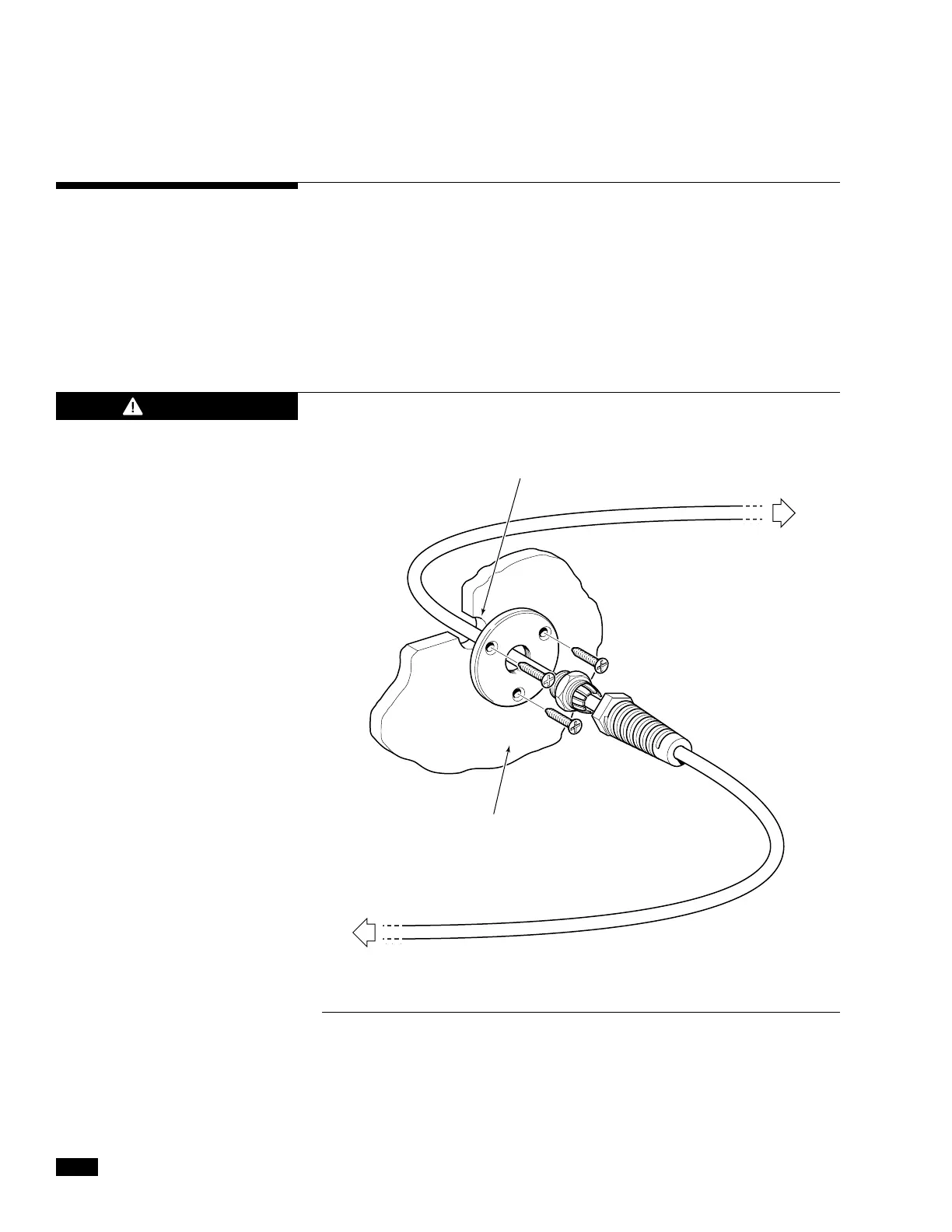

BULKHEAD
1.0" THRU HOLE
TO SMARTCYLINDER
TO PCM
DO NOT INSTALL BULKHEAD HOSES BELOW THE WATERLINE.
Figure 5-27.
WARNING
