3.4. HOW TO CONFIGURE SBF AND NMEA OUTPUT
SBF
By clicking ‘New SBF stream’, a second output stream can be configured. In the example
shown in Figures 3-14 and 3-15 the PVTCartesian SBF data block will be output over COM1
once per second.

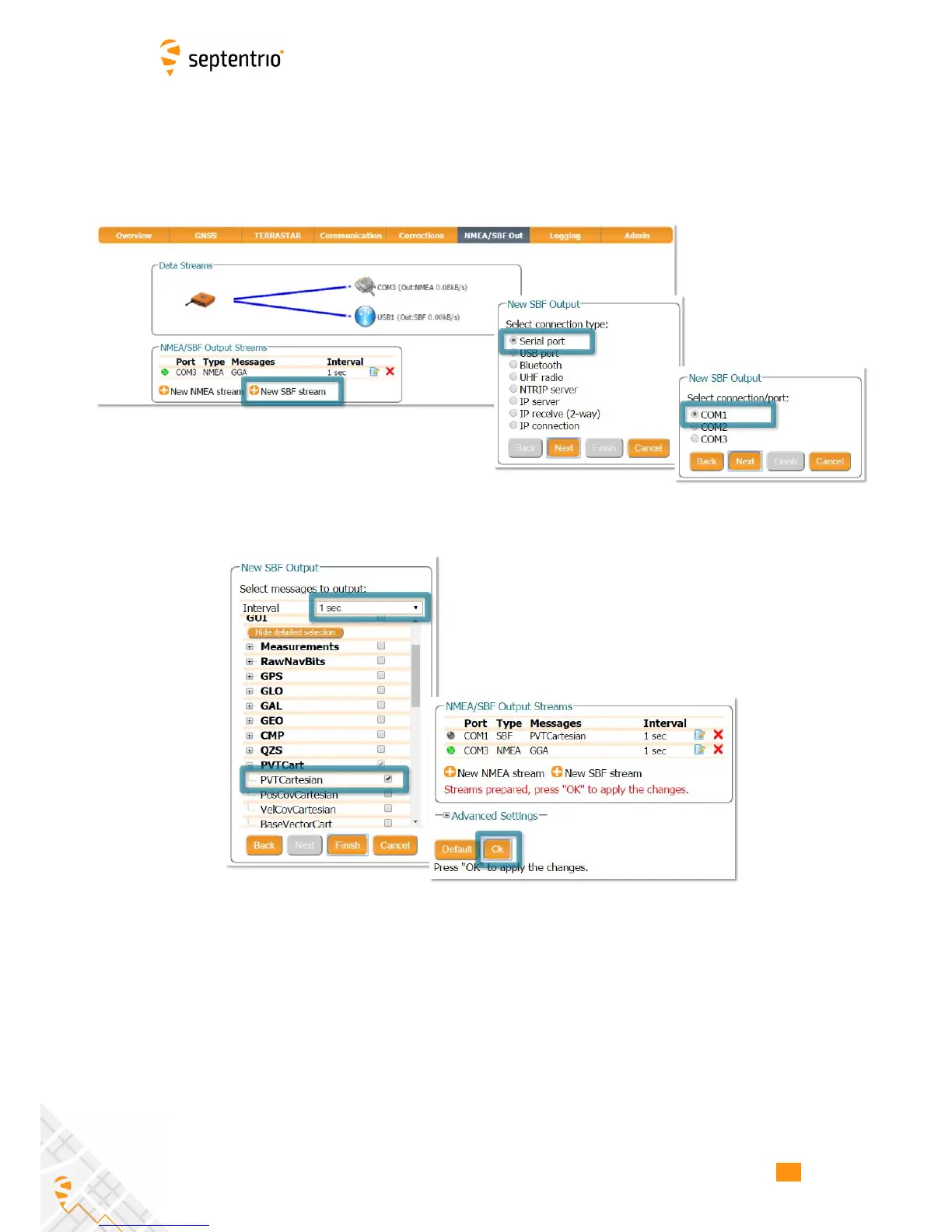

Figure 3-14: Selecting to output SBF data on COM1
Figure 3-15: Selecting to output the PVTCartesian SBF block every second
23
