3.4. HOW TO CONFIGURE SBF AND NMEA OUTPUT
Step 3: Verifying the configuration
Having configured data output and clicked on ‘Ok’ the ‘NMEA/SBF Out’ page will now display
a summary of all data output as shown in Figure 3-16.

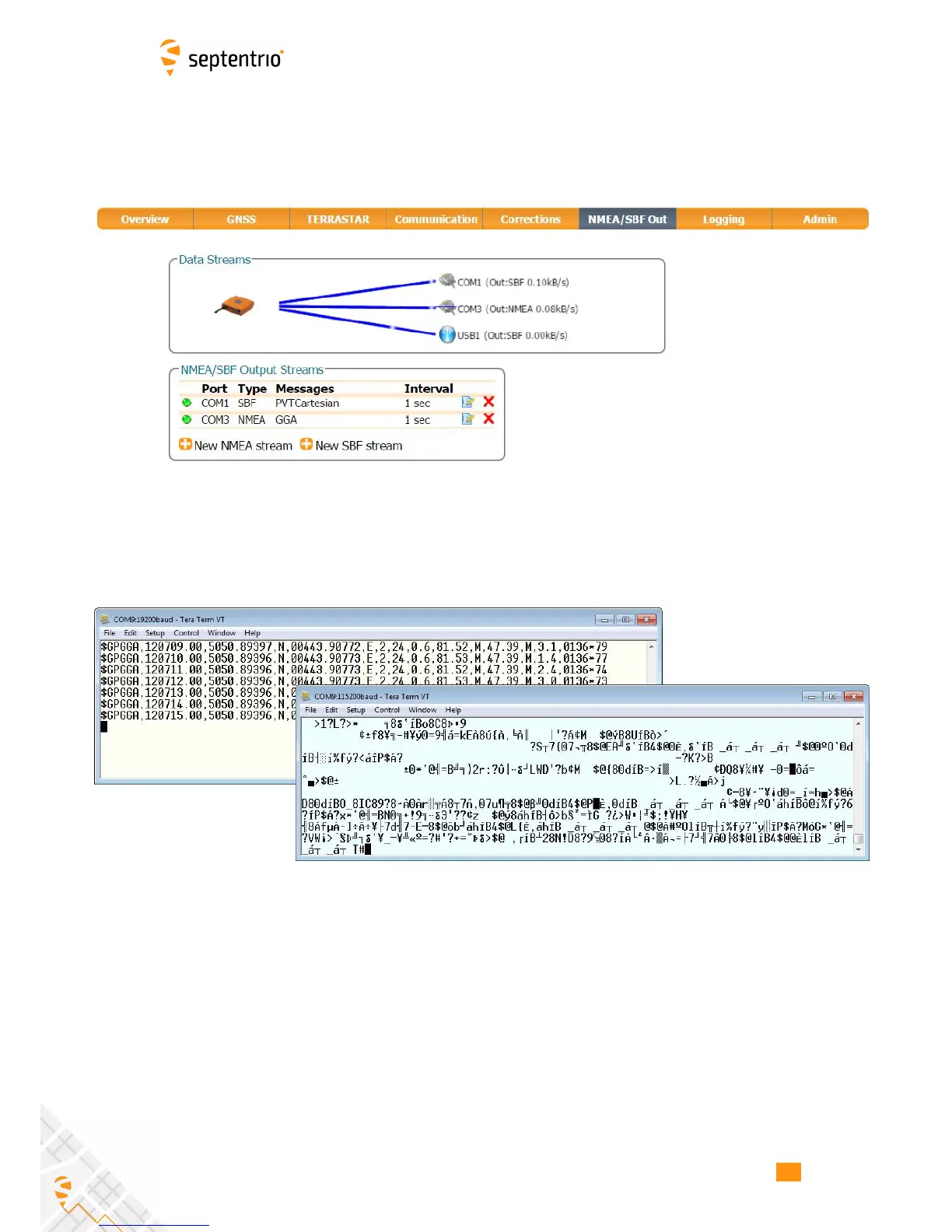

Figure 3-16: Summary of all configured data output streams
Figure 3-17 shows the actual data output. NMEA is in ASCII and is thus readable unlike SBF
which is formatted in binary. In this example, the serial COM was connected to a PC via a
USB adapter which maps the serial connection to a virtual COM9 of the PC.
Figure 3-17: Example showing output NMEA GGA (left panel) and SBF
PVTCartesian (right panel)
