5.1. HOW TO CONFIGURE THE ASTERX-U AS AN RTK BASE STATION USING THE UHF RADIO
Step 3: Configuring the UHF radio
The UHF radio can be configured in the ‘UHF’ window. In the example show in Figure 5-4, the
radio will transmit at a frequency of 410 MHz, channel spacing of 12.5 kHz and at a power of
100 mW
1
. The transmission protocol and error method can also be selected on this page as
shown.
The frequency and bandwidth are configured via the Advanced Settings menu. Note that,
the baud rate of the connection depends on the Protocol and Bandwidth settings as given
in Appendix 9.2.

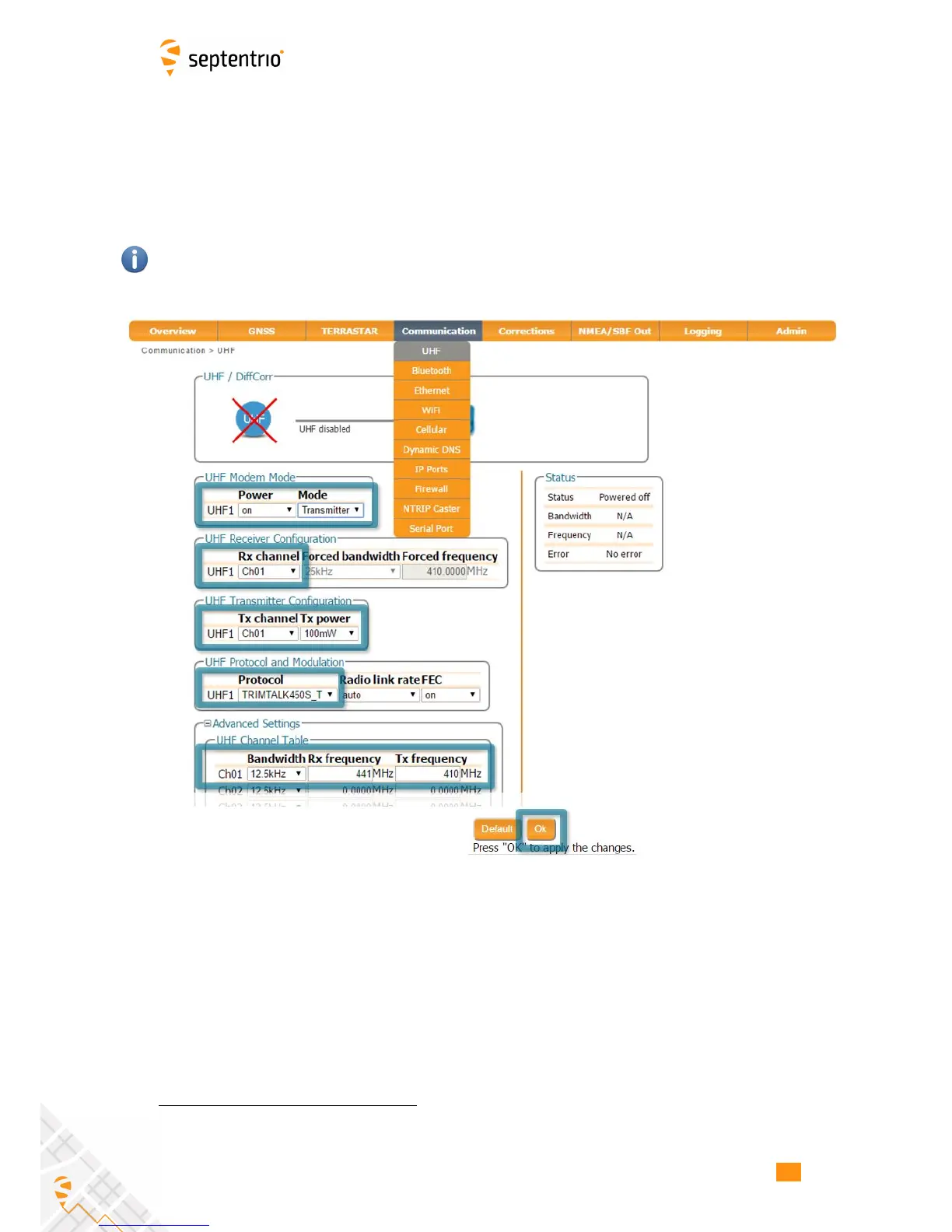

Figure 5-4: Configuring the UHF radio
1
Please note that, depending on your location, you may be prohibited from transmitting on certain
frequencies or at certain power levels.
55
