Manual – DFE32B Fieldbus Interface PROFINET IO
4
Installing the DFE32B option card in MOVIDRIVE® MDX61B
Assembly and Installation Notes
4 Assembly and Installation Notes
This section contains information about assembly and installation of the DFE32B
PROFINET IO option card in the MOVIDRIVE
®
MDX61B, MOVITRAC
®
B and UOH11B
gateway housing.
4.1 Installing the DFE32B option card in MOVIDRIVE
®
MDX61B
INFORMATION
• Only SEW-EURODRIVE engineers are allowed to install or remove option
cards for MOVIDRIVE
®
MDX61B size 0.
• Users may only install or remove option cards for MOVIDRIVE
®
MDX61B siz-
es 1 to 6.
• Plug the DFE33B PROFINET IO option card into the fieldbus slot [1].
• Only use connectors and cables approved for PROFINET IO when cabling.

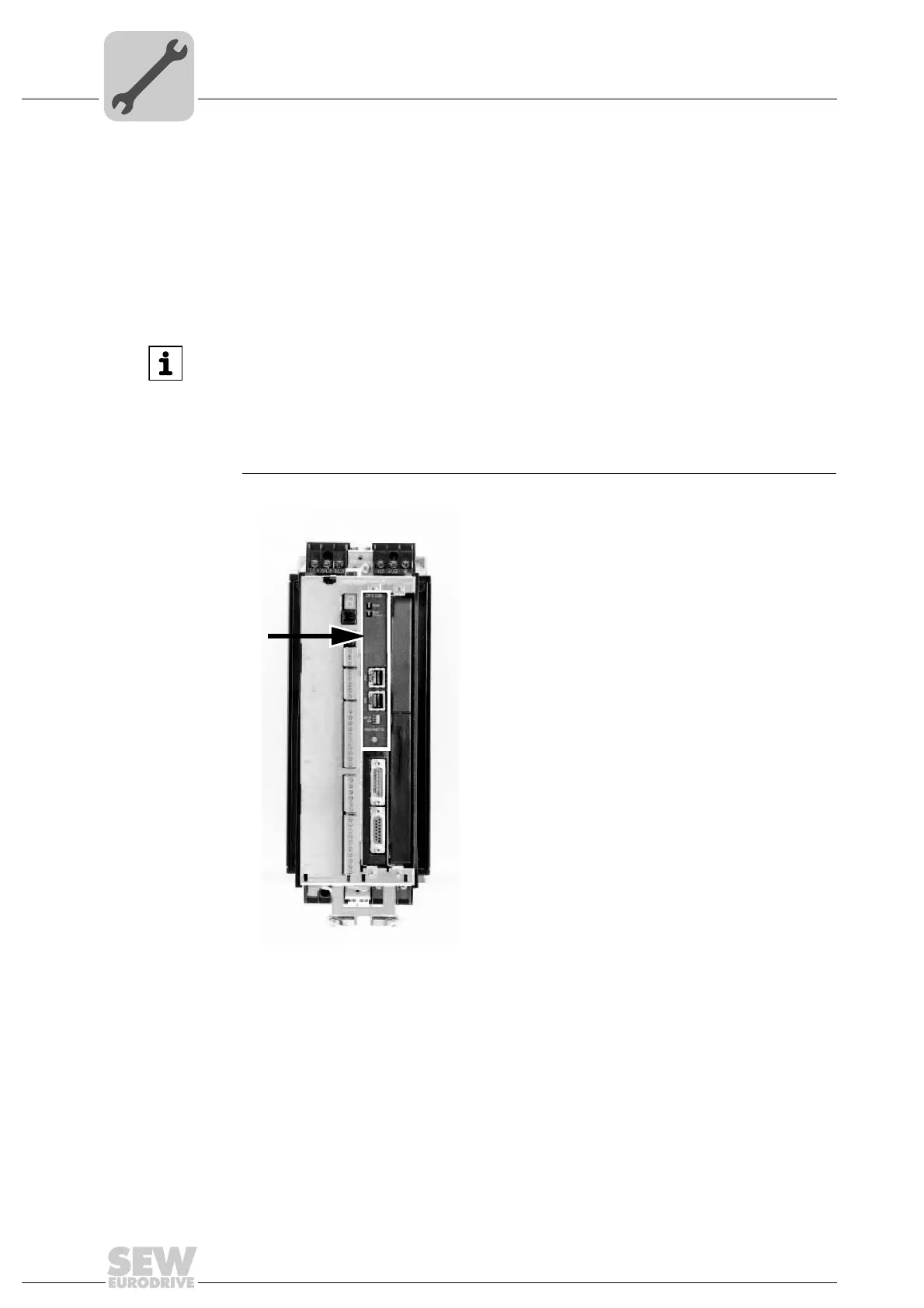

62179AXX
[1]
