SEW-Eurodrive MOVIFIT basic - 3 Unit Structure; MOVIFIT Basic; Variants

10
Operating Instructions – MOVIFIT® basic
3
MOVIFIT
®
basic
Unit structure
3 Unit structure
3.1 MOVIFIT
®
basic
MOVIFIT
®
basic is a decentralized drive unit for controlling AC motors.
3.2 Variants
MOVIFIT
®
basic is available in the following variants:
MOVIFIT
®
basic is available with the following control units:
• Drives with AS-Interface
• Control unit with binary signal inputs and outputs

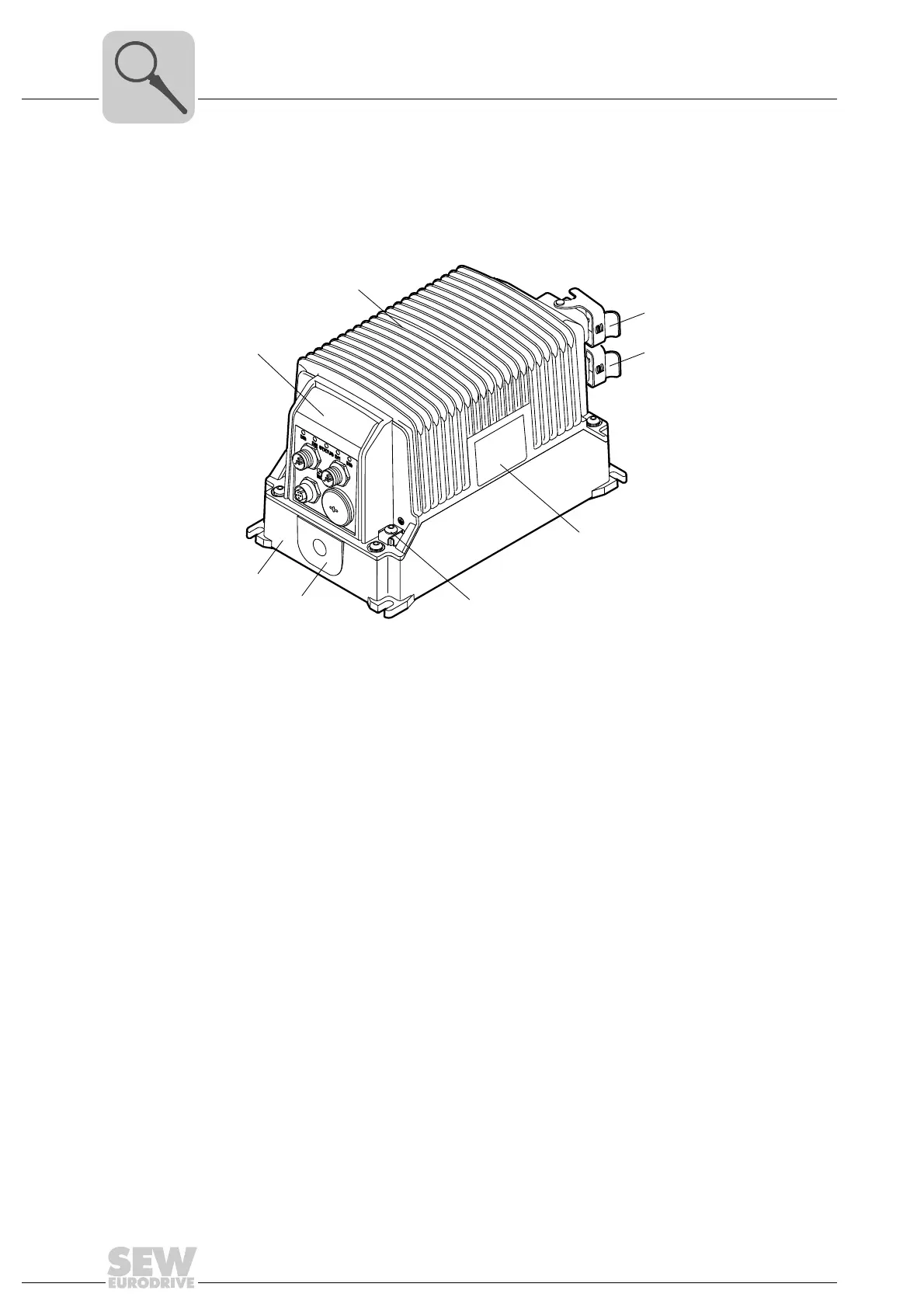

2816397195
[1] Control unit
[2] EBOX with cooling fins and electronics (inverter or motor starter)
[3] X8 connection for motor (only with dual motor starter design)
[4] X9 connection for motor
[5] Nameplate
[6] PE connection
댷 (outside)
[7] Cable seal for cable diameter 13 – 15 mm
[8] ABOX with FieldPower contact module (connection unit)
[1]
[2]
[4]
[5]
[6]
[7]
[8]
[3]
• Inverter For 1 motor with CW and CCW operation and 4 setpoint speeds
• Dual motor starter For 2 motors with 1 direction of rotation each
The direction of rotation depends on the phase
sequence.
• Reversing starter For 1 motor with CW and CCW operation
