Mounting position
Mechanical installation
4.2 Mounting position
You can install the MOVIFIT
®
basic unit in any mounting position.
4.3 Installing MOVIFIT
®
basic
Mount the MOVIFIT
®

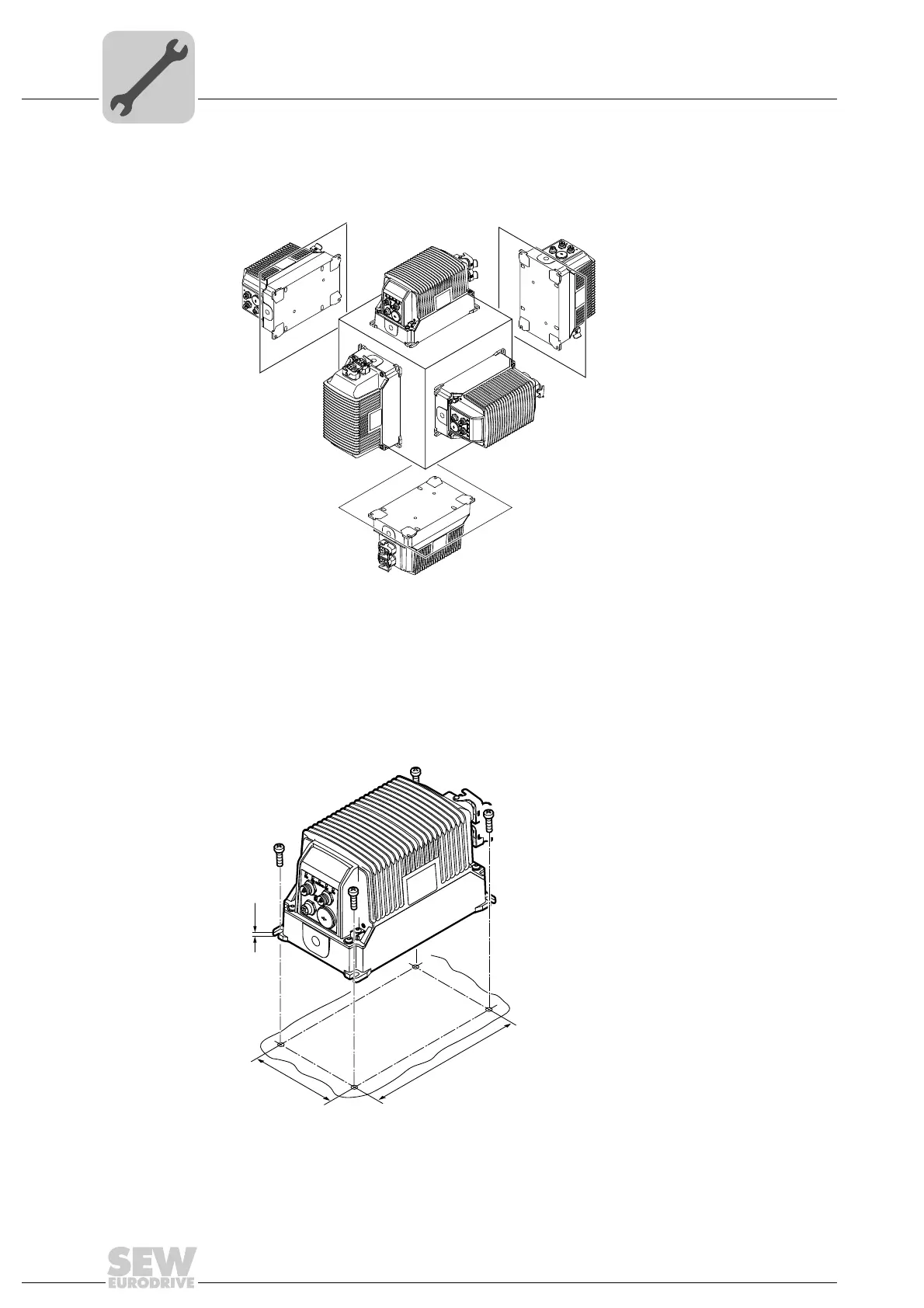

basic unit with 4 screws according to the following figure:
(Tightening torque 2.0 – 2.4 Nm (18 – 21 lb.in))
2816420235
M1
M2
M5
M3
M4
M6
9007202071159307
239
134
6
M5
