Description of the MB-LC keypad
Operation
7.2 Description of the MB-LC keypad
7.2.1 Function
You can use the MB-LC keypad to operate MOVIFIT
®
basic units (inverter and motor
starter) in manual mode. In addition to that, the keypad displays important information
about the state of the drive.
7.2.2 Features
• Illuminated display
• Keypad with 5 keys
• Connection cables
7.2.3 Key assignment

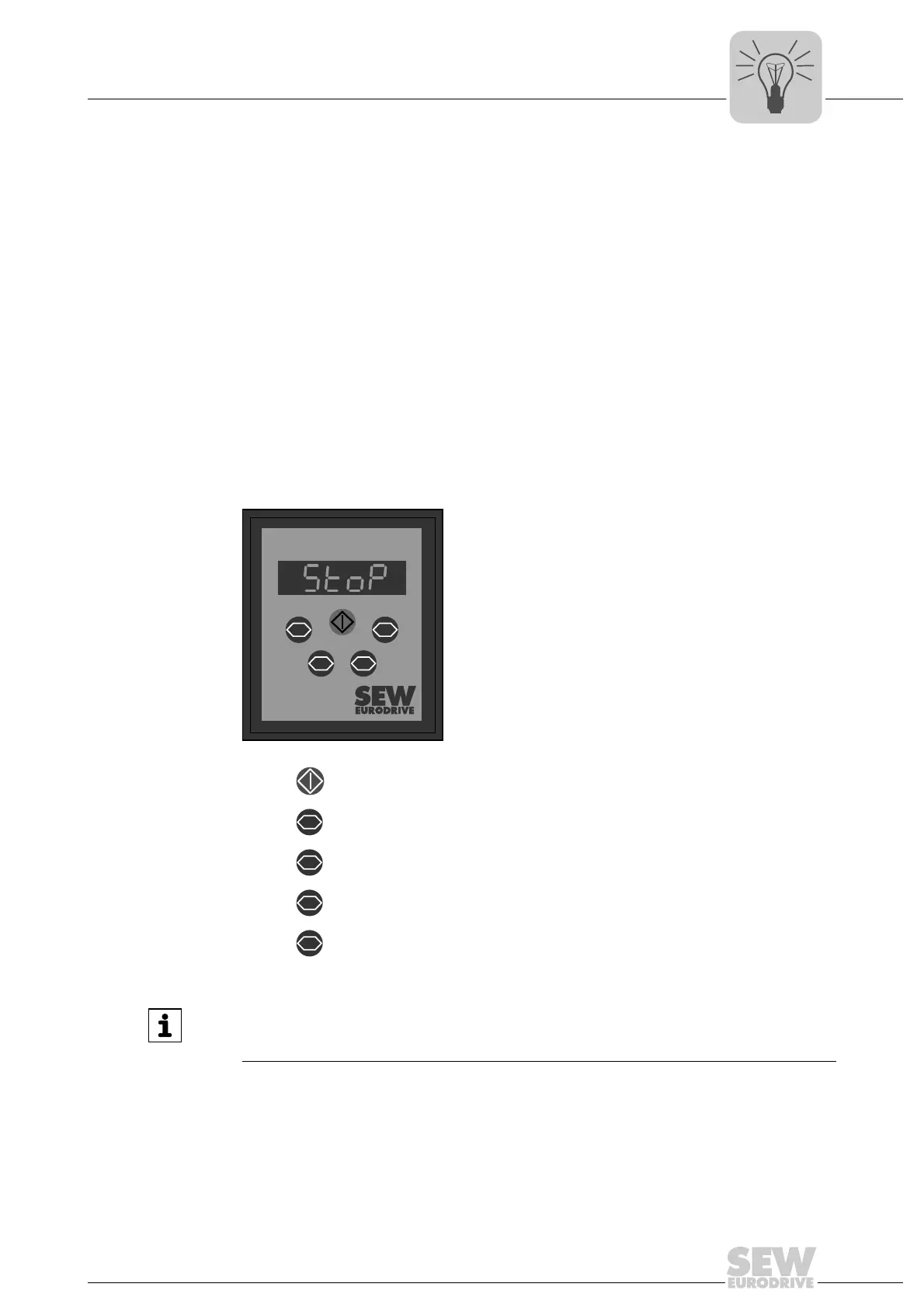

The following figure shows the key assignment of the MB-LC keypad:
4839204747
Key Activation/deactivation of manual mode with the MB-LC keypad
Key Setting/resetting of bit DO0 of the MOVIFIT
®
basic drive
Key Setting/resetting of bit DO1 of the MOVIFIT
®
basic drive
Key Setting/resetting of bit DO2 of the MOVIFIT
®
basic drive
Key Setting/resetting of bit DO3 of the MOVIFIT
®
basic drive
03
MOVIFIT basic LC-PAD
®
12
0
1
2
3
INFORMATION
For a description of the functions the drive performs based on the control bit settings,
refer to chapter "MOVIFIT® basic – manual mode (page 59).
