Control unit connection
Electrical installation
5.5 Control unit connection

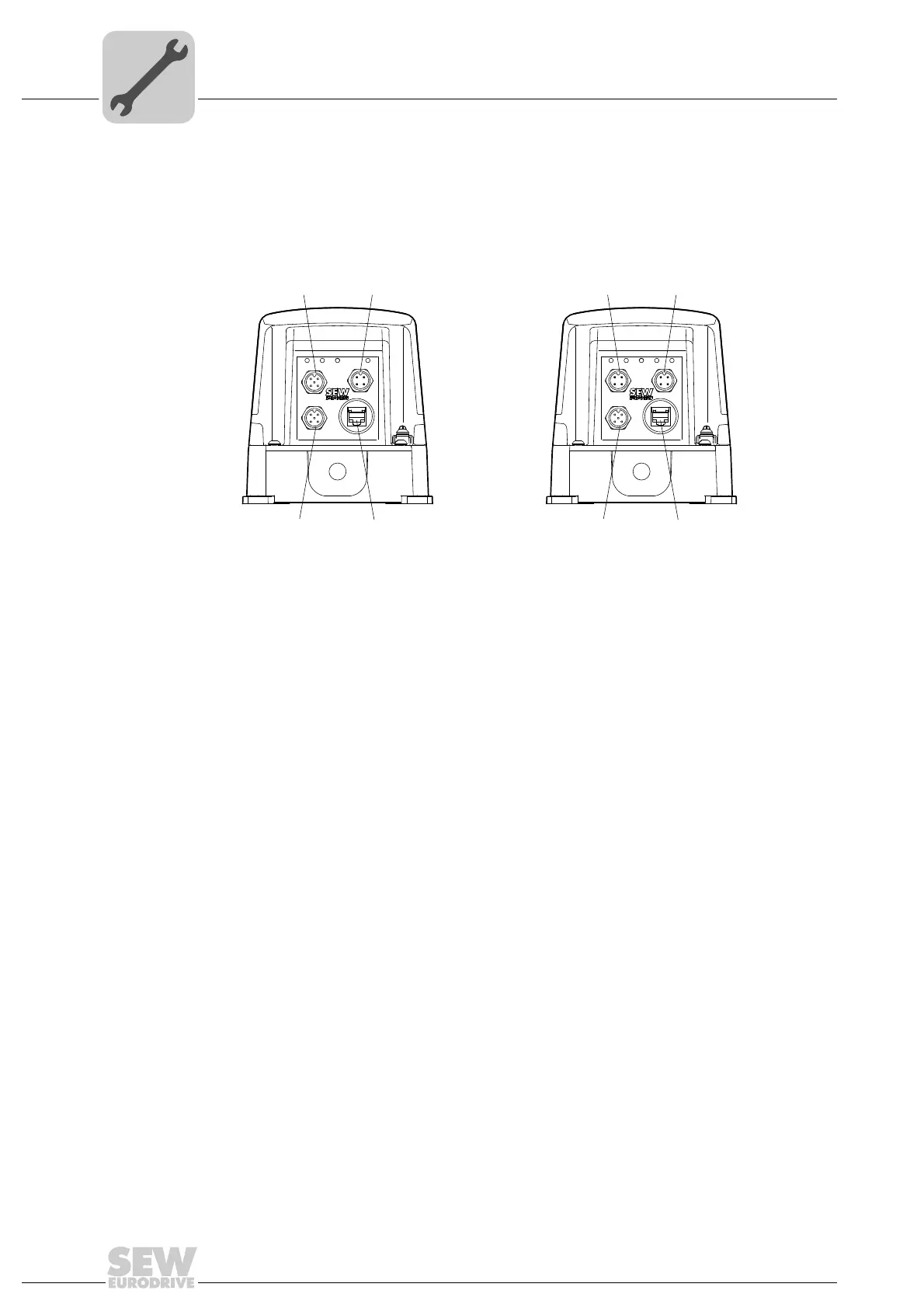

The following figure shows the control unit variants for MOVIFIT
®
basic:
MOVIFIT
®
basic with AS-Interface MOVIFIT
®
basic with binary control
9007202071153547 2816402955
[1] X22 Binary input sensor 2 [5] X12 Signal inputs DI2 + DI3
[2] X21 AS-Interface connection [6] X11 Signal inputs DI0 + DI1
[3] X50 Diagnostic interface [7] X50 Diagnostic interface
[4] X23 Binary input sensor 3 [8] X13 Signal outputs DO0 + DO1
DI3 DI2
STATUS
[1]
[4] [3]
[2]
AS-Interface
DI3 DI2 DI1 DI0
STATUS
[5]
[8] [7]
[6]
