Motor connection
Electrical installation
5.4 Motor connection
5.4.1 Motor connection variants

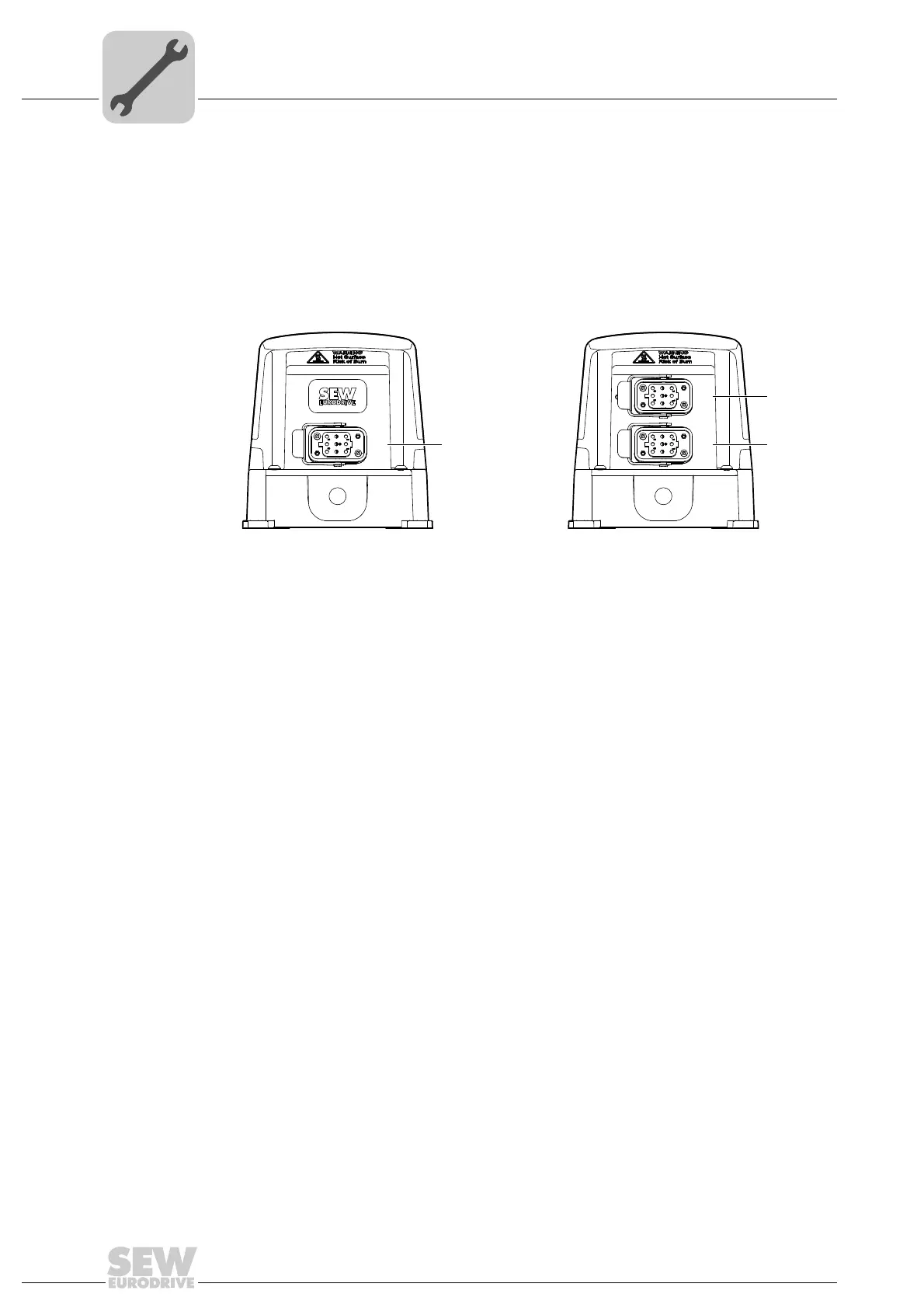

The following figure shows the motor plug connector variants for MOVIFIT
®
basic:
MOVIFIT
®
basic inverter
MOVIFIT
®
basic reversing starter
MOVIFIT
®
basic dual motor starter
2816406795 2816404875
[1] X9 Motor connection
[2] X8 Motor connection
[1]
X8
X9
[2]
[1]
X8
X9
