Operating Instructions – MOVIFIT® basic
25
5
Motor connection
Electrical installation
5.4.2 X9, (X8): Motor connection
The X8 plug connector is only available in conjunction with MOVIFIT
®
basic with dual-
motor starter
Connection The following table provides information about this connection:
Function
Power connection for motor with brake
Connection type
Q 8/0, female

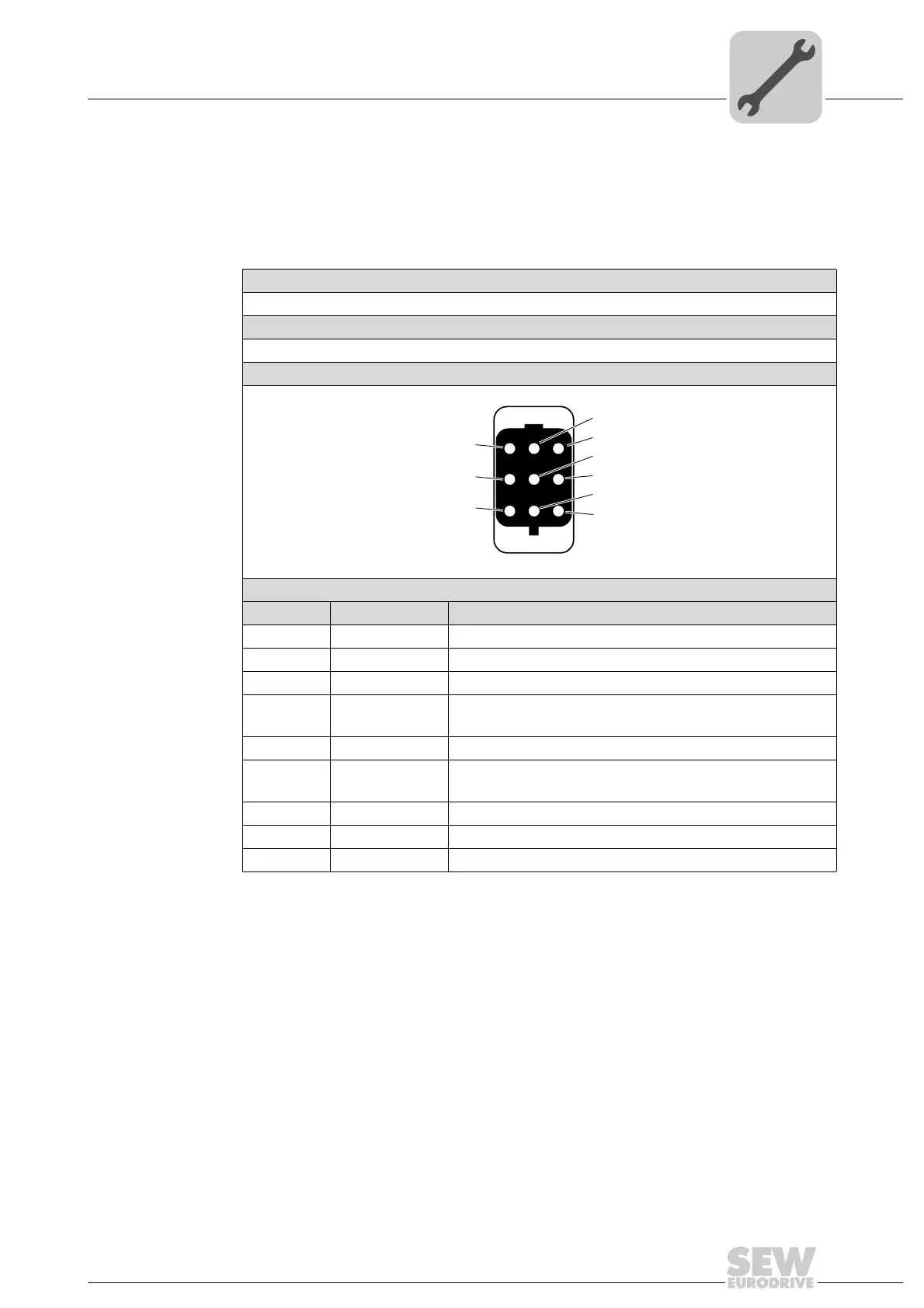

Wiring diagram
2441429259
Assignment
No. Name Function
1 U Motor phase U output
2 n. c. Not connected
3 W Motor phase W output
4 L1 Supply of mechanical brake
(only with MOVIFIT
®
basic inverter)
5 n. c. Not connected
6 L2_S Supply of mechanical brake switched
(only with MOVIFIT
®
basic inverter)
7 V Motor phase V output
8 n. c. Not connected
PE PE Protective earth
8
5
3
1
2
4
PE
6
7
