Parameterization with LT-BG keypad
Startup
6.6 Parameterization with LT-BG keypad
6.6.1 Description of LT-BG keypad
Function You can use the LT-BG keypad for startup, parameterization and manual operation of
MOVIFIT
®
basic inverters. In addition to that, the keypad displays important information
about the state of the drive.
Features • Illuminated display
• Keypad with 5 keys
• Connection cable

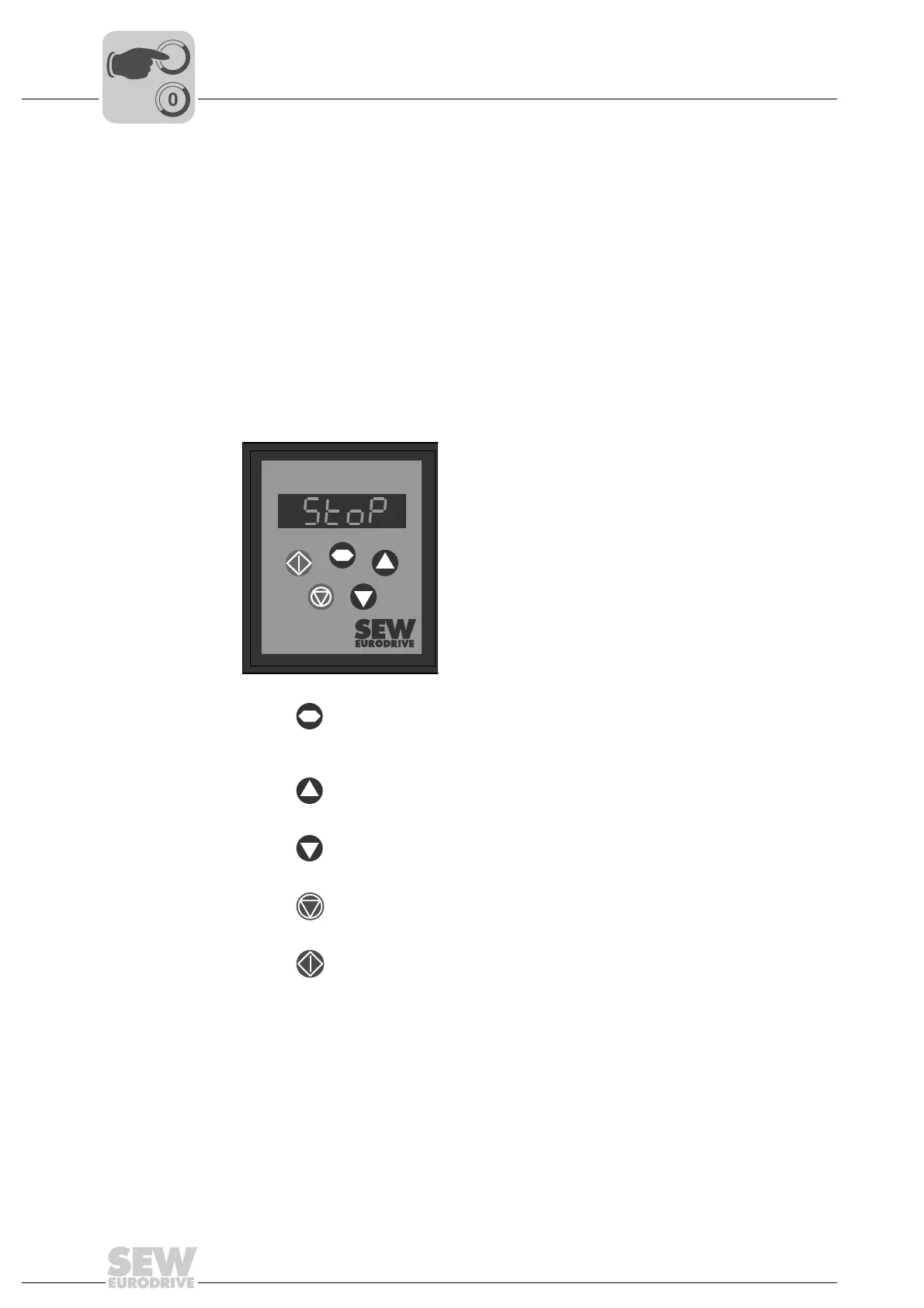

Key assignment The following figure shows the key assignment of the LT-BG operator terminal:
2669822603
Key Navigate • Switch menu
• Saving parameter values
• Show real-time information
Key Up • Increase speed
• Increase parameter values
Key Down • Decrease speed
• Decrease parameter values
Key Stop • Stop the drive
• Reset the drive
Key Start • Enabling the drive
• Changing the direction of rotation
00
I
