Operating Instructions – MOVIFIT® basic
41
6
Assigning the AS-Interface slave address
Startup
6.5.1 Assigning the slave address using a hand-held programming device
Hand-held AS-Interface programming devices offer the following functions:
• Reading out and changing an AS-Interface slave address
• Reading out the AS-Interface profile
• Reading out and changing the data and parameter bits
• Function check and test run.

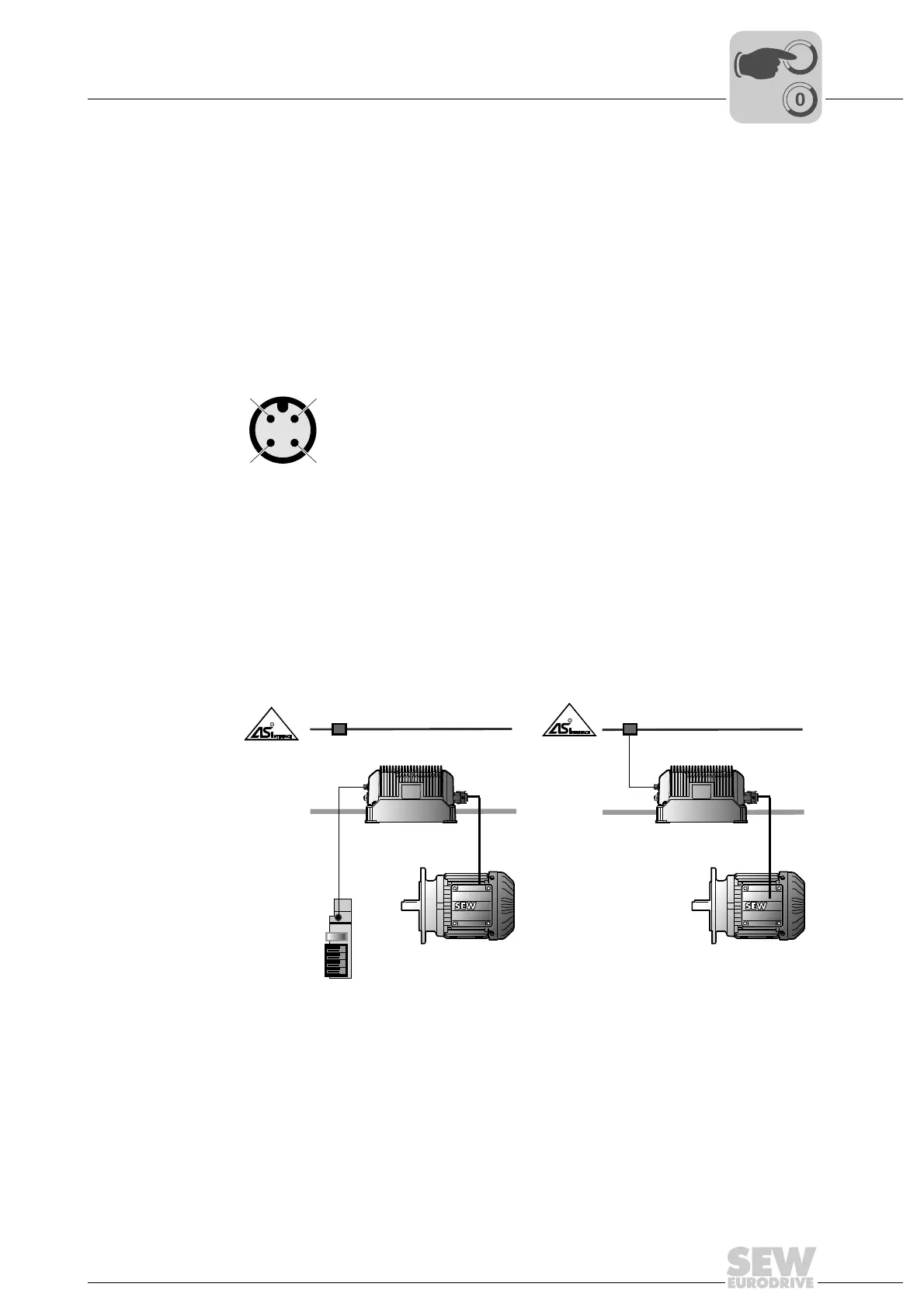

When using a hand-held programming device, you need a connection cable that fits onto
the AS-Interface plug connector X21 of MOVIFIT
®
basic (see the following figure).
Example:
1. Disconnect the AS-Interface nodes from the AS-Interface network one at a time and
assign addresses via the hand-held programming device (A).
2. Then reconnect the respective AS-Interface node to the AS-Interface network (B).
2384154763
1: AS-Interface +
2. n. c.
3: AS-Interface −
4: n. c.
9007202092542475
[1] AS-Interface hand-held programming device
2
1
4
3
A
B
MOVIFIT basic
[1]
®
MOVIFIT basic
®
00
I
