Connections of MOVIFIT
®
basic with AS-Interface
Electrical installation
5.6 Connections of MOVIFIT
®
basic with AS-Interface

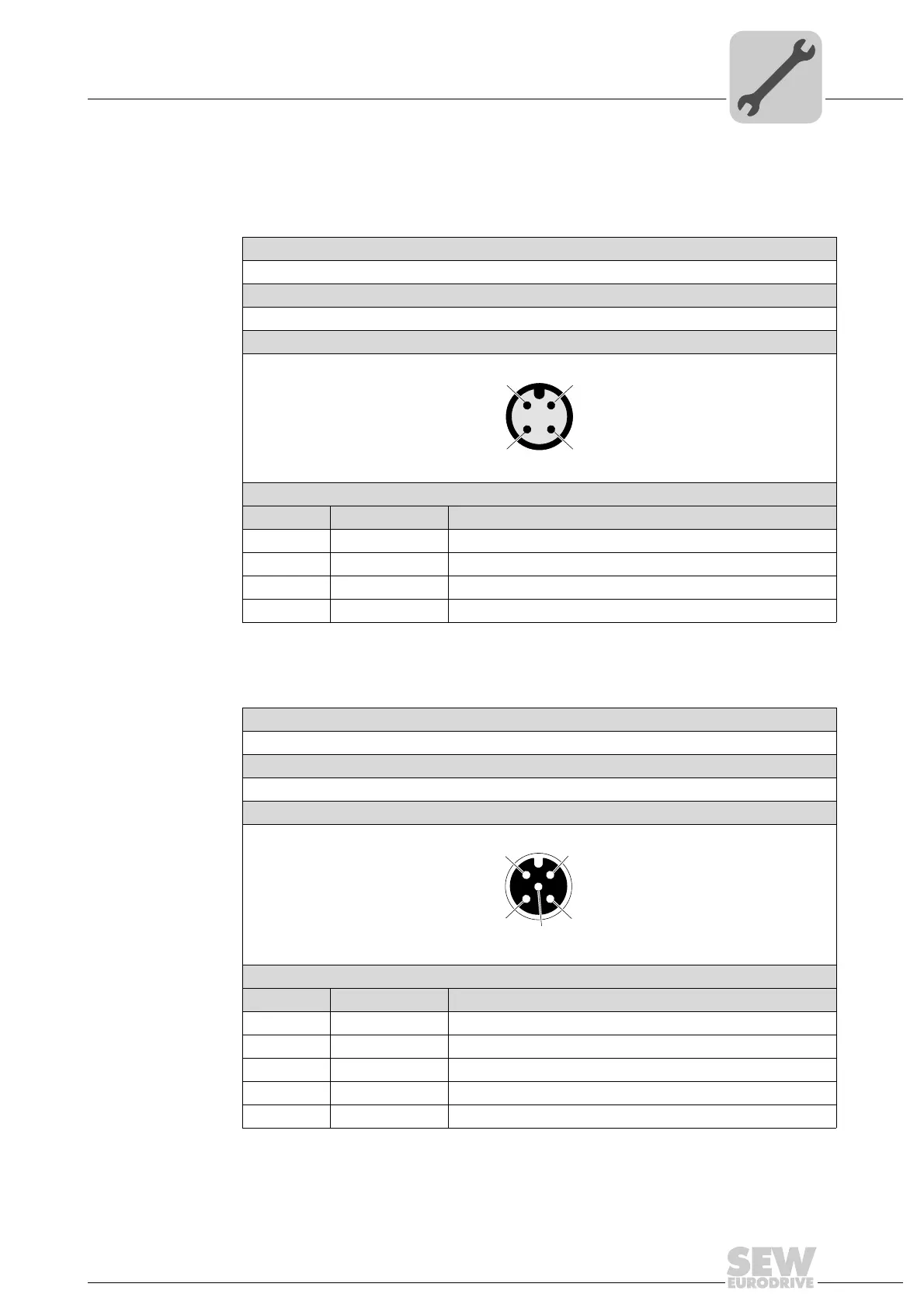

5.6.1 X21: AS-Interface connection
The following table provides information about this connection:
5.6.2 X22: Binary input sensor 2
The following table provides information about this connection:
Function
AS-Interface – input
Connection type
M12, 4-pole, male, A-coded
Wiring diagram
2384154763
Assignment
No. Name Function
1 AS-Interface + AS-Interface +
2 n. c. Not connected
3 AS-Interface − AS-Interface −
4 n. c. Not connected
2
1
4
3
Function
Binary input sensor 2
Connection type
M12, 5-pole, female, A-coded
Wiring diagram
2264816267
Assignment
No. Name Function
1 +24 V DC 24 V output (sensor supply)
2 n. c. Not connected
3 0V24 0V24 reference potential
4 DI2 Binary input sensor 2
5 PE Equipotential bonding/protective earth conductor
1
4
3
2
5
