Power bus connection (line cable)
Electrical installation

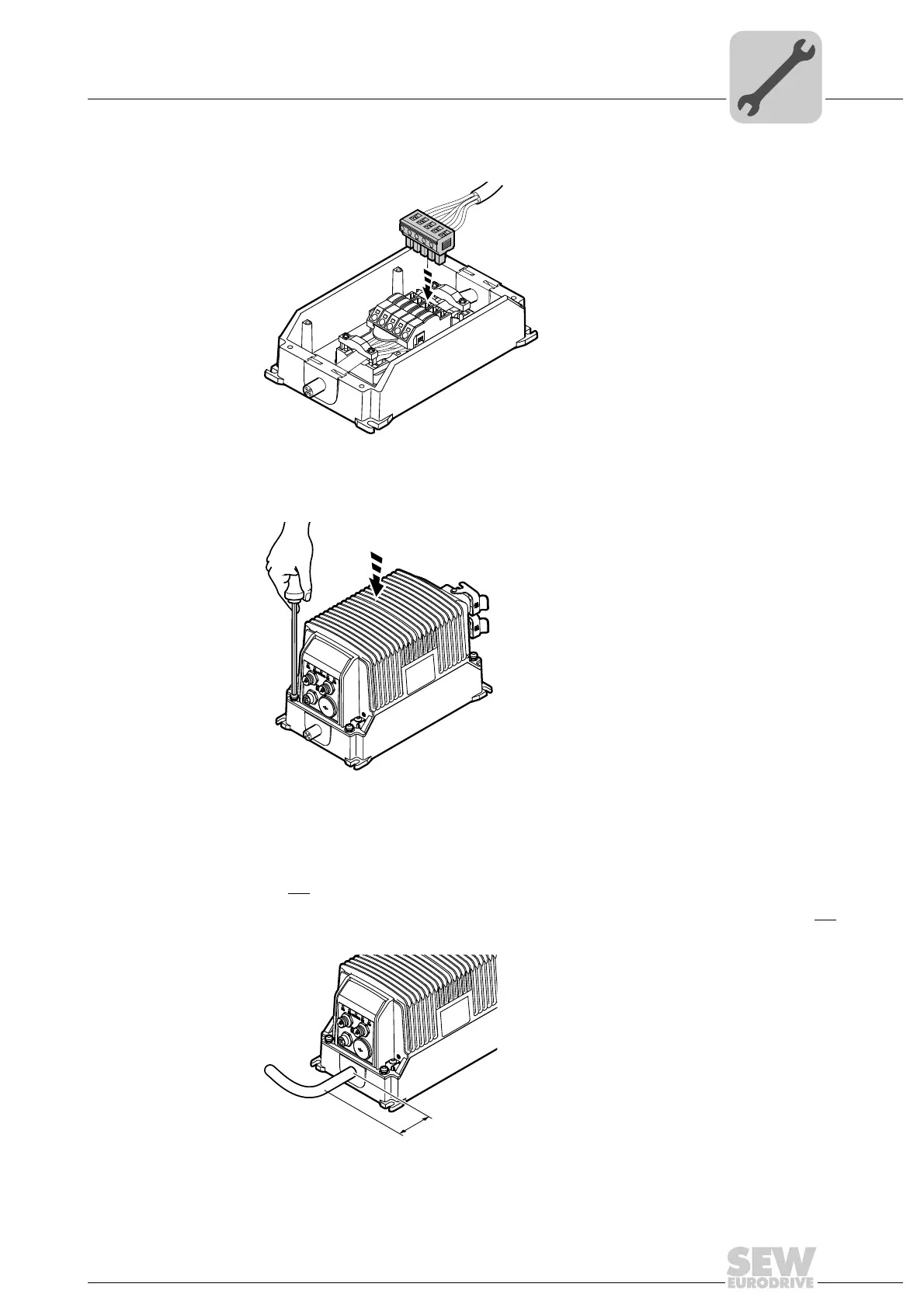

11.Plug in the line connector of the EBOX to the FieldPower
®
contact module.
12.Position the EBOX on the ABOX.
Screw on the EBOX with 4 screws (tightening torque: 2 Nm, 18 lb.in).
NOTICE Ingression of moisture or dust when bending the line cable.
Damage to the MOVIFIT
®
basic unit.
• Do not
bend the line cable for the first 50 mm from the unit.
The MOVIFIT
®
basic unit only meets the IP54 requirements if the line cable is not
bend within 50 mm of the unit.
2839881483
2839860363
3756680203
≥ 50
