Operating Instructions – MOVIFIT® basic
5
Power bus connection (line cable)
Electrical installation

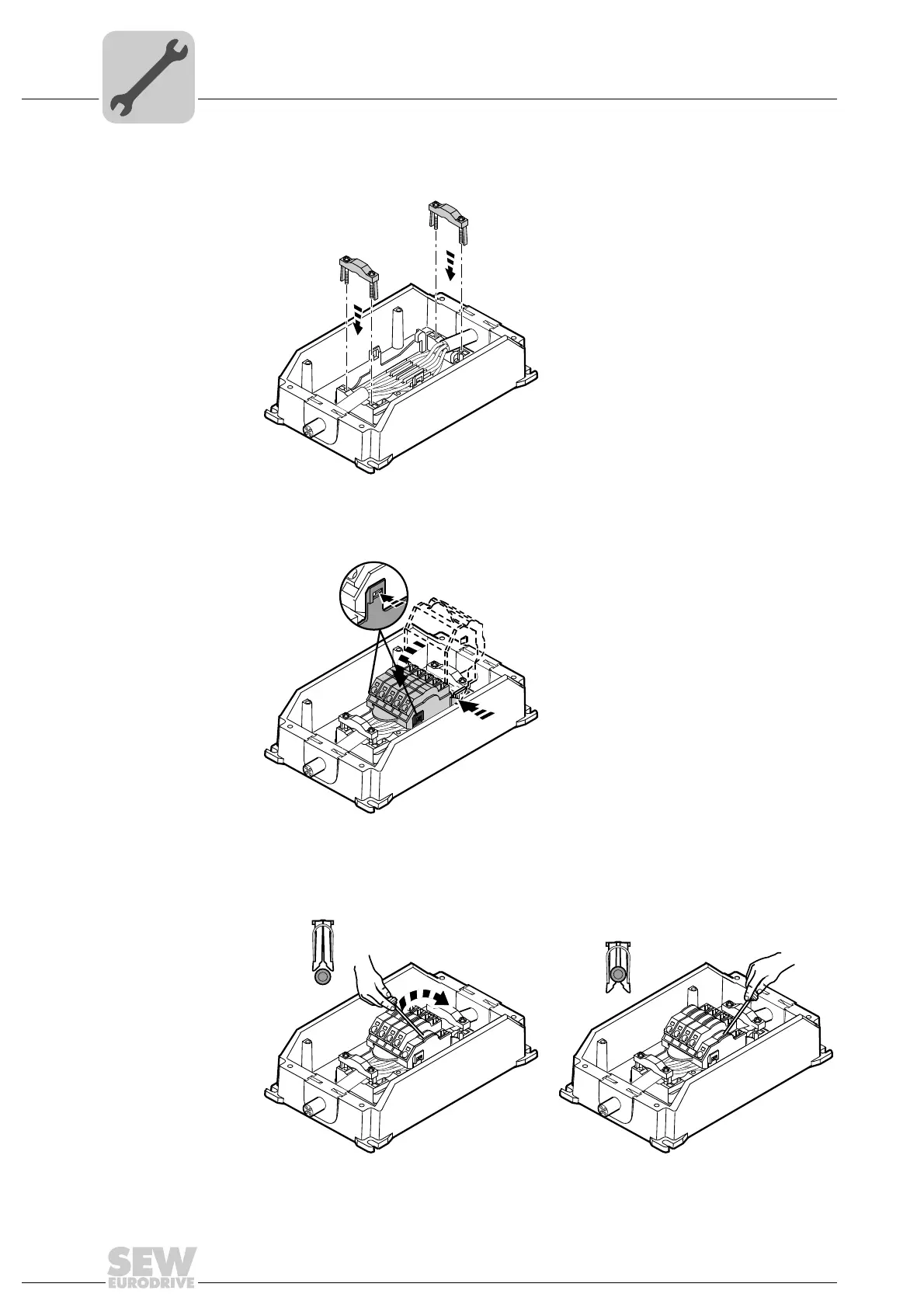

8. Screw the strain relief brackets to the ABOX and fix the line cable with the brackets
(tightening torque: 0.6 Nm, 5.3 lb.in).
9. Place the upper part of the contact module on the hinge hooks.
Tilt down the upper part of the contact module until it latches on both sides.
10.Use the screwdriver (blade width 3 – 3.5 mm) to lever all contacts of the insulation
displacement connector downwards.
