Operating Instructions – MOVIFIT® basic
21
5
Power bus connection (line cable)
Electrical installation

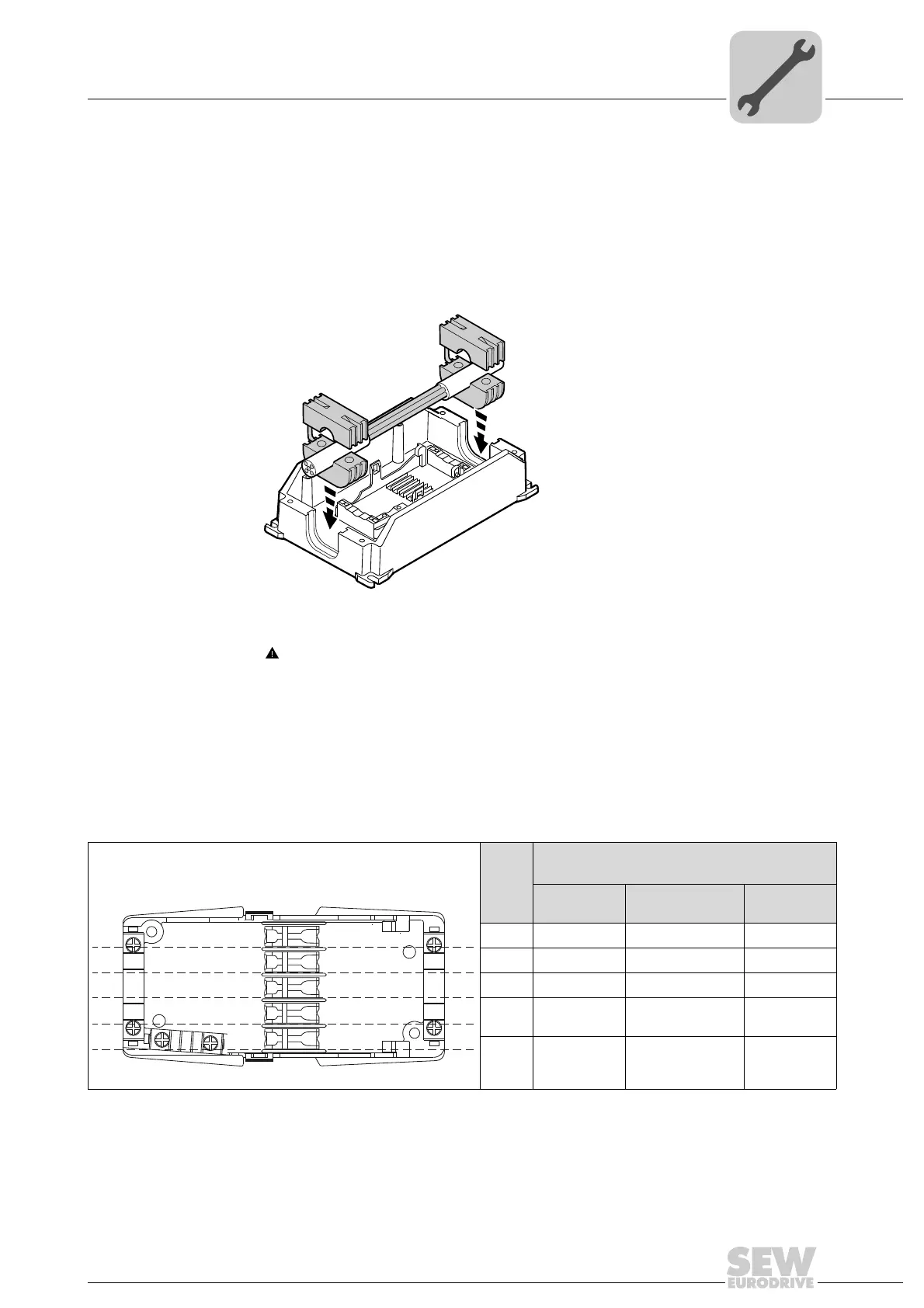

6. Fix the cable seals around the line cable.
NOTICE Ingression of moisture or dust due to incorrect cable seal.
Damage to the MOVIFIT
®
basic unit.
• Only use cable seals approved for the line cable diameter.
Insert the cable seals with the line cable in the recesses in the ABOX.
7. WARNING Risk of crushing due to wrong sense of rotation or damage due to re-
verse connection of phases.
Severe or fatal injuries, irreparable damage to the unit.
• Observe the following connection diagram.
• Prevent short circuits.
Insert the conductors of the line cable in the cable guides according to the following
wiring diagram:
2839871883
2839873803
Con-
duc-
tor
Conductor coloring / conductor marking
According to:
IEC 60757 UL 1277
TC-ER
UL 62
STOOW
L1
Brown Black or 1 Black
N
Blue White or gray –
L2
Black Black or 2 White
PE
Green/yel-
low Green/yellow Green
L3
Gray Black or 3 Red
