SEW-Eurodrive MOVIFIT basic - 5.1.3 Notes on PE connection

16
Operating Instructions – MOVIFIT® basic
5
Installation instructions
Electrical installation

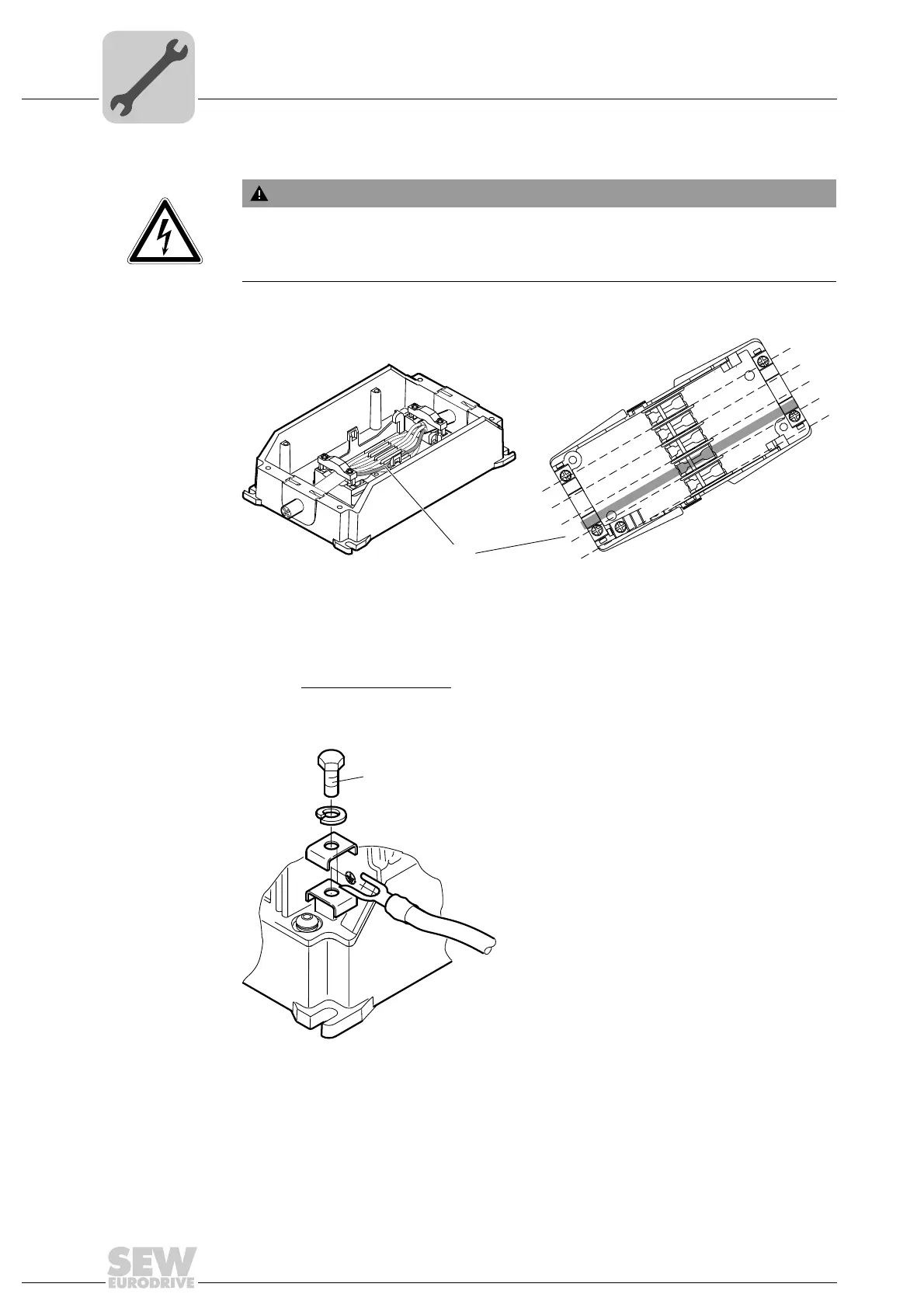

5.1.3 Notes on PE connection
PE connection in
the unit
Establish a PE connection in the unit.
PE connection on
the outside of the
housing
During normal operation of the MOVIFIT
®
basic inverter, earth-leakage currents
≥ 3.5 mA can occur. To meet the requirements of EN 61800-5-1, you must establish 2
PE connections.
Install a second PE conductor
with a cross section of at least the cross section of the
supply system cable:
WARNING
Electric shock due to incorrect connection of PE.
Severe or fatal injuries.
• Observe the following notes regarding PE connection.
3160365451
PE
L1
N
L2
PE
L3
BK or 1
BK or 2
WT or GY
GN/YE
GN/YE
GY
BK
BK
BU
BR
WT
unused
GN
RD
BK or 3
2816416395
M5
(2,0 – 2,5 Nm)
(18 - 21 lb.in)
