Connections of MOVIFIT
®
basic with binary control
Electrical installation

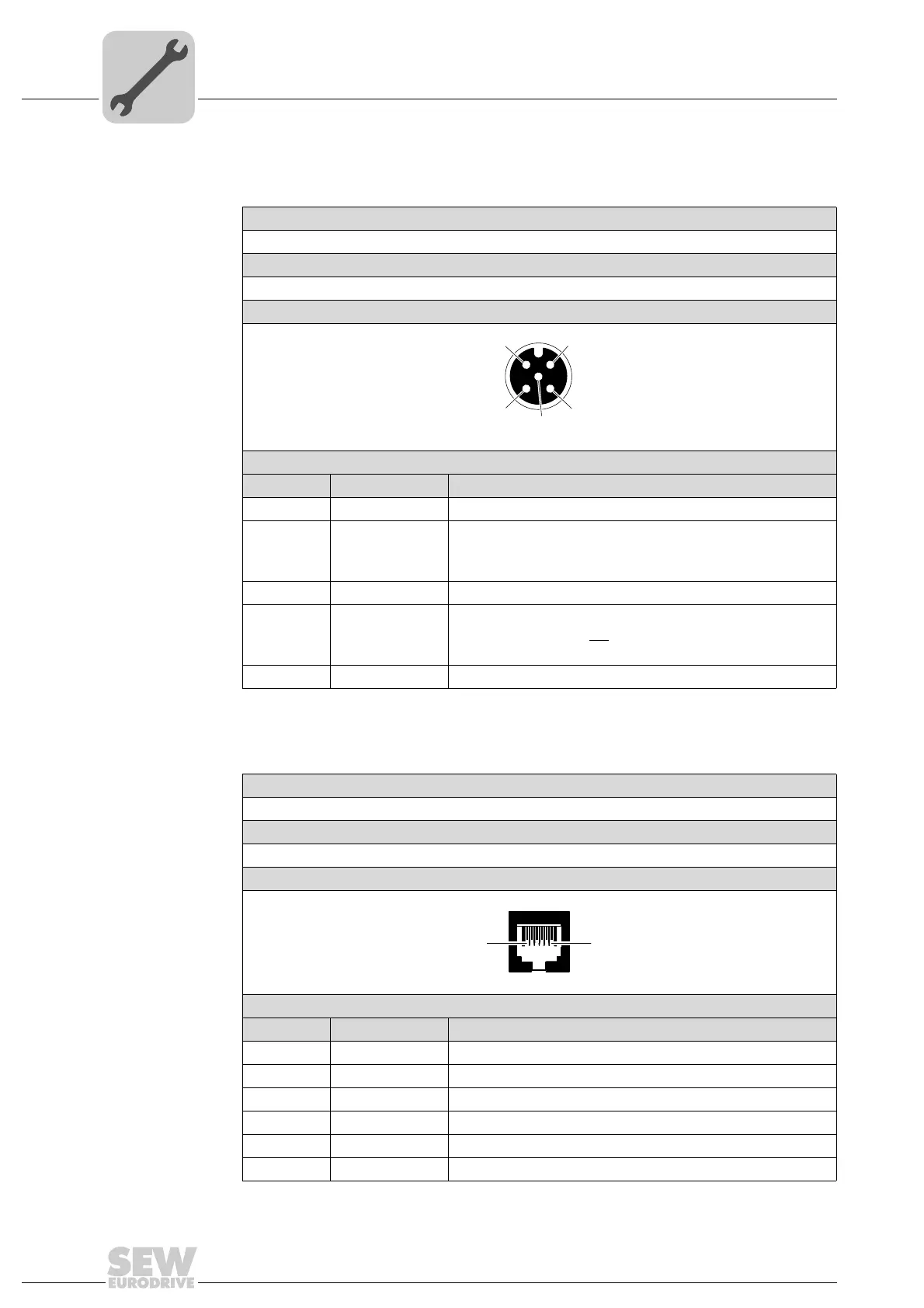

5.7.3 X13: Signal outputs 0 and 1 of MOVIFIT
®
basic
The following table informs about this connection:
5.7.4 X50: Diagnostic interface
The following table informs about this connection:
Function
Binary outputs 0 and 1
Connection type
M12, 5-pole, female, A-coded
Wiring diagram
2264816267
Assignment
No. Name Function
1 +24 V DC 24 V output
2 DO1 Binary output 1 (manual mode)
0: MOVIFIT
®
basic control via control signals
1: Manual control of MOVIFIT
®
basic
3 0V24 0V24 reference potential
4 DO0 Binary output 0 (ready signal)
0: MOVIFIT
®
basic is not ready
1: MOVIFIT
®
basic is ready
5 PE Equipotential bonding/protective earth conductor
1
4
3
2
5
Function
Diagnostics and programming interface
Connection type
RJ11 (6P6C)
Wiring diagram
3163123211
Assignment
No. Name Function
1 n. c. Not connected
2 RS+ RS-485 data line (+)
3RS − RS-485 data cable (–)
4 +24 V DC 24 V output for keypad
5 0V24 0V24 reference potential for keypad
6 n. c. Not connected
1
6
