Sharp MX-M266N

MX-M316N DISASSEMBLY AND ASSEMBLY 10 – 10

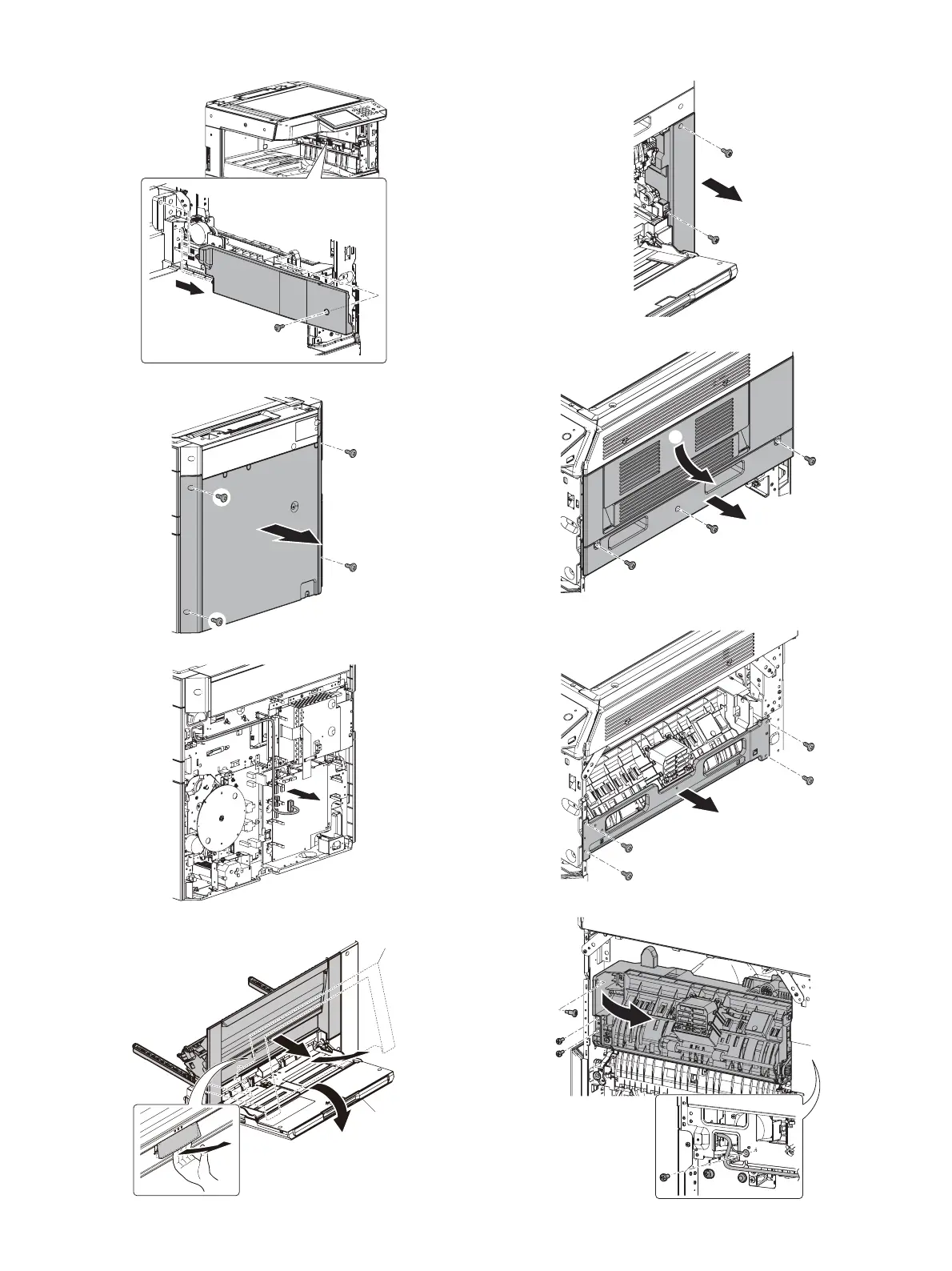

5) Remove the upper paper exit cover.
6) Remove the rear cabinet.
7) Remove the harness of the First paper exit unit.
8) Open the manual paper feed tray, and, remove the right door.
9) Remove the right sub cabinet.
10) Remove the right cover bottom and the right cover door.
11) Remove the right front rear stay.
12) Remove the screws, and remove the first paper exit unit.
(1)
(2)
(3)
Ĭ
ĭ
