MX-M316N DISASSEMBLY AND ASSEMBLY 10 – 11

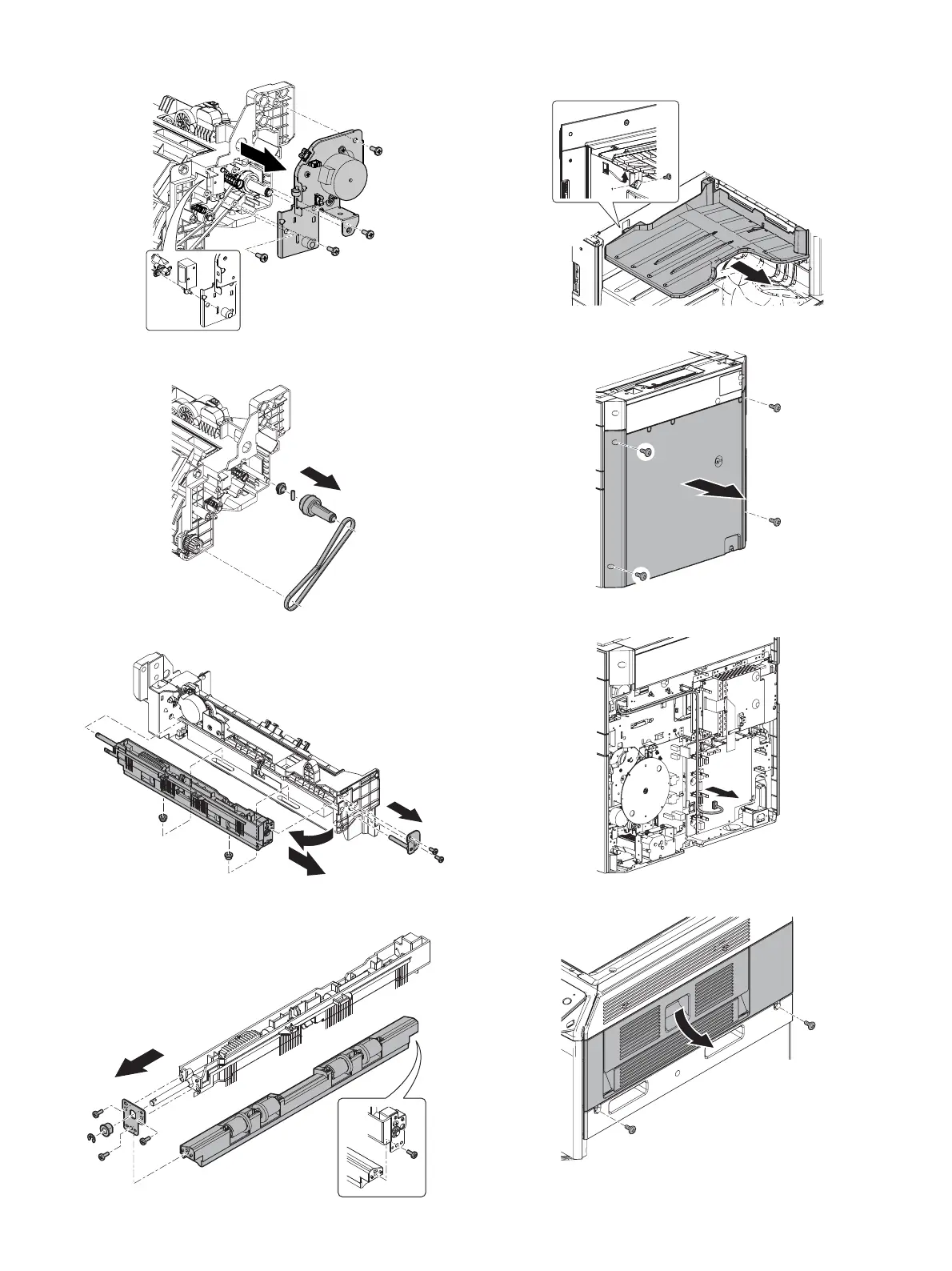

13) Remove the paper exit drive unit.
14) Remove the belt, the shift gear pulley, the SP pin and the bear-
ing.
15) Remove the delivery roller holder and the shifter PG unit. 外す
16) Remove the shifter frame unit R, and remove the shifter bot-
tom frame unit.
(4) Second paper exit unit
1) Remove the job separator.
2) Remove the rear cabinet.
3) Remove the harness of the second paper exit unit.
4) Remove the right cover bottom and the right cover door.
