H792x 3G/4G Router User Manual

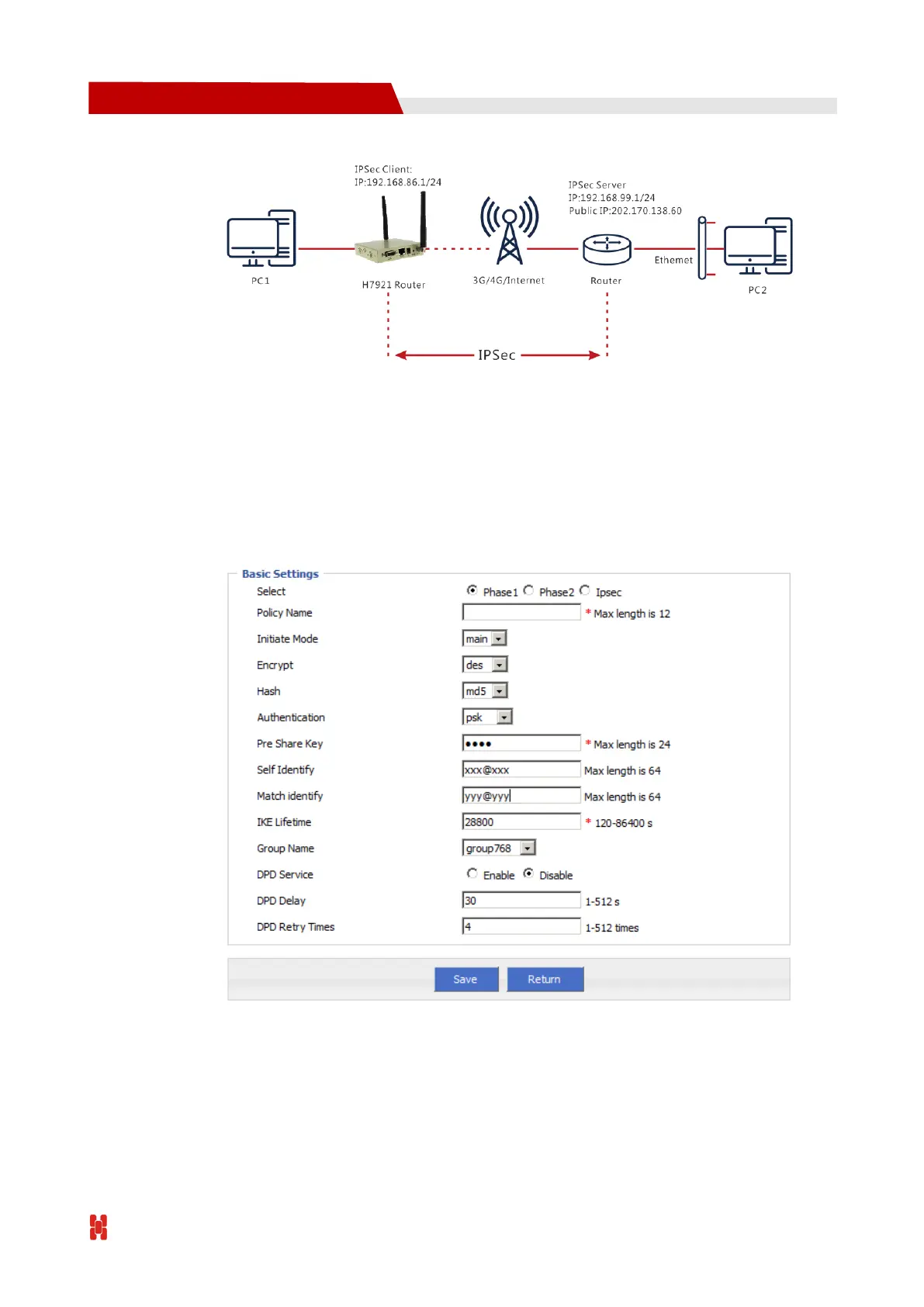

Figure 6-2 Build IPSec
PC1 connect H792x then build IPSEC link by VPN function of H792x with company router.
I assume using IPSec tunnel mode, H792x end local network 192.168.86.1/24, company
server end 192.168.99.1/24, by IPSEC, two LAN could communicate.
Parameter Setting
Figure 6-3 IPSec Phase 1
