H792x 3G/4G Router User Manual

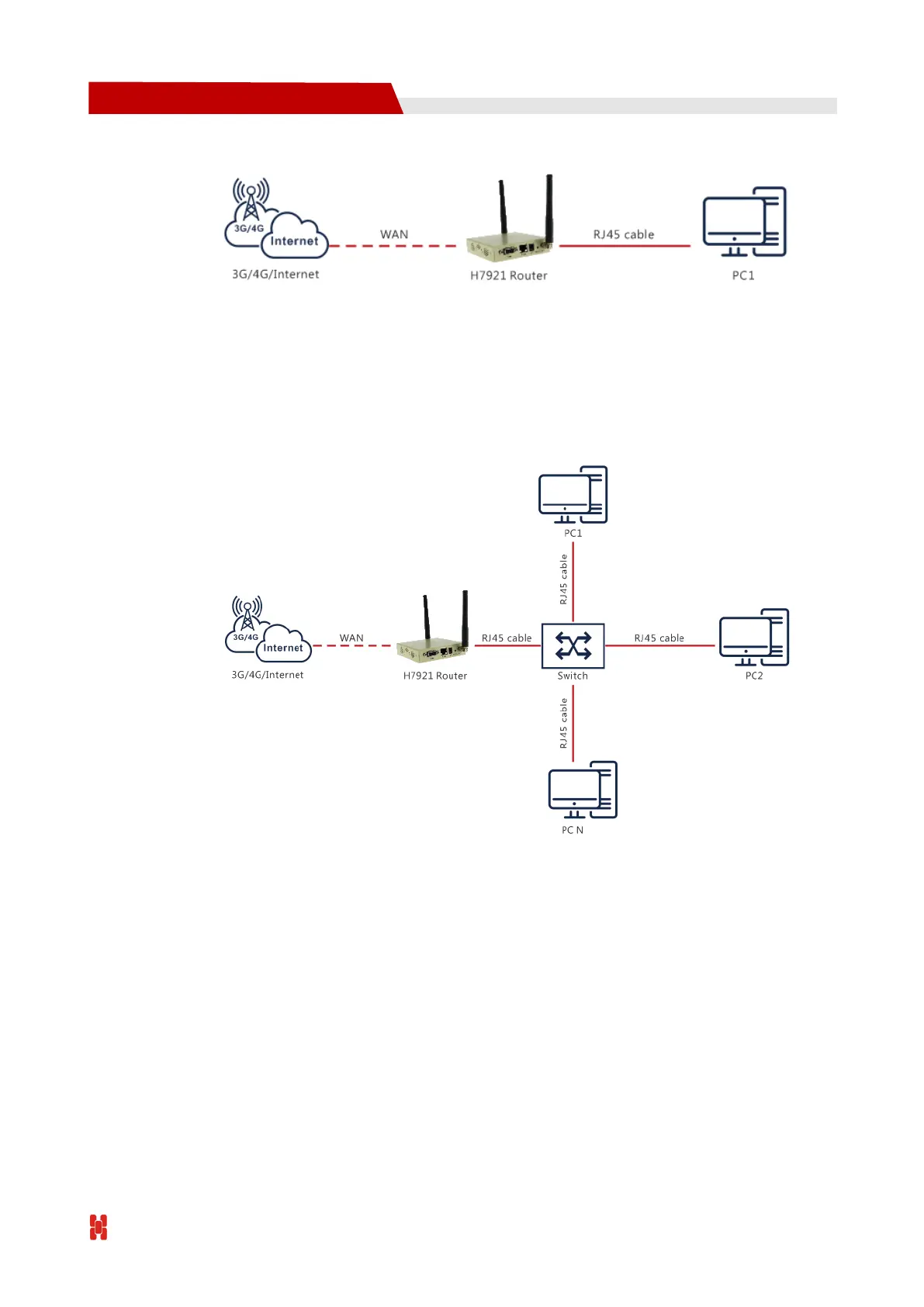

Figure 3-3 Single Equipment Direct Connection
Multiple equipment local area network connection
H792x 3G/4G Router supports to simultaneously connect to multiple equipments through
a switch (such equipments may not be in the same network segment) as shown in the
figure below.
Figure 3-4 Multiple Equipments Connection
3.2.3 Serial port connection.
When you connect H792x 3G/4G Router to serial port on lattop or ther deivec. To do this
you need a serial port or RJ45 cable, this cable is optional. One end connect to computer
serial port, other end connect the console port on H792x.
